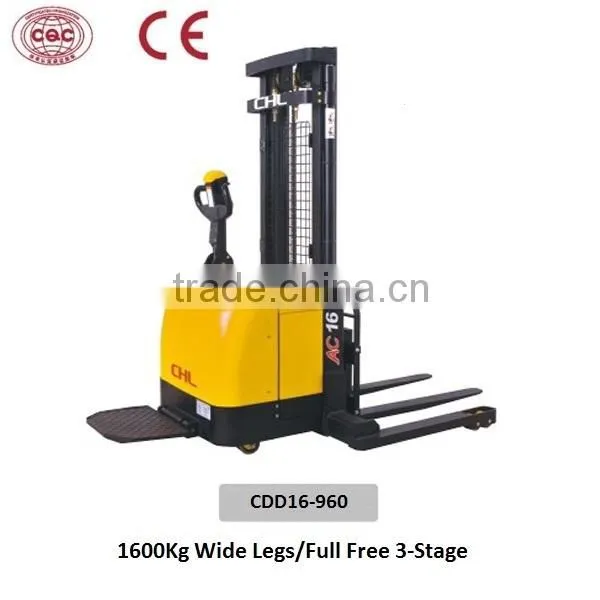

Help Center1.6 Ton Electric Pallet Stacker With Full-free 3-stage
Related Products
-
1.5 Ton Hand Stacker of Straddle LegsUS$ 500 - 600MOQ: 1 Unit -
2.0 Ton Hand Stacker of Straddle LegsUS$ 500 - 600MOQ: 1 Unit
-
1.5 Ton Semi Electric Straddle StackerUS$ 900 - 1,000MOQ: 1 Unit
-
1.5 Ton Hydraulic StackerUS$ 500 - 600MOQ: 1 Unit
-
2.0 Ton Semi Electric Straddle StackerUS$ 900 - 1,000MOQ: 1 Unit
Specifications
Electric pallet stacker1. Power steering system(EPS)
2. With AC driving motor
3. With CURTIS 1230 controller
Product Description
Stacker Advantages
- Powerful
1.Capacity 1.2T, meeting demands in goods transit and lift.
2.AC drive system offers quick response, accurate cotrol and longer service time.
3.Easy-touch emergency plug mounted at up-right side in case of emergency happens.
4.Anti-roll back available as standard to prevent uncontrolled travel speed or roll back on ramps happening in working.
5.The stacker can handling two pallets one time, efficient .
- Delicacy
1.Brief, Elegant design of appearance, with colors optional.
2.Delicacy inner and outer structure design with excellent arrangement.
3.World-class hydraulic power pack,with low noise, few vibration and excellent leak tightness.
4.Special design of fork, with stiffener, be more firm .
5.Sideway battery design for easy battery replacement.
Stacker Specifications
| Feature | ||
| Model | CDD16 | |
| Configuration No. | 960 | |
| Type | Wide legs | |
| Mast type | Full free 2-stage | |
| Load capacity | kg | 1600 |
| Load center | mm | 600 |
| Wheel base | mm | 1375 |
| Operating type | Rider / Pedestrian | |
| Wheel type | PU | |
| Wheel quantity | Driving wheel1/Balance wheel2/Load wheel4 | |
| Standard lift height | mm | 4500 |
| Lowered fork height | mm | 55 |
| Fork size(Length/width/thickness) | mm | 1070/100/40 |
| Overall length | mm | 2073/2493 |
| Overall width | mm | 1470 |
| Max. extend height | mm | 5000 |
| Mast lowered height | mm | 2085 |
| Min. Turning redius | mm | 1630/2040 |
| Min. Aisle width for pallets 800x1200 | mm | 2230/2625 |
| Min. Asile width for pallets 1000x1200 | mm | 2260/2650 |
| Min. ground clearance | mm | 50 |
| Travel Speed,laden/unladen | km/h | 5/5 |
| Lift speed,laden/unladen | mm/s | 130/230 |
| Travd speed,laden/unladen | mm/s | 130/230 |
| Gradeability,laden/unladen | % | 5/7 |
| Motor | KW | Drive motor AC 1.5 / Lift motor DC3 / Steering motor DC 0.15 |
| Battery voltage | V | 24 |
| Battery capacity | Ah | 280 |
| Brake | Electromagnetic / Regenetative | |
| Controller | CURTIS 1230 | |
| Battery weight | Kg | 235 |
| Service weight with Battery | Kg | 1648 |
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift
parts.
Depends on 7 years experience and profession on the Chinese export business,any customer who have the business with us and also any other Chinese suppliers.we can be the position of supplying ONE-STOP-SHOP export service.Our nearest export port is Shanghai,and Ningbo.Depends on 7 years experience and profession on the Chinese export business, any customer
who have the business with usand also any other Chinese suppliers,We can be the main exporter who is in charger of
connecting other suppliers, organizing the shipment,LCL load,one B/L supply and other export issue service.
