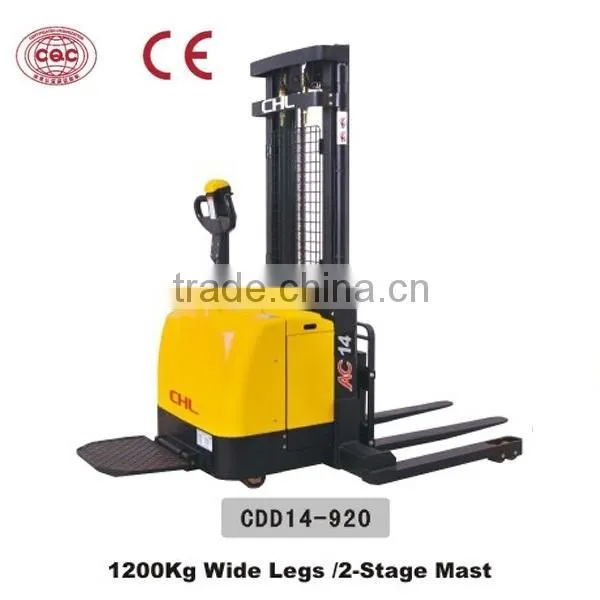

Help Center1.4T Electric Pallet Stacker With 2-stage STD
Related Products
-
1.6 Ton Electric Pallet Stacker With 2-stage STD.US$ 4,000 - 5,000MOQ: 1 Unit -
1.0 Ton Semi-electric StackerUS$ 900 - 1,000MOQ: 1 Unit
-
1.6 Ton Electric Pallet Stacker With 2-stage STD.US$ 4,000 - 5,000MOQ: 1 Unit
-
1.6 Ton Electric Pallet Stacker With Full-free 3-stageUS$ 4,000 - 5,000MOQ: 1 Unit
-
1.5 Ton Hand Stacker of Straddle LegsUS$ 500 - 600MOQ: 1 Unit
Specifications
Electric pallet stacker1. Power steering system(EPS)
2. With AC driving motor
3. With CURTIS 1230 controller
Product Description
Stacker Advantages
- Powerful
1.Capacity 1.2T, meeting demands in goods transit and lift.
2.AC drive system offers quick response, accurate cotrol and longer service time.
3.Easy-touch emergency plug mounted at up-right side in case of emergency happens.
4.Anti-roll back available as standard to prevent uncontrolled travel speed or roll back on ramps happening in working.
5.The stacker can handling two pallets one time, efficient .
- Delicacy
1.Brief, Elegant design of appearance, with colors optional.
2.Delicacy inner and outer structure design with excellent arrangement.
3.World-class hydraulic power pack,with low noise, few vibration and excellent leak tightness.
4.Special design of fork, with stiffener, be more firm .
5.Sideway battery design for easy battery replacement.

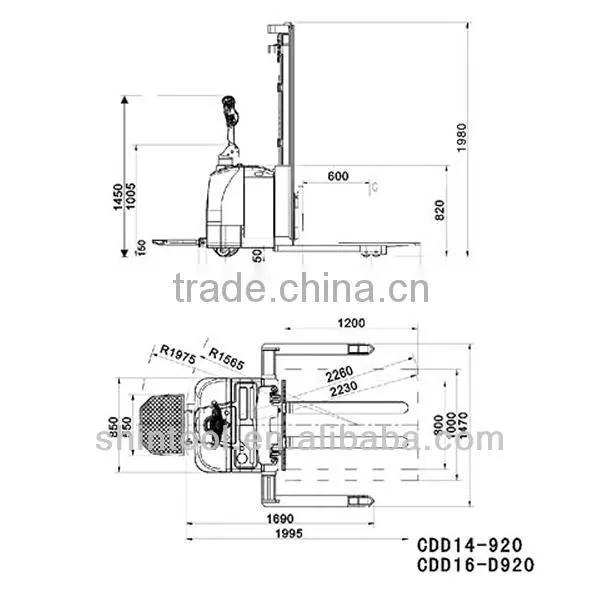

Stacker Specifications
| Model | CDD14 | |
| Configuration No. | 920 | |
| Type | Wide legs | |
| Mast type | 2-Stage STD | |
| Load capacity | kg | 1400 |
| Load center | mm | 600 |
| Wheel base | mm | 1310 |
| Operating type | Rider / Pedestrian | |
| Wheel type | PU | |
| Standard lift height | mm | 3000 |
| Lowered fork height | mm | 55 |
| Fork size(Length/width/thickness) | mm | 1070/100/40 |
| Overall length | mm | 2005/2425 |
| Overall width | mm | 1470 |
| Max. extend height | mm | 3500 |
| Mast lowered height | mm | 1980 |
| Min. Turning redius | mm | 1565/1975 |
| Min. Aisle width for pallets 800x1200 | mm | 2230/2580 |
| Min. Asile width for pallets 1000x1200 | mm | 2260/2585 |
| Min. ground clearance | mm | 50 |
| Gradeability,laden/unladen | % | 5/7 |
| Battery voltage | V | 24 |
| Battery capacity | Ah | 280 |
| Brake | Electromagnetic / Regenetative | |
| Controller | CURTIS 1230 | |
| Battery weight | Kg | 235 |
| Service weight with Battery | Kg | 1300 |
