Help Center1.0 Ton Hand Stacker of Straddle Legs
Related Products
-
2.0 Ton Manual StackerUS$ 500 - 600MOQ: 1 Unit -
1.2T Electric Pallet Stacker With 2-stage STD.US$ 4,000 - 5,000MOQ: 1 Unit
-
1.2T Electric Pallet Stacker With 2-stage STD.US$ 4,000 - 5,000MOQ: 1 Unit
-
1.4T Electric Pallet Stacker With 2-stage STDUS$ 4,000 - 5,000MOQ: 1 Unit
-
1.6 Ton Electric Pallet Stacker With 2-stage STD.US$ 4,000 - 5,000MOQ: 1 Unit
Specifications

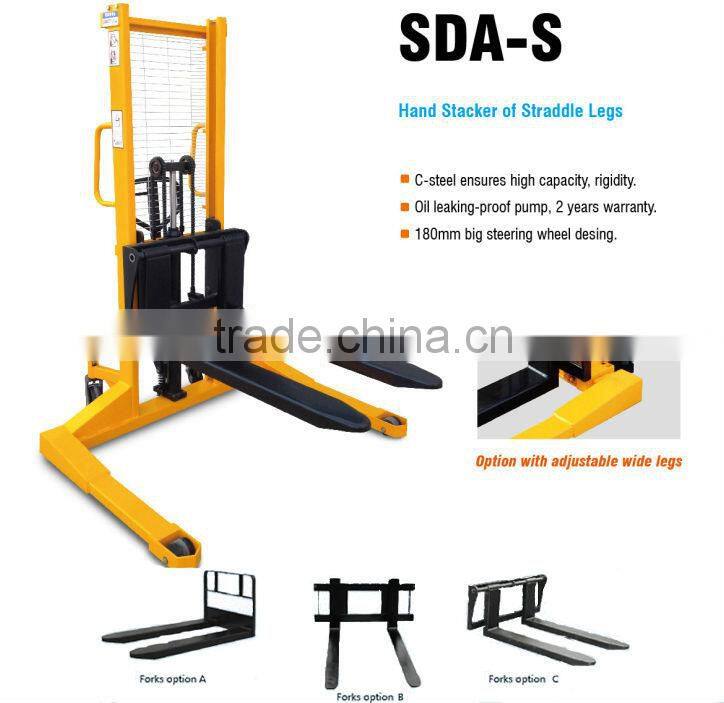

Hand Stacker of Straddle legs1.Load capacity:1000kg,
2.Max. lift height:1600mm,2500mm,3000mm
Hand Stacker of Straddle legs Advantages
1. C-steel ensures high capacity and rigidity.
2. Oil leaking-proof pump, 2 years warranty.
3. 180mm big steering wheel design.
4. Option with adjustable wide legs.
Hand Stacker of Straddle legs Specifications
| Model | SDAS10 | |
| Rated capacity | kg | 1000 |
| Load center | mm | 500 |
| Front wheel | mm | Φ80×70 |
| Rear wheel | mm | Φ180×50 |
| Lifting height | mm | 1600/2500/3000 |
| Fork lowered height | mm | 70 |
| Fork length | mm | 900/1070/1150 |
| Overall length | mm | 1280 |
| Most lowered height | mm | 2080/1830/2080 |

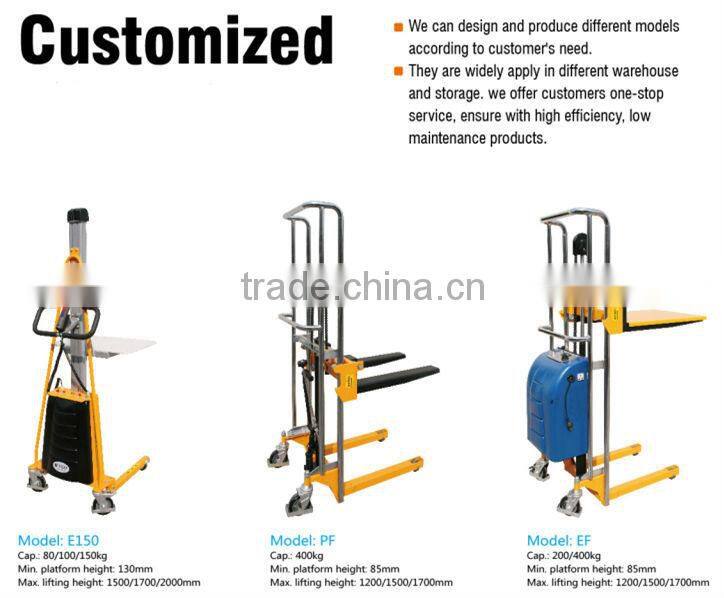

Customized
1. We can design and produce different models according to customer's need.
2. They are widely apply in different warehouse and storage. We offer customers one-stop-shop service, ensure
with high efficiency, low maintenance products.

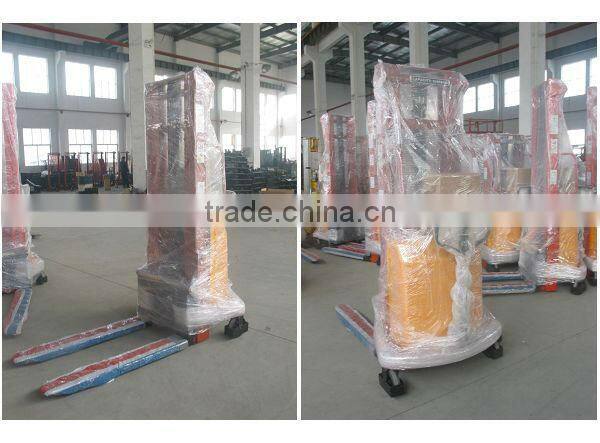

Packing & Shipping
Each set of product would be packed in standard way. New, clean and protective.
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift
parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service. Our nearest export
port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Hand Stacker of Straddle legs Warranty details
SHINTOOL provide the warranty period to QDA Electric Stacker, for a period of 1year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product
which proved to be defective in material or workmanship under proper operation.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send
quotation for the new replacement parts. Technical questions are welcome to SHINTOOL, SHINTOOL will reply in 24 hours.
