China Supplier High Quality and Best Price Forged Socket Pipe Fittings
- Shanghai;Ningbo;Or Any chain port
- T/T
You May Like
-
Tube Master Jetsun ASTM A53 RIGID GALVANIZED STEEL PIPE 3 1/2 INCH , Hot Dipped Galvanized Rigid Steel Conduit Pipe
-
Tube Master Jetsun Steel Supplier Pipe Best Sale Schedule 40 Hot Dip Galvanized Steel Pipe
-
Tube Master Jetsun Seamless Pipe Carbon Steel & Black Steel & Schedule 40 Steel Pipe
-
Tube Master Jetsun Hot Dipped Seamless Galvanized Steel Pipe Price / Seamless Steel Pipe
-
China Assessed Vendor Tube Master Jetsun Pump Pipe Tube/8 Steel Tube
-
China Steel Supplier Tube Master Jetsun Pipe Tube Api 5l X52 Pipes for Mining Machine Conveyor System
Product Details
| Material | Other, Carbon Steel, Carbon Steel ,Stainless Steel , Alloy Steel , | Technics | Forged | |
| Type | Other, Elbow, Elbow , Tee , Cross ,Unio | Brand Name | Jetsun | |
| Connection | Other, Welding, Threaded,butt-welding | Shape | Equal | |
| Head Code | Other, round |
Product Description

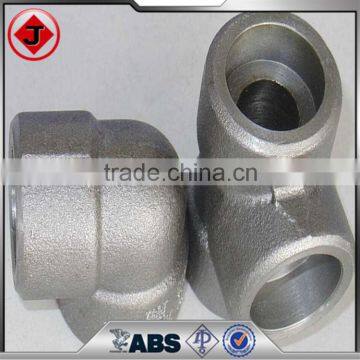

Socket Welding Pipe Fitting
1 Product Standard & Material
Standard :
ASME B16.11,HG/T 21634-1996,MSS SP-83,MSS SP -79 ,
MSS SP-97,MSS SP-95,GB/T 14383-2008,SH/T3410-96,GD2000,GD87,40T025-2005.
Material :
Carbon steel : Q235, 20# , A105;
Stainless steel : 304 ,304L,316,316L,321,00Cr17Ni14Mo2;
Alloy Steel : 15CrMo,1Cr5Mo,16Mn,12Cr1MoV,F11,F22,10CrMo910 and so on
Non-Standard product can be manufactured according to customer darwing design
2 Product Paremeters Sheet
| Nominal pipe-spccificationD(in) | socket inside diameter di min | (min)socket dept | Diameter of watter way d2 | Socket thickness Cave | centre to socket bottom | cap thickness K(min) | |||||||||||
| 90℃ elbow,tee,crossA | 45℃ elbow | ||||||||||||||||
| 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | |||
| 1/8 | 10.65 | 10 | 6.1 | 3.2 | __ | 3.2 | 3.95 | __ | 11 | 11 | __ | 8 | 8 | __ | 5 | 6.5 | __ |
| 1/4 | 14.1 | 10 | 8.5 | 5.6 | __ | 3.8 | 4.6 | __ | 11 | 14 | __ | 8 | 8 | __ | 5 | 6.5 | __ |
| 3/8 | 17.55 | 10 | 11.8 | 8.4 | __ | 4 | 5.05 | __ | 14 | 16 | __ | 8 | 11 | __ | 5 | 6.5 | __ |
| 1/2 | 21.7 | 10 | 15 | 11 | 5.6 | 4.65 | 5.95 | 9.35 | 16 | 19 | 25 | 11 | 13 | 16 | 6.5 | 8 | 11 |
| 3/4 | 27.05 | 13 | 20 | 14.8 | 10.3 | 4.9 | 6.95 | 9.8 | 19 | 22 | 29 | 13 | 14 | 19 | 6.5 | 8 | 25 |
| 1 | 33.8 | 13 | 25.9 | 19.9 | 14.5 | 5.7 | 7.9 | 11.4 | 22 | 27 | 32 | 14 | 18 | 21 | 9.5 | 11 | 14 |
| 1 1/4 | 42.55 | 13 | 34.2 | 28.7 | 22 | 6.05 | 7.9 | 12.15 | 27 | 32 | 35 | 18 | 21 | 22 | 9.5 | 11 | 14 |
| 1 1/2 | 48.65 | 13 | 40.1 | 33.2 | 27.2 | 6.35 | 8.9 | 12.7 | 32 | 38 | 38 | 21 | 25 | 25 | 11 | 12.5 | 16 |
| 2 | 61.1 | 16 | 51.7 | 42.1 | 37.4 | 6.95 | 10.9 | 13.85 | 38 | 41 | 54 | 25 | 29 | 29 | 12.5 | 16 | 19 |
| 2 1/2 | 73.8 | 16 | 61.2 | __ | __ | 8.75 | __ | __ | 41 | 57 | __ | 29 | 32 | __ | 16 | 19 | __ |
| 3 | 84.8 | 16 | 76.4 | __ | __ | 9.5 | __ | __ | 57 | 64 | __ | 32 | 35 | __ | 19 | 22 | __ |
| 4 | 115.45 | 16 | 100.70 | __ | __ | 10.7 | __ | __ | 66 | __ | __ | 41 | __ | __ | 22 | 28.5 | __ |
3 Packing & Shipping
1) Packing Method :
Normal packing : plastic film or bubble paper wrapped on product's surface , pack with paper /wooden case or on fumifation plywood pallet .
Customized as customers request .
2) Shipping Way :
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
We have established the good business relationship with many famous domestic manufacturers and also supply the products to numbers of well-known international company. All products are well-reputed by customers from all over the world, for example, our company has been qualified to be a key supplier by Keppel Corporation.
Besides, we also offer additional services as per customers’ request:
A. Sourcing matching products which are related to steel pipe and pipe fittings.
B. Tracing all products after sales by our professional team.
C. Offering professional suggestions to achieve your cost effective aim when you choose the material of the product.
