Top Quality ZXQGG Precision Sine Tool Vise Made in China
- Qingdao/xingang
- Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | ZXQGG |
Product Description
Specifications
ZXQGG precision sine tool vise:1.material:high quality steel
2.surface hardness:HRC58-62
3.parallelism:0.005mm/100mm

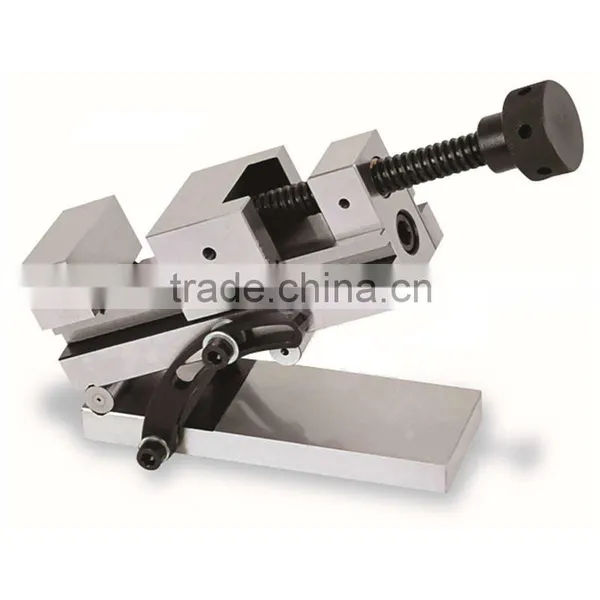

ZXQGG precision sine tool vise:
1. the goods is made of high quality steel,carburized to surface hardness is HRC58-62
2.Parallelism is 0.005mm/100mm, squareness is 0.005mm
3.available inspecting angles and processing working with angle
4.adjustable angle range is 0-45

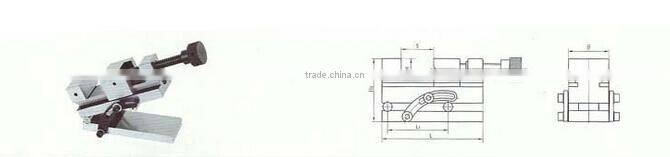

| model no. | B mm | H mm | H1 mm | Smax mm | L mm | L1 mm | L1 in |
| ZXQGG50 | 50 | 25 | 86.6 | 60 | 140 | 100 | 4 |
| ZXQGG63 | 63 | 32 | 94.6 | 85 | 175 | 5 | |
| ZXQGG73 | 73 | 35 | 111 | 90 | 190 | ||
| ZXQGG80 | 80 | 40 | 121 | 95 | 200 | ||
| ZXQGG88 | 88 | 40 | 125 | 120 | 235 | ||
| ZXQGG100 | 100 | 45 | 139.2 | 125 | 245 | ||
| ZXQGG125 | 125 | 50 | 154.2 | 160 | 285 | 200 | |
| ZXQGG150 | 150 | 50 | 160.9 | 190 | 330 | 200 | 10 |
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for many years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
