Specifications
ZXQKG precision sine tool vise:1.material:high quality steel
2.surface hardness:HRC58-62
3.parallelism:0.005mm/100mm

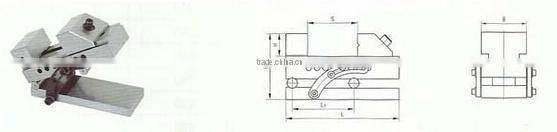

ZXQKG precision sine tool vise:
1. the goods is made of high quality steel,carburized to surface hardness is HRC58-62
2.Parallelism is 0.005mm/100mm, squareness is 0.005mm
3.available inspecting angles and processing working with angle
4.adjustable angle range is 0-45
| model no. |
B mm |
H mm |
H1 mm |
Smax mm |
L mm |
L1 mm |
L1 in |
| ZXQKG50 | 50 | 25 | 79.36 | 65 | 140 | 100 | 4 |
| ZXQKG63 | 63 | 32 | 92.36 | 85 | 175 | 5 | |
| ZXQKG73 | 73 | 35 | 104 | 100 | 190 | ||
| ZXQKG80 | 80 | 40 | 117 | 100 | 200 | ||
| ZXQKG88 | 88 | 40 | 122 | 125 | 235 | ||
| ZXQKG100 | 100 | 45 | 134.08 | 125 | 245 | ||
| ZXQKG125 | 125 | 50 | 144.08 | 160 | 285 | 200 | |
| ZXQKG150 | 150 | 50 | 150.9 | 200 | 330 | 200 | 10 |
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for many years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
