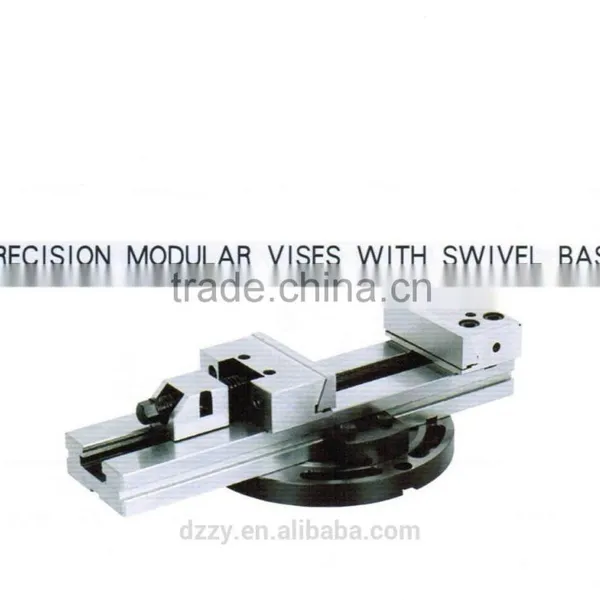

Precision Modular Vise With Swivel Base

FOB Price

US$ 220 - 1,010 / Piece

1 Piece(Min. Order)

Port Qingdao/xingang
Payment TermsMoney Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	zhongyi
Model Number	GT-300D-II

Product Description

Specifications

precision modular vise with swivel base:
1.material:high quanlity steel
2.parallelism 0.005/100mm
3.squareness:0.005mm

precision modular vise with swivel base:

1. the goods is made of high quality steel,carburized to surface hardness is HRC58-62

2. the parallelism is 0.005mm/100mm, the squareness is 0.005mm.

3. it has interchangeable base,fixed/movable jawsit is quickly to clamp and easy to opetate

4. it is widely used on machining center and other precision machine tools

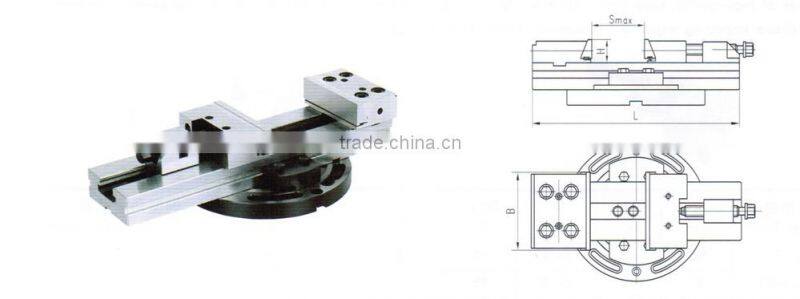

*model no.*	B mm	H mm	*Smax* mm	L mm	*Clamping force* KG
*GT100-II*	*100*	30	*100*	*270*	*3000*
*GT125-II*	*125*	40	*150*	*345*	*3000*
*GT150A-II*	*150*	50	*200*	*420*	*5000*
*GT150B-II*	*150*	50	*300*	*520*	*5000*
*GT150C-II*	*150*	50	*400*	*620*	*5000*
*GT175A-II*	*175*	60	*200*	*455*	*6000*
*GT175B-II*	*175*	60	*300*	*555*	*6000*
*GT175C-II*	*175*	60	*400*	*655*	*6000*
*GT175D-II*	*175*	60	*500*	*755*	*6000*
*GT175E-II*	*175*	60	*600*	*855*	*6000*
*GT200A-II*	*200*	65	*200*	*495*	*10000*
*GT200B-II*	*200*	65	*300*	*595*	*10000*
*GT200C-II*	*200*	65	*400*	*695*	*10000*
*GT200D-II*	*200*	65	*500*	*795*	*10000*
*GT200E-II*	*200*	65	*600*	*895*	*10000*
*GT300A-II*	*300*	80	*200*	*535*	*12000*
*GT300B-II*	*300*	80	*300*	*635*	*12000*
*GT300C-II*	*300*	80	*400*	*735*	*12000*
*GT300D-II*	*300*	80	*500*	*835*	*12000*
*GT300E-II*	*300*	80	*600*	*935*	*12000*
*GT300F-II*	*300*	80	*700*	*1035*	*12000*
*GT300G-II*	*300*	80	*800*	*1135*	*12000*

Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.

Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.

Our Services and reputation: we have been the supplier at Alibaba for many years.

We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
