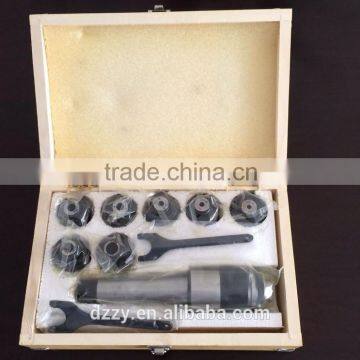

J41 Tapping Chuck:
This device is consisted of a tap chuck and tap collets.The chuck have compensating device for thread pitch.The tap collet has overload torque protection device,which avoid tap breaking.In order to get different release torques for different diamater taps,just adjust nuts.This devices is most applicable to tap working on drill,lathe,boring machine and CNC machin center etc.

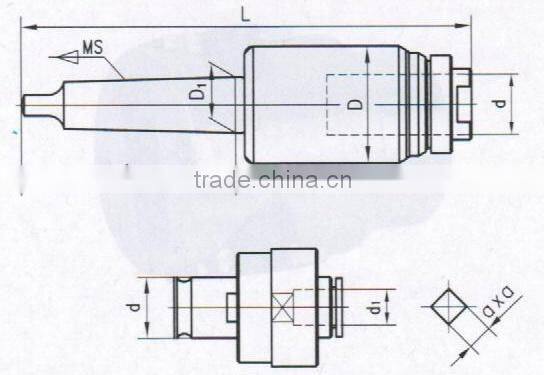

| order no. | shank taper | D | D1 | d | L1 | L | tapping range | Torque Nm | Wt(kg) |
| J4112-MS2 | MS2 | 46 | 17.780 | 19 | 75 | 171.5 | M3-M12 | 25 | 1.08 |
| J4112-MS3 | MS3 | 23.825 | 94 | 191 | 1.28 | ||||
| J4112-MS4 | MS4 | 31.267 | 117.5 | 216 | 3.00 | ||||
| J4116-R8 | R8 | 31.75 | 101.6 | 193.6 | M3-M16 | 46.3 | 1.71 | ||
| J4116-MS2 | MS2 | 17.780 | 75 | 171.5 | 1.08 | ||||
| J4116-MS3 | MS3 | 23.825 | 94 | 191 | 1.61 | ||||
| J4116-MS4 | MS4 | 31.267 | 117.5 | 216 | 3.00 | ||||
| J4124-MS3 | MS3 | 66 | 23.825 | 30 | 94 | 227 | M12-M24 | 150 | 3.20 |
| J4124-MS4 | MS4 | 31.267 | 117.5 | 252 | 3.60 | ||||
| J4124-MS5 | MS5 | 44.399 | 149.5 | 284 | 4.50 |
| 12TYPE Tapping range | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
| 67 d1xa(mm) | 4x3 | 4x3 | 5x3.8 | 6x5 | 6x5 | 8x6.3 | 9x7.1 |
| 83 d1xa(mm) | 2.24x1.8 | 3.15x2.5 | 4x3.15 | 4.5x3.55 | 6.3x5 | 8x6.3 | 9x7.1 |
| 24Type Tapping range | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
| 67 d1xa(mm) | 9x7.1 | 10.5x8 | 12.5x10 | 14x11 | 16x12 | 18x14.5 | 20x16 |
| 83 d1xa(mm) | 9x7.1 | 11.2x9 | 12.5x10 | 14x11.2 | 14x11.2 | 16x12.5 | 18x14 |
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 8(eight) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
