DIN2187 Extension Socket with Ms.Hole
US$ 3.1 - 30
/ Piece
10 Pieces(Min. Order)
- qingdao xingang
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Zhongyi | |
| Model Number | Din2187 |
Product Description

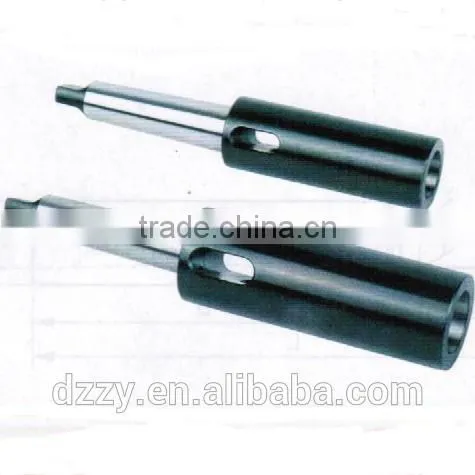

DIN2187 Extension Socket with Ms.Hole
Material:65Mn
Standard:DIN2187
Size:MT1,MT2,MT3,MT4,MT5,MT6

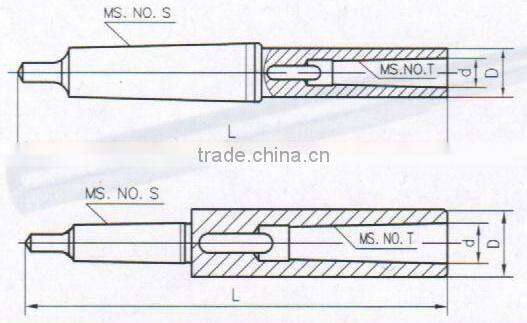

| model no. | MS.NO.S | MS.NO.T | D(mm) | d(mm) | L(mm) | Wt(kg) | Accuracy(mm) |
| BL1-1 | 1 | 1 | 20 | 12.065 | 145 | 0.19 | 0.03 |
| BL1-2 | 2 | 30 | 17.780 | 160 | 0.40 | ||
| BL1-3 | 3 | 36 | 23.825 | 181 | 0.40 | ||
| BL2-1 | 2 | 1 | 20 | 12.065 | 160 | 0.29 | |
| BL2-2 | 2 | 30 | 17.780 | 175 | 0.50 | ||
| BL2-3 | 3 | 36 | 23.825 | 196 | 0.60 | ||
| BL2-4 | 4 | 48 | 31.267 | 221 | 1.43 | ||
| BL3-1 | 3 | 1 | 20 | 12.065 | 175 | 0.41 | |
| BL3-2 | 2 | 30 | 17.780 | 194 | 0.62 | ||
| BL3-3 | 3 | 36 | 23.825 | 215 | 0.89 | ||
| BL3-3A | 3 | 40 | 23.825 | 215 | 1.10 | ||
| BL3-4 | 4 | 48 | 31.267 | 240 | 1.55 | ||
| BL3-5 | 5 | 63 | 44.399 | 275 | 2.80 | ||
| BL4-1 | 4 | 1 | 20 | 12.065 | 200 | 0.81 | |
| BL4-2 | 2 | 30 | 17.780 | 215 | 1.00 | ||
| BL4-3 | 3 | 36 | 23.825 | 240 | 1.27 | ||
| BL4-4 | 4 | 48 | 31.267 | 265 | 1.93 | ||
| BL4-5 | 5 | 63 | 44.399 | 300 | 3.18 | ||
| BL4-6 | 6 | 85 | 63.348 | 368 | 6.50 | 0.05 | |
| BL5-1 | 5 | 1 | 20 | 12.065 | 232 | 1.79 | 0.04 |
| BL5-2 | 2 | 30 | 17.780 | 247 | 2.00 | ||
| BL5-3 | 3 | 36 | 23.825 | 268 | 2.27 | ||
| BL5-4 | 4 | 48 | 31.267 | 300 | 2.93 | ||
| BL5-5 | 5 | 63 | 44.399 | 335 | 4.18 | ||
| BL5-6 | 6 | 85 | 63.348 | 403 | 6.70 | 0.05 | |
| BL6-1 | 6 | 1 | 20 | 12.065 | 294 | 4.40 | 0.04 |
| BL6-2 | 2 | 30 | 17.780 | 309 | 4.25 | ||
| BL6-3 | 3 | 36 | 23.825 | 330 | 4.52 | ||
| BL6-4 | 4 | 48 | 31.267 | 355 | 5.18 | ||
| BL6-5 | 5 | 63 | 44.399 | 390 | 6.43 |
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
