Home > Manufacturing & Processing Machinery > Machine Tools > Machine Tools Accessories > DIN2185 Morse Taper Sleeves
DIN2185 Morse Taper Sleeves
US$ 1 - 15
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Zhongyi
Model Number:
Din2185
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
Zhongyi
Model Number
Din2185

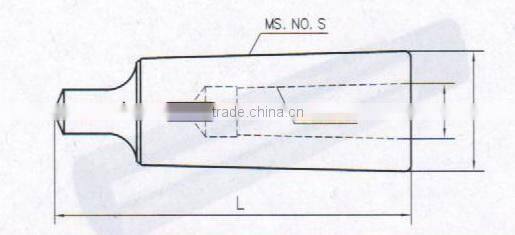

DIN2185 Morse Taper Sleeves:
Material:65Mn
Standard:DIN2185
Size:MT1,MT2,MT3,MT4,MT5,MT6
| model no. | MS.NO.S | MS.NO.T | D(mm) | d(mm) | L(mm) | Wt(kg) | Accuracy(mm) |
| B1-0 | 1 | 0 | 13 | 9.045 | 80 | 0.10 | 0.015 |
| B2-1 | 2 | 1 | 18.6 | 12.065 | 92 | 0.10 | |
| B3-1 | 3 | 24.1 | 99 | 0.24 | |||
| B3-2 | 2 | 24.7 | 17.780 | 112 | 0.12 | ||
| B4-1 | 4 | 1 | 31.6 | 12.065 | 124 | 0.60 | |
| B4-2 | 2 | 17.780 | 0.50 | ||||
| B4-3 | 3 | 32.4 | 23.825 | 140 | 0.38 | ||
| B5-1 | 5 | 1 | 44.7 | 12.065 | 156 | 1.59 | 0.020 |
| B5-2 | 2 | 17.780 | 1.49 | ||||
| B5-3 | 3 | 23.825 | 1.36 | ||||
| B5-4 | 4 | 45.5 | 31.267 | 171 | 0.95 | ||
| B6-1 | 6 | 1 | 63.8 | 12.065 | 218 | 3.84 | |
| B6-2 | 2 | 17.780 | 3.73 | ||||
| B6-3 | 3 | 23.825 | 3.85 | ||||
| B6-4 | 4 | 31.267 | 3.12 | ||||
| B6-5 | 5 | 44.399 | 1.95 |
packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
