cutting off tool holder for 40 postion quick change tool post
- qingdao xingang
- T/T Credit Card
You May Like
Product Details
| Brand Name | zhongyi | Model Number | AT-K3X10X75,BT-K4X16X120etc | |
| Application | Turning Tool |
Product Description

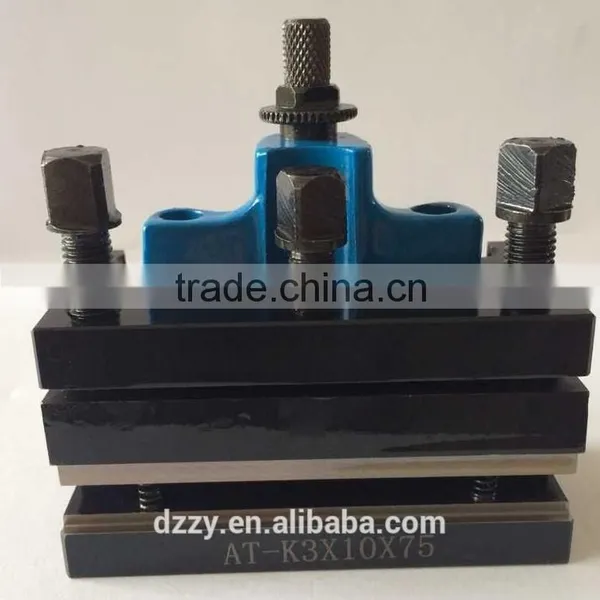

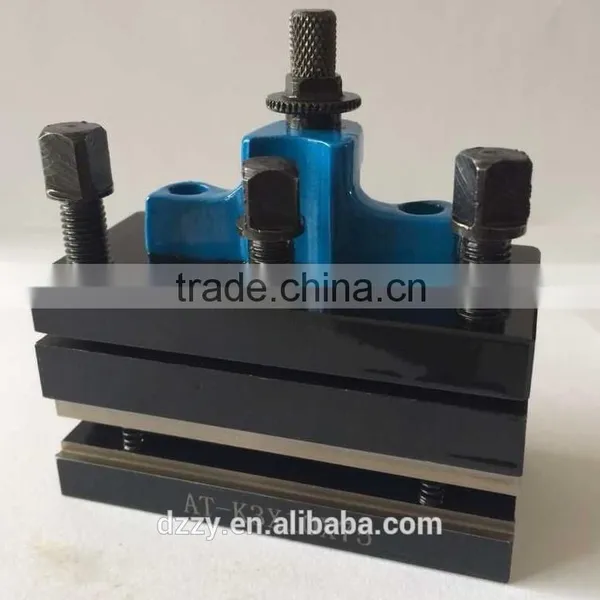

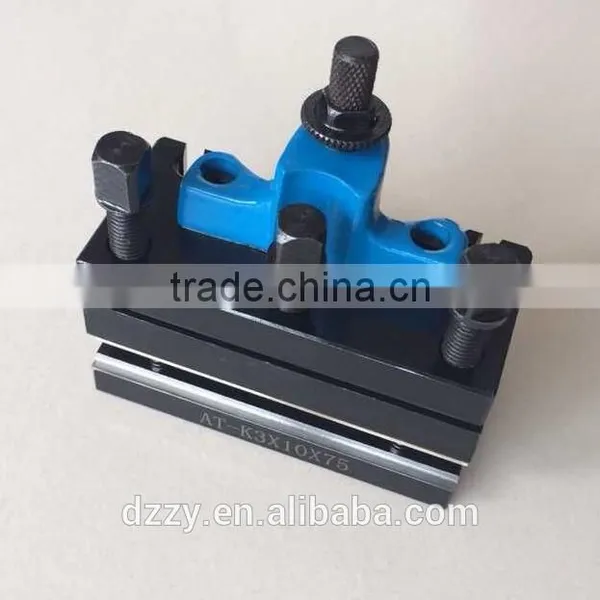

cutting off tool holder for 40 postion quick change tool post
1)it is main parts of normal lathe,work with tool post
2)change cutter quickly
3)high accuracy for fix-postion

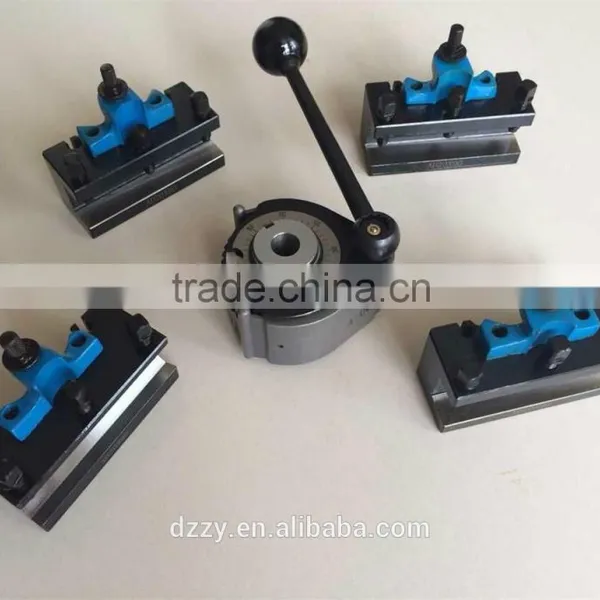

The quick change tool post is a main accessory of the machine tool,it include tool post and many kinds of tool holders.According to the processing requirement of workpieces,corresponding tool holders are selsected to finish cylindrical facing,end facing,cutting,drilling,reaming,boring as well as other processing.We can mount cutter outside the machine by them.It can change cutter quickly and has high precision,rigidity strong.It is satisfactory products for in place of traditional square turrets.
4)Below is sizes specification of cutting off tool holder:
| model no. | bXh(mm) | L(mm) | model no. | bXh(mm) | L(mm) |
| AT-K3X10X75 | 3X10 | 75 | BT-K4X16X120 | 4X16 | 120 |
| EJ40X100 | 40 | 100 |
5)the 40-position quich change tool post size specification is below:
| order no. | lathe swing | Xmin | Xmax | y | h | v | s | u | t |
| Aa | 120-220 | 18.5 | 26.5 | 6.5 | 12 | 68 | 37 | 34.75 | 13 |
| A | 150-300 | 25.5 29.5 | 36.5 40.5 | 9.5 | 16 20 | 104 | 155 | 52 | 20 |
| E | 200-400 | 32 37 | 49 52 | 12 | 20 25 | 132 | 68 | 66.5 | 20 |
| B | 300-500 | 38 46 | 58 57 | 13 14 | 25 32 | 150 | 76 | 75 | 32 |
| C | 400-700 | 48 56 61 | 88 92 91 | 16 16 16 | 32 40 45 | 192 201 202 | 107 | 92 102 102 | 40 |
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
