40-position quick change tool post and tool holders
- 50000 Set / Sets per Month
- QINGDAO/XINGANG
- T/T Credit Card
- Wholesale NC Tool HSK-FMB NC Tool Handle HSK63A FMB22-100 High Speed Steel Holding Tool Handle
- Customized CNC Machining Center Indexable Face Milling Tool cutter head
- wholesale CNC milling cutter head for CNC machining center
- Customized Right angle R390 indexable shoulder face milling cutter head
- Factory direct sell other machine tools accessories lathe machine tools
- Factory TRS Round dowel face mill indexable face milling cutter head
Product Details
Place of Origin: | Shandong, China | Brand Name: | ZHONGYI |
Product Description

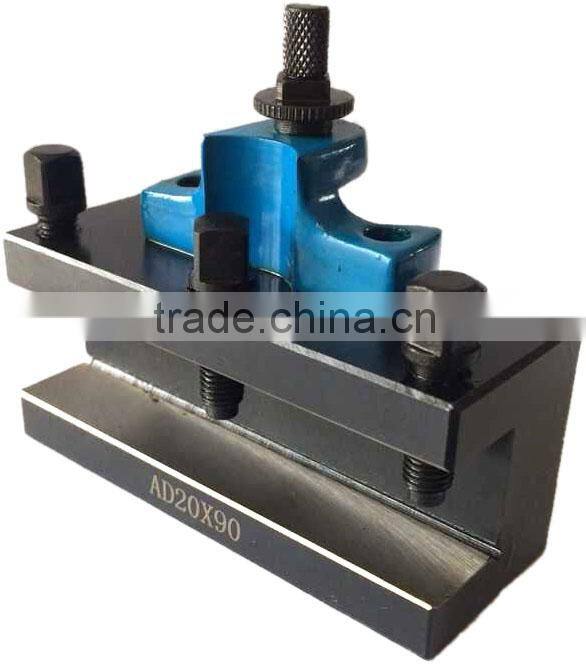

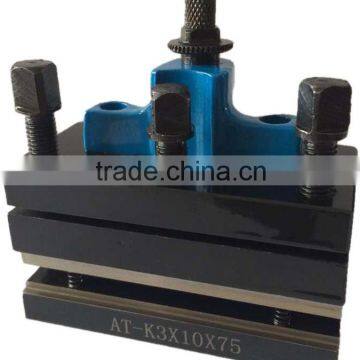

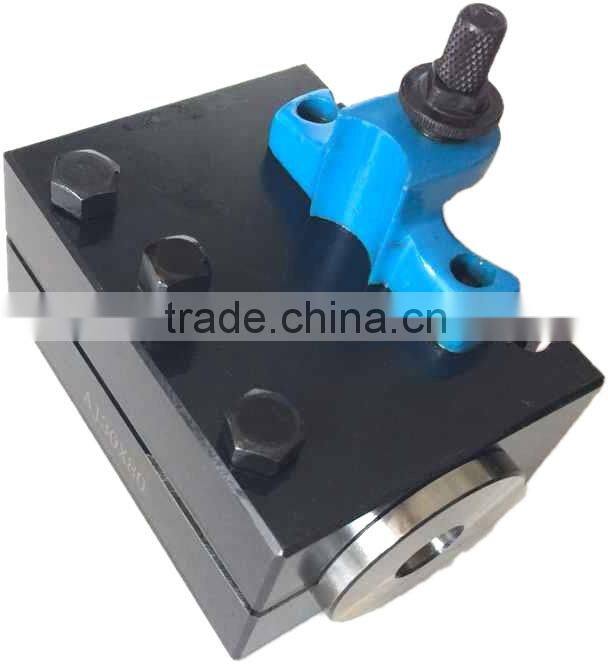

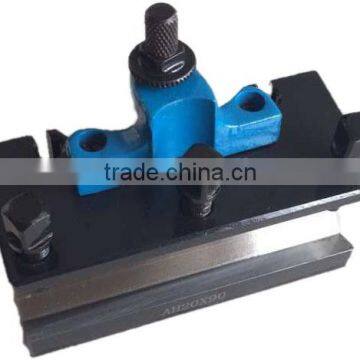

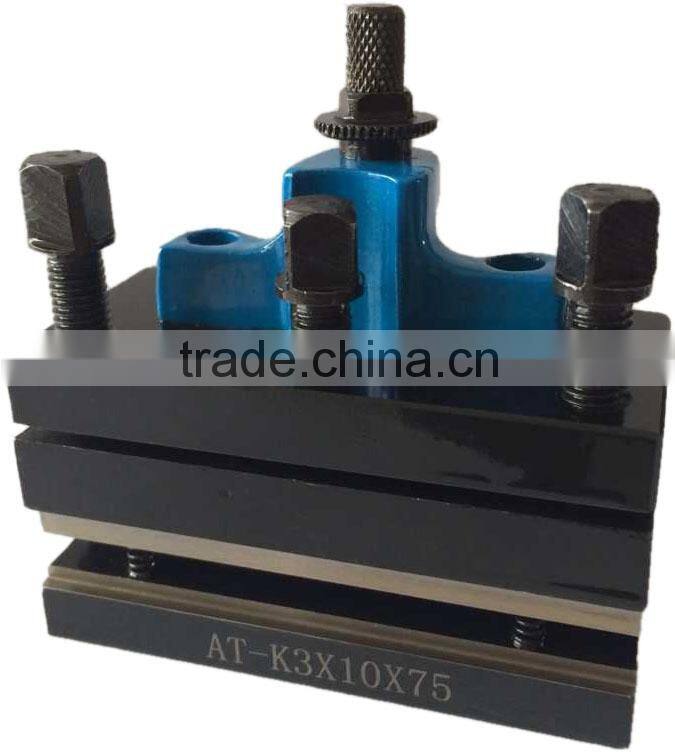

40-position quick change tool post and tool holders:

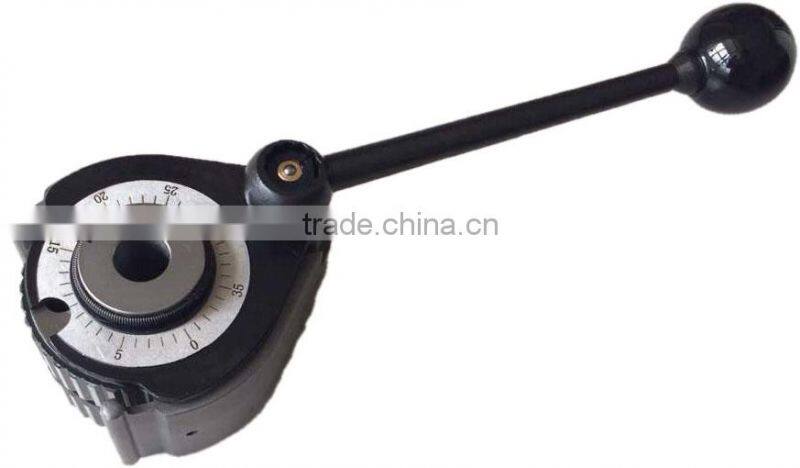

1.Cam-lock handle rigidity locks and quick release tool holder
2.Correct height of cutting edage is easily and accurately adjusted by special set screws
3.Tools can be reground without removal form tool holder setting remains unaltins unaltered.
4. 40 different angles(every 9 °) are conveniently selected from position dials with marker
5.Holders are interchangeable with most other brand 40 positon tool post

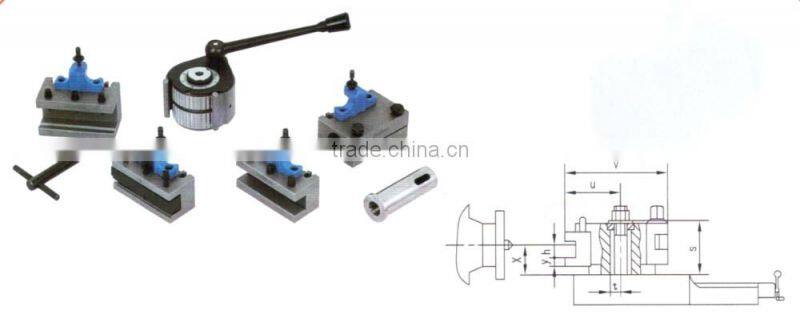

Model No. | Lathe Swing | Xmin | Xmax | y | h | v | s | u | t |
Aa | 120-220 | 18 | 26 | 6 | 12 | 62.5 | 37 | 33.75 | 13 |
A | 150-300 | 25.5 | 36.5 | 9.5 | 16 | 104 | 55 | 52.4 | 20 |
29.5 | 40.5 | 20 | |||||||
E | 200-400 | 29 | 40 | 9 | 20 | 132 | 68 | 65.3 | 20 |
34 | 43 | 25 | |||||||
B | 300-500 | 38 | 58 | 13 | 25 | 152 | 77 | 75 | 32 |
46 | 57 | 14 | 32 | ||||||
C | 400-700 | 47 | 88 | 15 | 32 | 191 | 107 | 92 | 40 |
55 | 92 | 15 | 40 | 202 | 102 | ||||
63 | 91 | 18 | 45 | 202 | 102 |

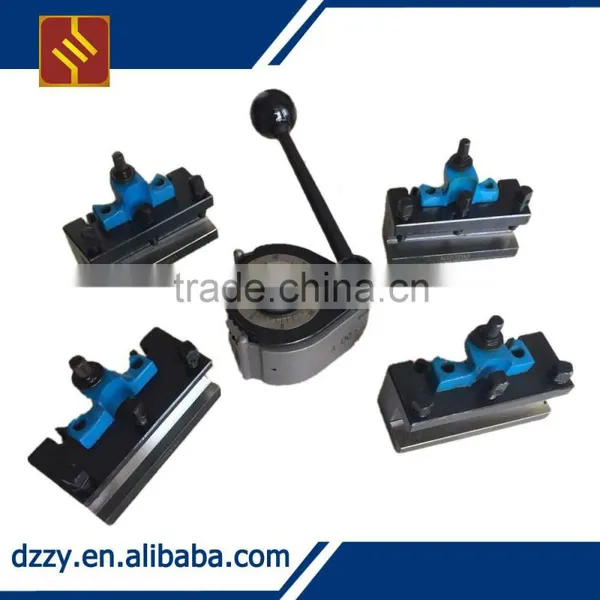

5-PIECE SET:
Order No. | Each Set Includes |
Aa-00 | 1Pcs Aa,3Pcs AaD12x50 and 1pcs AaH12x50 |

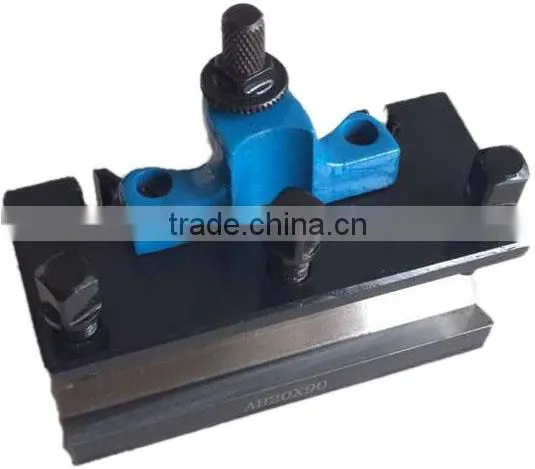

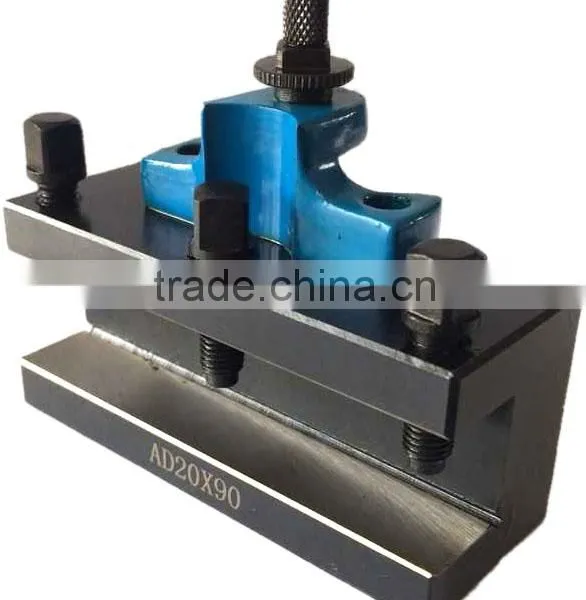

A-00 | 1Pcs A,3Pcs AD20X90 and 1pcs AH20X90 |
E-00 | 1Pcs E,3Pcs ED20X100 and 1pcs EH30X100 |
B-00 | 1Pcs B,3Pcs BD25X120 and 1pcs BH32X130 |
C-00 | 1Pcs C,3Pcs CD32X150 and 1pcs CH40X160 |
