Help CenterEuropean Style 40 Position Quick Change Lathe Tool Post & Holders
Related Products
-
Turning and Facing Holder for 40 Postion Quick Change Tool PostUS$ 22 - 85MOQ: 5 Pieces -
Turning Facing and Boring Holder for 40 Postion Quick Change Tool PostUS$ 22 - 85MOQ: 5 Pieces
-
Heavy Duty Drilling and Boring Holder for 40 Postion Quick Change Tool PostUS$ 24 - 98MOQ: 5 Pieces
-
Cutting off Tool Holder for 40 Postion Quick Change Tool PostUS$ 30 - 70MOQ: 5 Pieces
-
MS Bushings for Boring Tool HolderUS$ 11 - 30MOQ: 5 Pieces
European Style 40 position quick change lathe tool post & holders:
1)it is main parts of normal lathe
2)Cam-lock handle can firmly lock and quickly release tool holder.
3)Height of cuting edge is easily & accurately adjusted by special screw.
4)Tools can be reground without removal tool holder and set device remain unchanged.
5)40 different angles (every 9°) can be conveniently selected from position dials with marker.
6)holders are interchangeable with most other brand 40 position tool post.
| order no. | lathe swing | Xmin | Xmax | y | h | v | s | u | t |
| Aa | 120-220 | 18.5 | 26.5 | 6.5 | 12 | 68 | 37 | 34.75 | 13 |
| A | 150-300 |
25.5 29.5 |
36.5 40.5 |
9.5 |
16 20 |
104 | 55 | 52 | 20 |
| E | 200-400 |
32 37 |
49 52 |
12 |
20 25 |
132 | 68 | 66.5 | 20 |
| B | 300-500 |
38 46 |
58 57 |
13 14 |
25 32 |
150 | 76 | 75 | 32 |
| C | 400-700 |
48 56 61 |
88 92 91 |
16 16 16 |
32 40 45 |
192 201 202 |
107 |
92 102 102 |
40 |
5-piece set
| order no. | each set includes | N.W(kgs) |
| Aa-00 | 1Pcs Aa. 3Pcs AaD12x50 and 1pcs AaH12x50 | 1.13 |

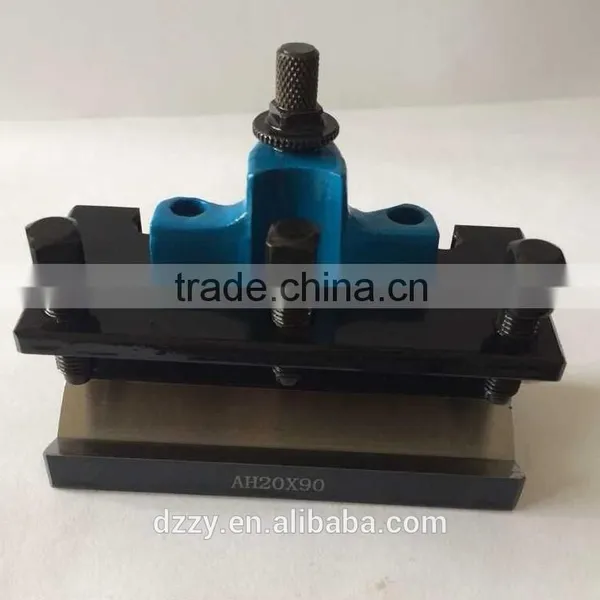

| A-00 | 1Pcs A. 3Pcs AD20x90 and 1pcs AH20x90 | 3.60 |
| E-00 | 1Pcs E. 3Pcs ED20x90 and 1pcs EH30x100 | 7.50 |
| B-00 | 1Pcs B. 3Pcs BD25x120 and 1pcs BH32x130 | 11.80 |
| C-00 | 1Pcs C. 3Pcs CD32x150 and 1pcs CH40x160 | 23.70 |
packaging way:Inner packing is by hard paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
