Specifications
universal parting blade tool holder1)it is main parts of normal lathe
2)change cutter quickly
3)high accuracy for fix-postio

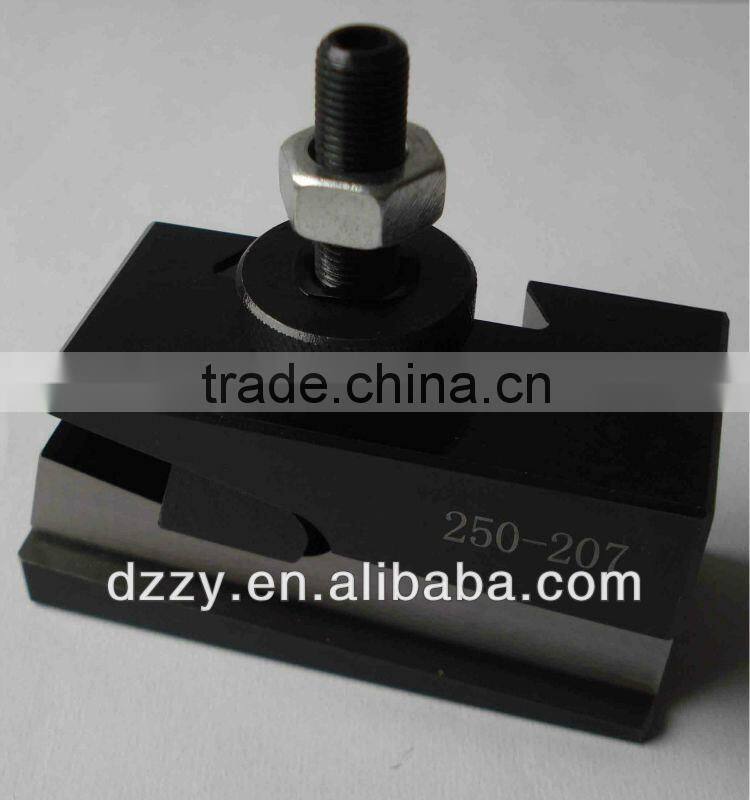

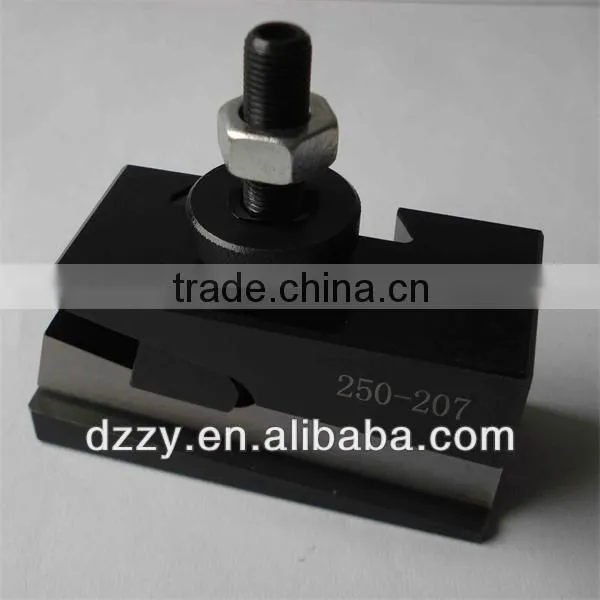

universal parting blade tool holder
1)it is main parts of normal lathe,work with tool post
2)change cutter quickly
3)high accuracy for fix-postion

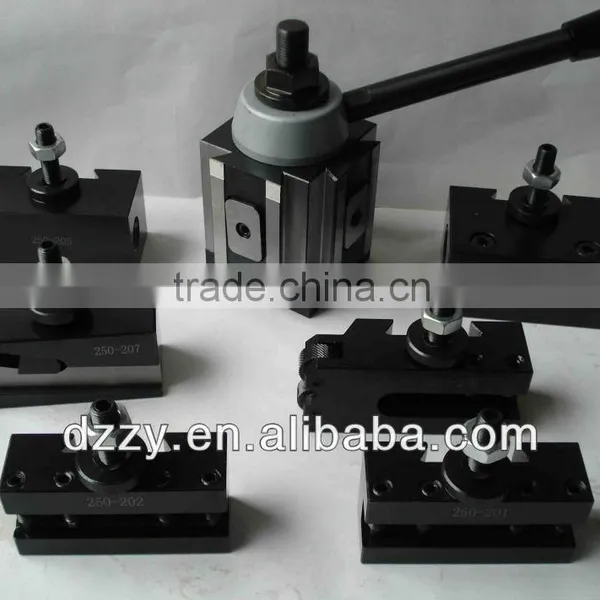

The quick change tool post is a main accessory of the machine tool,it include tool post and many kinds of tool holders.According to the processing requirement of workpieces,corresponding tool holders are selsected to finish cylindrical facing,end facing,cutting,drilling,reaming,boring as well as other processing.We can mount cutter outside the machine by them.It can change cutter quickly and has high precision,rigidity strong.It is satisfactory products for in place of traditional square turrets.
4)Below is sizes specification of universal parting blade tool holder:
| model no. | A(in) | B(in) | C(in) | D(in) | Weight(Kg) |
| 250-107 | 3/16 | 1/2 | 1-1/2 | 1/2 | 0.53 |
| 250-207 | 3/16 | 11/16 | 1-3/4 | 11/16 | 0.90 |
| 250-307 | 3/16 | 3/4 | 2 | 3/4 | 1.20 |
| 250-407 | 1/4 | 7/8 | 2-1/2 | 7/8 | 1.82 |
Remarks:Use square tool to make slot cut off etc.
5)the quick change tool post size specification is below:
| order no. | A(in) | B(in) | C(in) | D(in) | Swing dia(in) | Wt(kg) |
| 250-100 | 2-1/2 | 3-7/8 | 2-1/4 | 9/16 | 12 | 2.23 |
| 250-200 | 3 | 4-5/8 | 2-3/4 | 5/8 | 10-15 | 4.00 |
| 250-300 | 3-3/8 | 5-1/8 | 3 | 3/4 | 13-18 | 5.72 |
| 250-400 | 4 | 6-1/4 | 3-5/8 | 7/8 | 14-20 | 10.00 |
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation: we have been the supplier at Alibaba for 8(eight) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
