Home > Products > center series > M11 type precision Live Center
M11 type precision Live Center
- qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | M11 |
Product Description

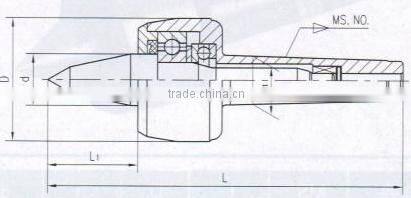

M11 type precision live center
1)high precision
2)M11/101,M11/102,M11/103 etc
| order no. | Ms no. | L | D | L1 | d | D1 | Max load | Max speed | accuracy |
| M11/101 | MS1 | 124 | 36 | 27 | 15 | 12.065 | 80 | 7000 | 0.01 |
| M11/102 | MS2 | 139 | 45 | 34 | 20 | 17.780 | 140 | 7000 | 0.005 |
| M11/106 | MS3 | 176.5 | 60 | 47 | 25 | 23.825 | 400 | 5000 | 0.005 |
| M11/108 | MS4 | 217 | 70 | 53 | 32 | 31.267 | 500 | 3800 | 0.005 |
| M11/110 | MS5 | 273 | 90 | 65 | 40 | 44.399 | 1200 | 3000 | 0.005 |
| M11/114 | MS6 | 354.5 | 105 | 78 | 50 | 63.348 | 2500 | 2600 | 0.01 |
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
