Medium Duty Live Center
- qingdao xingang
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | D411,D412 etc |
Product Description
Medium duty live center
1.Application and features:
It is an necessary accessory used on medium type lathe for such machine tools as spindle sleeve,tubes and other parts on lathe,locked by center hole.
This product can take big axial load with high precision,and easy operation,spare time and strength reliable performance.

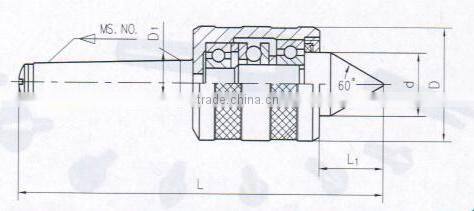

2.Constructions and main parameter(chart)
| order no. | Ms no. | L | L1 | D | D1 | d | Max load | Max speed | Wt(kg) | accuracy(mm) |
| D411 | MS1 | 115 | 20 | 34 | 12.065 | 18 | 900 | 5000 | 0.29 | 0.01 |
| D412 | MS2 | 145 | 26 | 45 | 17.780 | 25 | 1500 | 5000 | 0.70 | 0.01 |
| D413 | MS3 | 170 | 30 | 52 | 23.825 | 28 | 2000 | 4200 | 0.93 | 0.01 |
| D414 | MS4 | 205.7 | 34.7 | 60 | 31.267 | 32 | 3200 | 3200 | 1.70 | 0.01 |
| D415 | MS5 | 254 | 45 | 77 | 44.399 | 45 | 6300 | 2400 | 3.39 | 0.015 |
| D416 | MS6 | 362 | 68.5 | 125 | 63.348 | 75 | 10000 | 1600 | 12.00 | 0.015 |
| D411L | MS1 | 125 | 30 | 34 | 12.065 | 18 | 900 | 5000 | 0.31 | 0.01 |
| D412L | MS2 | 155 | 36 | 45 | 17.780 | 25 | 1500 | 5000 | 0.74 | 0.01 |
| D413L | MS3 | 183 | 43 | 52 | 23.825 | 28 | 2000 | 4200 | 0.99 | 0.01 |
| D414L | MS4 | 222 | 51 | 60 | 31.267 | 32 | 3200 | 3200 | 1.80 | 0.01 |
| D415L | MS5 | 272 | 63 | 77 | 44.399 | 45 | 6300 | 2400 | 3.62 | 0.015 |
| D416L | MS6 | 382 | 88.5 | 125 | 63.348 | 75 | 10000 | 1600 | 12.69 | 0.015 |
3.Operation steps:
A.Clean the taper hole of the tail-stock of the lathe and the shank of center,before putting the shank in the tail stock.
B.Push the tail-stock to clamp the workpiece,if contacting well,lock the tail-stock,then ready for cutting.
C.After finishing cutting,cut off the power,loosen the stock to load down the workpiece.
4.Maintenance:
A.Turn down the nut to grease the bearing by period.
B.If long stored,cleaning ad covering it with oil.
packaging way:Inner packing is by paper box.The outer packing is by cartons.Pallet is available upon the customer's request.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
