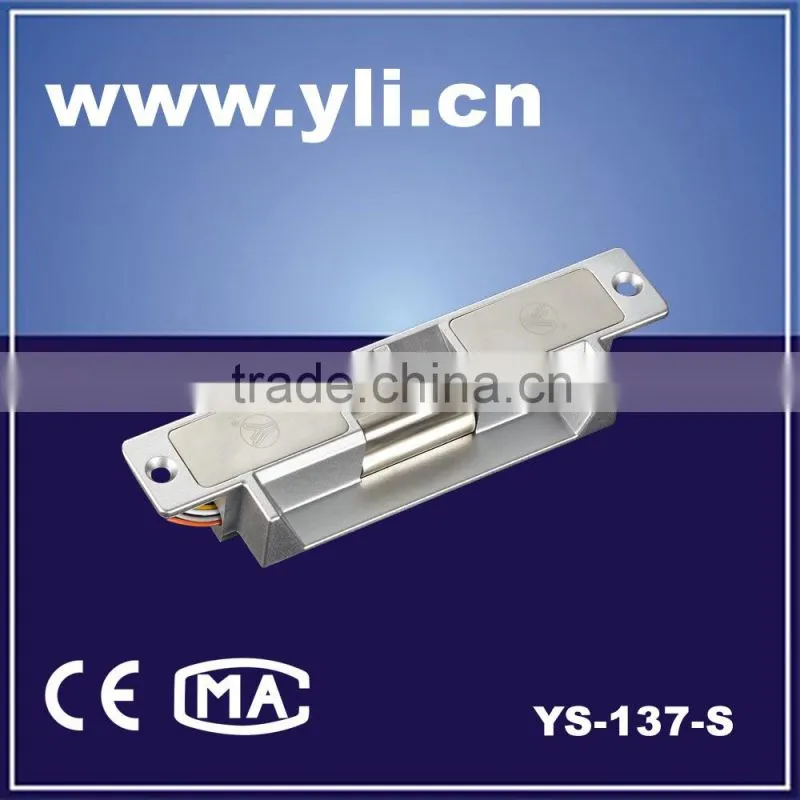

YS-137-S European Standard Heavy duty Electric Stike With Signal output For accss control-- YLI E-Locking specialist
Product Parameter
Product Parameter |
Parameter Description |
Lock Size |
174Lx44Wx27H(mm) |
Strike Structure |
304 Stainless Steel |
Holding Force |
1000kg |
Voltage |
DC12V (Need Order DC24V) |
Current |
12V/320mA;24V/160mA |
Signal Output |
Lock Status OutputNO/NC/COM |
Panel selection |
Stainless steel, high strength aluminum alloy |
Suitable For |
Wooden Door,Metal Door |
Surface Temperature: |
Within +20℃ |
Suitable Temperature |
-10~+55℃(14-131F) |
Operating Humidity |
0~90%(non-condensing) |
Face plate Housing |
Painted Steel |
Lock tongue |
Surface by coating nickel |
Function |
Built-out MOV |
Optional Accessories |
YS-305 YS-306 |
Weight |
0.5kg |
Advantage
Enhanced stress structure design
1000000 solenoid valve special design
Power to open the door or door adjustable power supply
Lock signal NO/NC/COM signal output

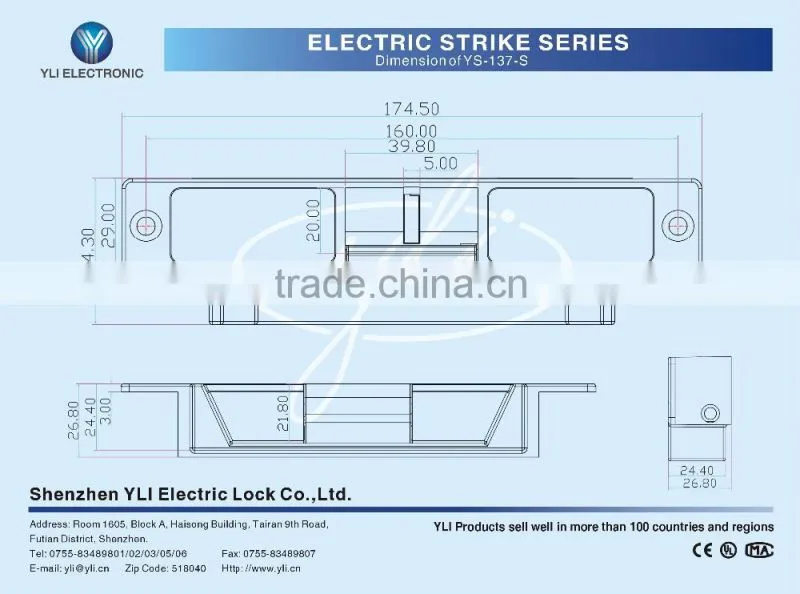

Installation Diagram & Dimension Diagram
Product Picture Show
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing
Packing Quantity(PCS/CTN) |
60 |
Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
Gross Weight(KG) |
23.4 |
