Help CenterANSI Standard Heavy Duty Electronic Strike With Signal YS -136NO/NC-S
Related Products
-
Electric Strike for Push Bar YS-621-SNegotiableMOQ: 1 Piece -
Electric Strike for Push Bar YS -622-SNegotiableMOQ: 50 Pieces
-
Long-type Electric Strike With Signal OutputNegotiableMOQ: 50 Pieces
-
Electric Strike YS -132NegotiableMOQ: 50 Pieces
-
Deadlatch With Cylinder & Thumbturn YS -305PNegotiableMOQ: 50 Pieces
ANSI standard Heavy Duty Electronic Strike with signal YS-138NO/NC-S
Product Parameter
Product Parameter |
Parameter Description |
Lock Size |
123Lx43Wx42H(mm) |
Strike Structure |
Stainless Steel |
Holding Force |
1000kg |
Voltage |
DC12V (Need Order DC24V) |
Current |
320mA |
Signal Output |
Lock Status OutputNO/NC/COM |
Suitable For |
Wooden Door,Metal Door,PVC Door |
Surface Temperature |
Within +20℃ |
Suitable Temperature |
-10~+55℃(14-131F) |
Operating Humidity |
0~90%(non-condensing) |
Face plate Housing |
Painted Steel |
Lock tongue |
Surface by coating nickel |
Function |
Built-out MOV |
Optional Accessories |
YS-305 YS-306 |
Weight |
0.34kg |
Advantage
Holding 1000kg
Special design,easy to adjust the distance of the Lock-tongue
Designed for Metal Frame drill a hole,then install it directly
Testing to 1000000 cycles
High-Temperature Painted,Duable and Beatiful Artical
CE Certificate by European Union, MACertificate by China Public Security office

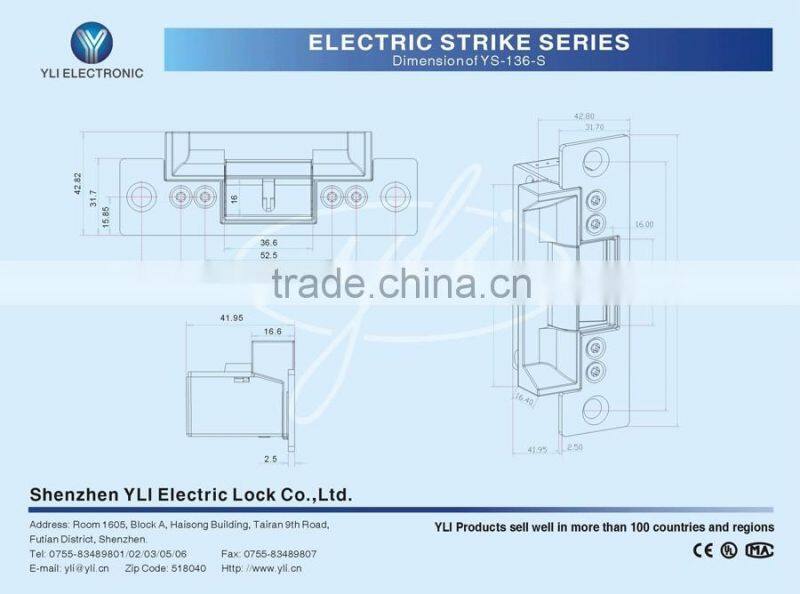

Installation Diagram & Dimension Diagram

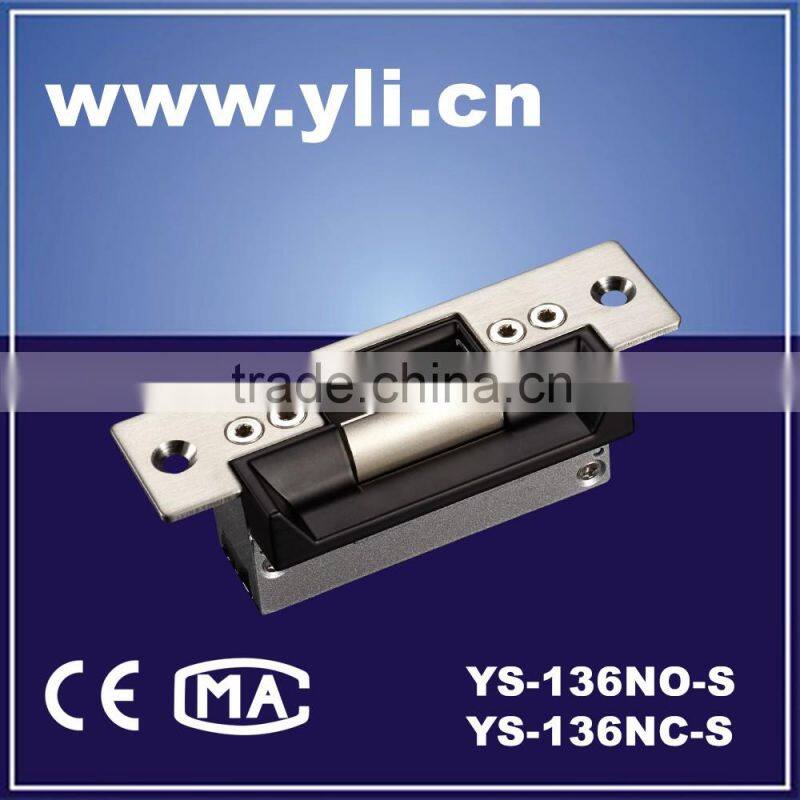

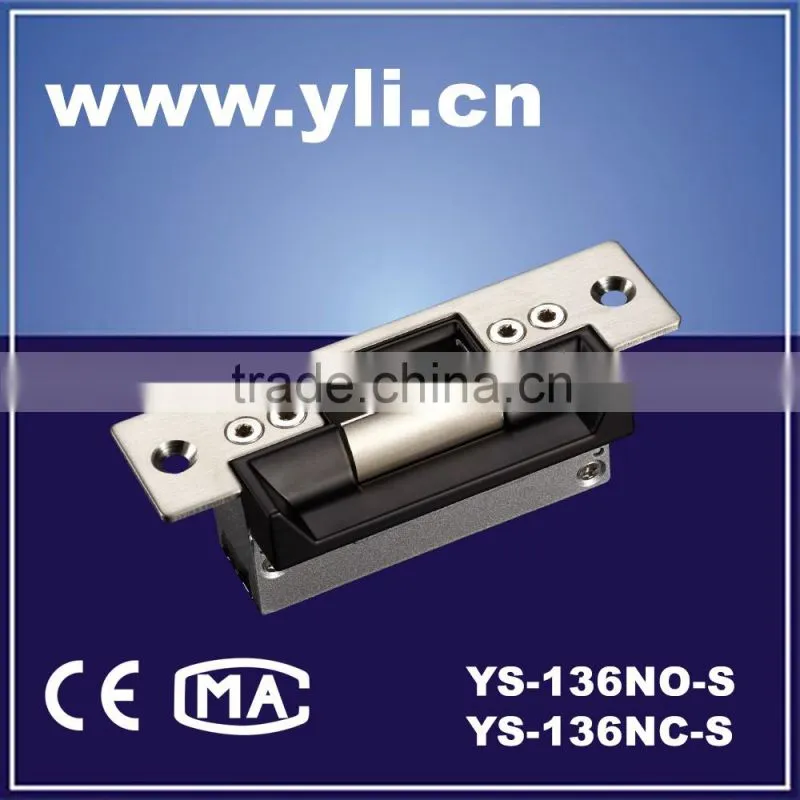

Product Picture Show
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing
Packing Quantity(PCS/CTN) |
60 |
Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
Gross Weight(KG) |
23.4 |
