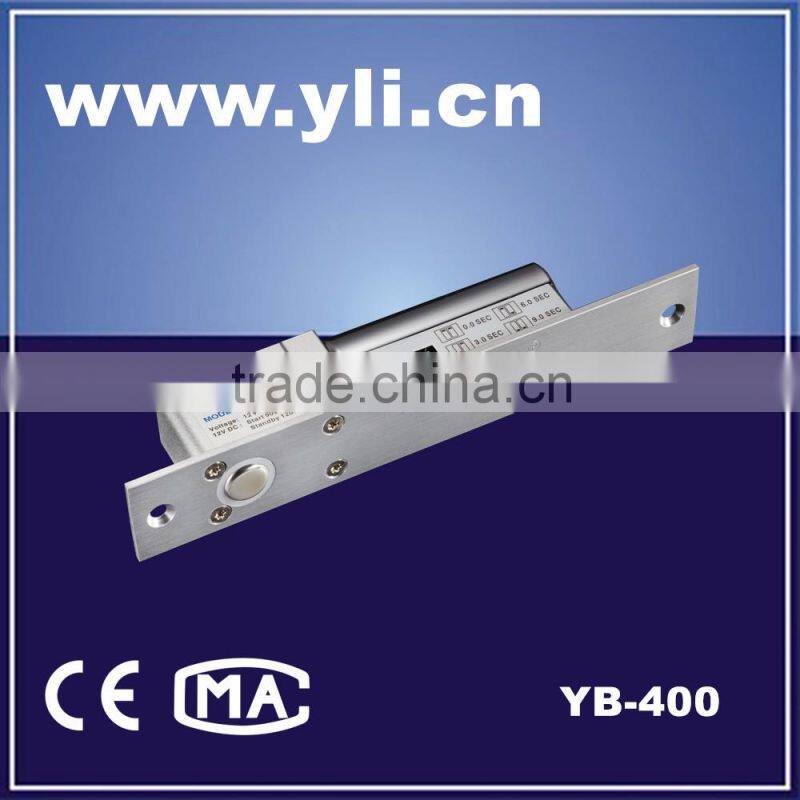

Fail safe electric bolt is Special for Auto -door electric bolt
Product Parameter
| Product Parameter | Parameter Description |
| Fail Safe | Locked when energized |
| Face Plate | 205Lx35WX41H(mm) |
| Strike | 90Lx25Wx2W(mm) |
| Voltage | DC12V |
| Start Current | 930mA |
| Standby Current | 130mA |
| Solid Bolt | polishing housing, 800Kg Holding Force |
| Suitable For | Wooden Door,Glass Door,Metal Door |
| Autolock Time Delay | 0,3,6,9sec |
| Signal Output | Replay signal output |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -10~+55℃(14~131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Special Designed | Tested to 500000 operations |
| Face place material | High Aluminum |
| Weight | 0.72kg |
Advantage
Collinear Load Test 750kg,1500pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
Product Picture Show
(Details Please visit our Company Website):
/en/
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not
inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company.
Meanwhile, we reserved all the rights of law for any tangle.
Packing
| Packing Quantity(PCS/CTN) | 30 |
| Packing Size(L*W*H)(cm) | 54.5*20*30.5 |
| Gross Weight(KG) | 21.6 |
