fail safe electric bolt lock with magnetic feature YB-100S
Product Parameter
Product Parameter |
Parameter Description |
Fail Safe |
Locked when energized |
Face Plate |
205Lx35WX41.5H(mm) |
Strike |
90Lx25Wx2H(mm) |
Voltage |
DC12V |
Start Current |
900mA |
Standby Current |
120mA |
Solid Bolt |
polishing housing, 800Kg Holding Force |
Suitable For |
Woodeng Door,Glass Door,Metal Door,Glass Door |
Surface Temp |
Low Temperature |
Induction Distance |
8mm |
Operating temp |
-10~+55℃(14~131F) |
Operating Humidity |
0~90%(non-condensing) |
Special Designed |
Tested to 500000 cycles |
Face place material |
High Aluminum |
Weight |
0.72kg |
Advantage
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life with 500000 cycles.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Double protection for loading current.
Certificate:CE&MA
Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.

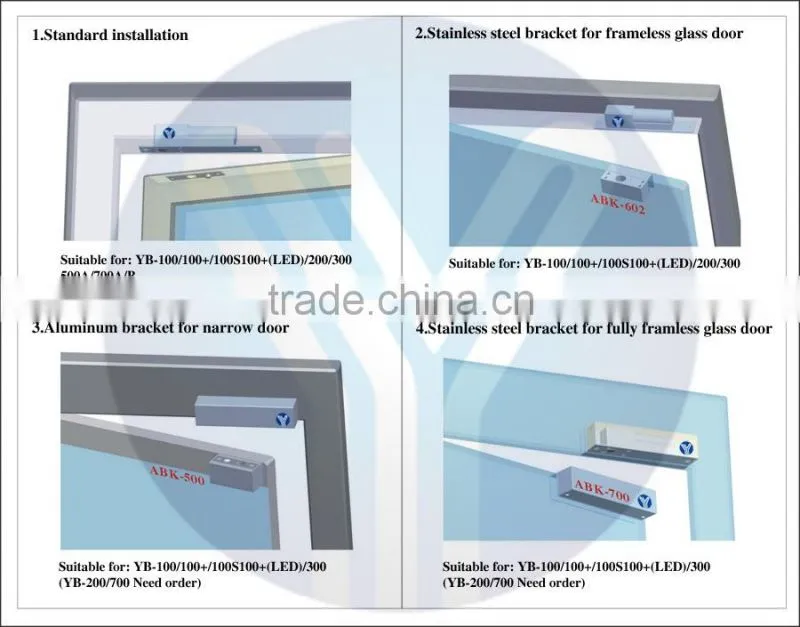

Installation Diagram

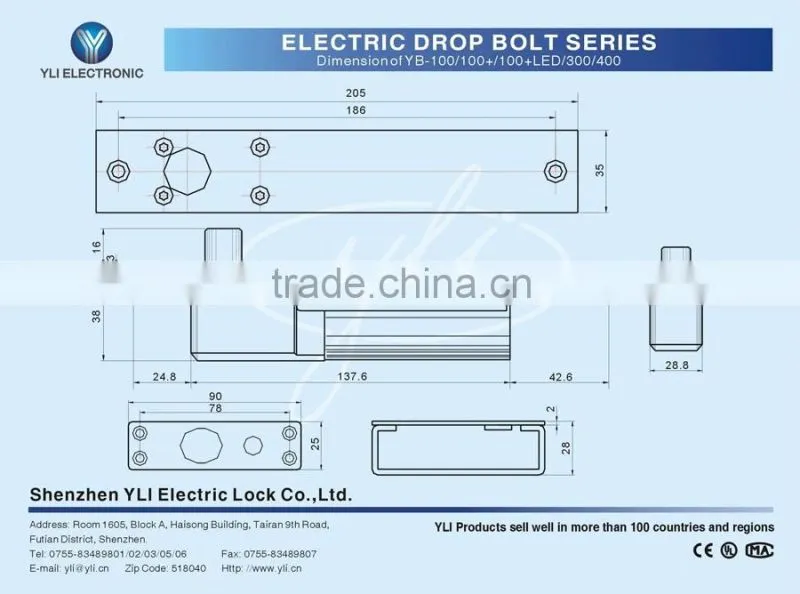

Dimension Diagram

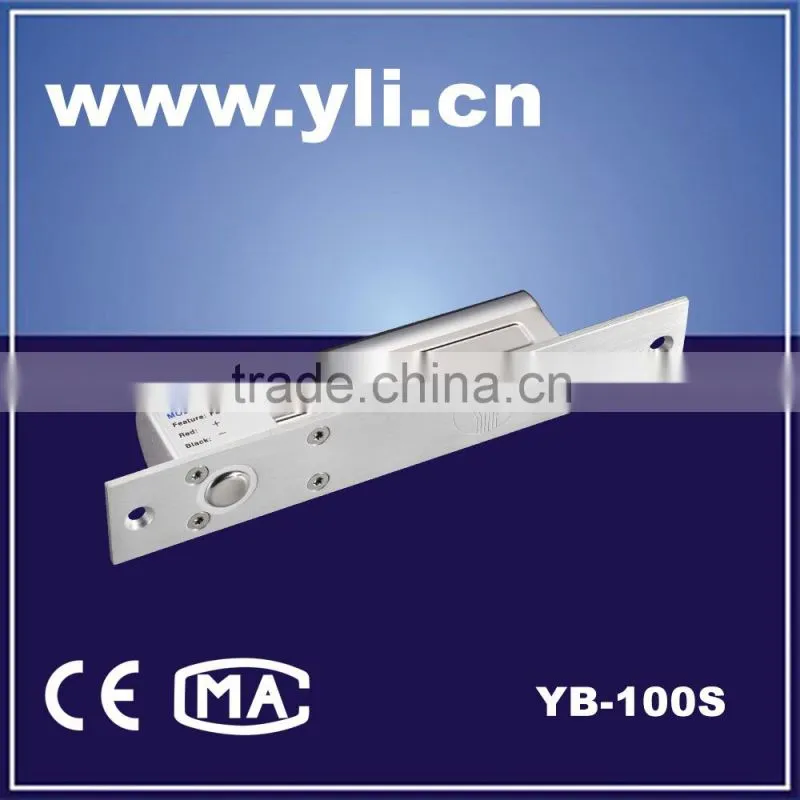

Product Picture Show
(Details Please visit our Company Website):
/en/
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing
Packing Quantity(PCS/CTN) |
30 |
Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
Gross Weight(KG) |
21.6 |
