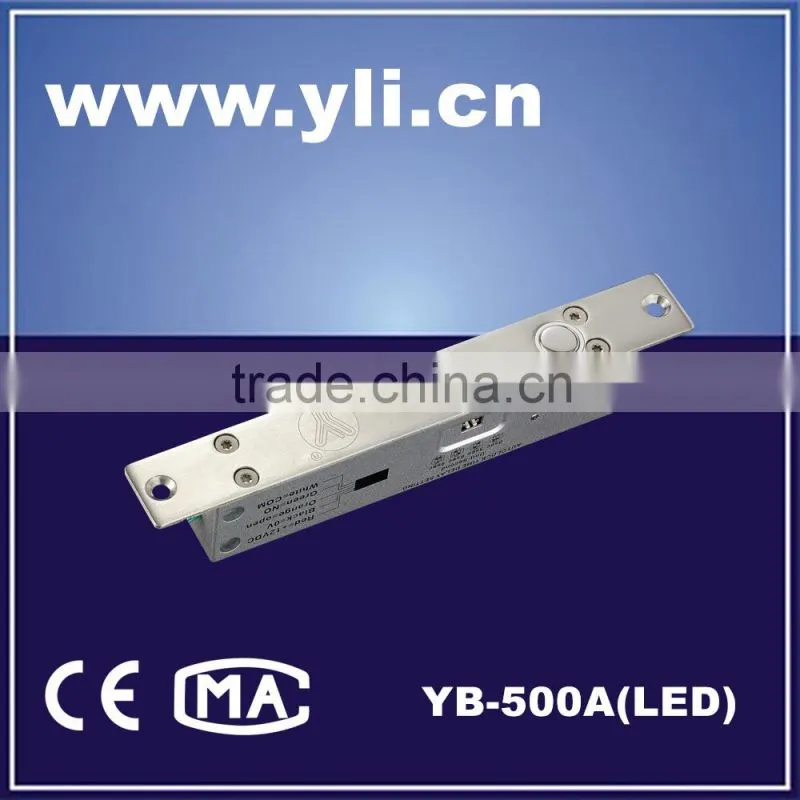

Help CenterSturdiness Electric Bolt With Narrow Panel(locked When Energized)
Related Products
-
Fail Safe Electric Dead Bolt is Special for Auto -doorNegotiableMOQ: 50 Pieces -
Fail Safe Electric Dead Bolt With Magnetic FeatureNegotiableMOQ: 50 Pieces
-
Fail Safe Electric Dead Bolt With Monitoring LEDNegotiableMOQ: 50 Pieces
-
Fail Safe Electric Bolt Lock With Magnetic FeatureNegotiableMOQ: 50 Pieces
-
Fail Safe Electric Bolt With Magnetic Feature and TimerNegotiableMOQ: 50 Pieces
Fail safe electric bolt With Adjustable Feature YB-500A(LED)
Product Parameter
| Product Parameter | Parameter Description |
| Fail Secure | Locked when energized |
| Face Plate | 192Lx25WX37H(mm) |
| Strike | 90Lx25Wx2H(mm) |
| Bolt | 16mmDIA,stainless steel 13mm throw |
| Voltage | 12VDC(24VDC need order) |
| Start Current | 960mA |
| Standby Current | 180mA |
| Feature | Fail safe |
| Autolock Time Delay | 0,3,6,9sec |
| Solid Bolt Holding Force | 1000Kg |
| Lock cylinder material | Stainless Steel |
| Face place material | kirsite |
| Led | With Led Indicate |
| Suitable For | Wooden Door,Glass Door,Metal Door,PVC Door |
| Door statue signal output contact | NO/COM |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -10~+55℃(14~131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Special Designed | Tested to 500000 operations |
| Face place material | 304 stainless steel, wire draw finishing |
| Weight | 0.68kg |
| Patent No. | 201420531846.3 |
Advantage
Photoelectricity Controling,no machanical defect.
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Long Life with 500000 cycles.
MOV Provides Reverse Current Protection.
Special photoelectricity control,three steps current application.
The humanized design of Led helps to indicate the working status of lock.
The applying of kirsite and Stainless Steel prevent the lock from high temperature,corrosion or damage.
With complete accessories,available for any doors.
Certificate:CE&MA.
Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.
Installation Diagram & Dimension Diagram
Product Picture Show
(Details Please visit our Company Website):
/en/
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not
inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company.
Meanwhile, we reserved all the rights of law for any tangle.
Packing
| Packing Quantity(PCS/CTN) | 24 |
| Packing Size(L*W*H)(cm) | 47.5*16.7*25.8 |
| Gross Weight(KG) | 17.76 |
