RFID/digital Access Control Keypad

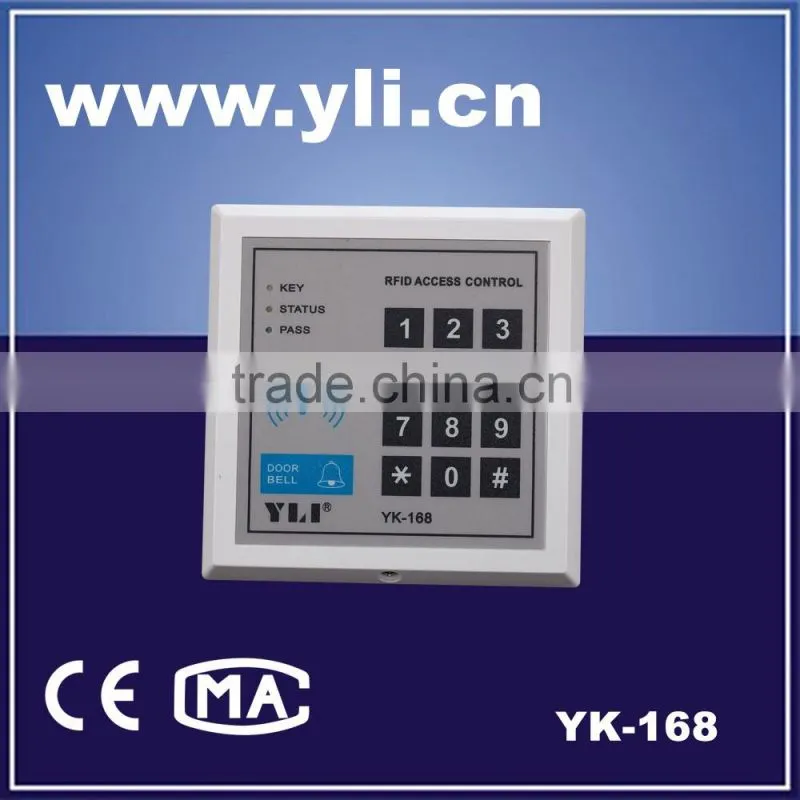

RFID/digital Access Control Keypad photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
YLI
Model Number:
YK-168
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HongKong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name YLI
Model Number YK-168

YK-168 access control Security lock Keypad



Product Parameter



Product Parameter

Parameter Description

Dimensions

 117Lx117Dx21W(mm)

Operating Voltage

 12VDC

Current Drain

 <30mA

Relay Output Contacts

 NO and NC Dry Contact,Max Ratin of Contact Current 3A/24VDC

Capacity of Recording

 250ID Cards,250Codes or 1 Common Code

Card Reading Distance

 Max Distance 5cm

Type of ID Card

 EM card,125KHZ

Operation Mode

 ID Card Operation,Digital Code Operation,ID Card+Digital Code Operatio

Operating Temperature

 -20℃-60℃

Operating Humidity

 10%-90%

Weight

 0.14kg







Advantage



Simple Programming,Easy Operation.



Adopting steadily working card reader.



Keypad Locks for 30 Seconds After 10 False Entries.



Can be Connected with Door-open Button and Doorbell.



Non-volatile Memory upon Power Failure.



Tamper Switch available for Security Alarm System.







Installation Diagram



RFID/digital Access Control Keypad

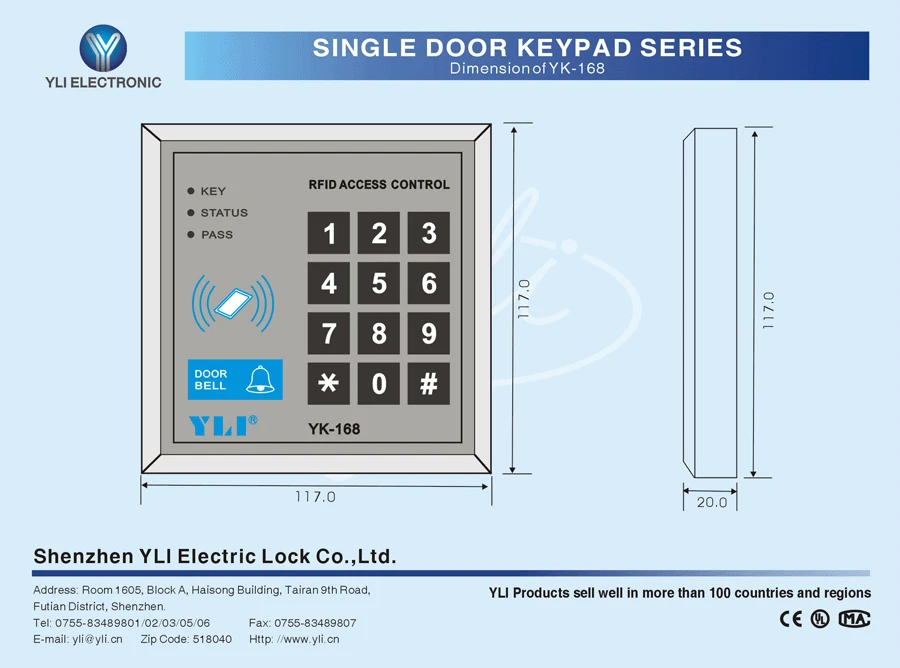

Dimension Diagram

RFID/digital Access Control Keypad



Product Picture Show

RFID/digital Access Control Keypad







Quality Guarranty







Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.







Statement



YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.







Packing



Packing Quantity(PCS/CTN)

50

Packing Size(L*W*H)(cm)

53*23*34

Gross Weight(KG)

11.5







Our Factory



 RFID/digital Access Control KeypadRFID/digital Access Control KeypadRFID/digital Access Control KeypadRFID/digital Access Control KeypadRFID/digital Access Control KeypadRFID/digital Access Control Keypad
