Specifications
Purification Equipments Fan Filter Unit FFU1.Within HEPA Filter Eff.: 99.99% at 0.3um;
2..Low noise fan;one year warranty;

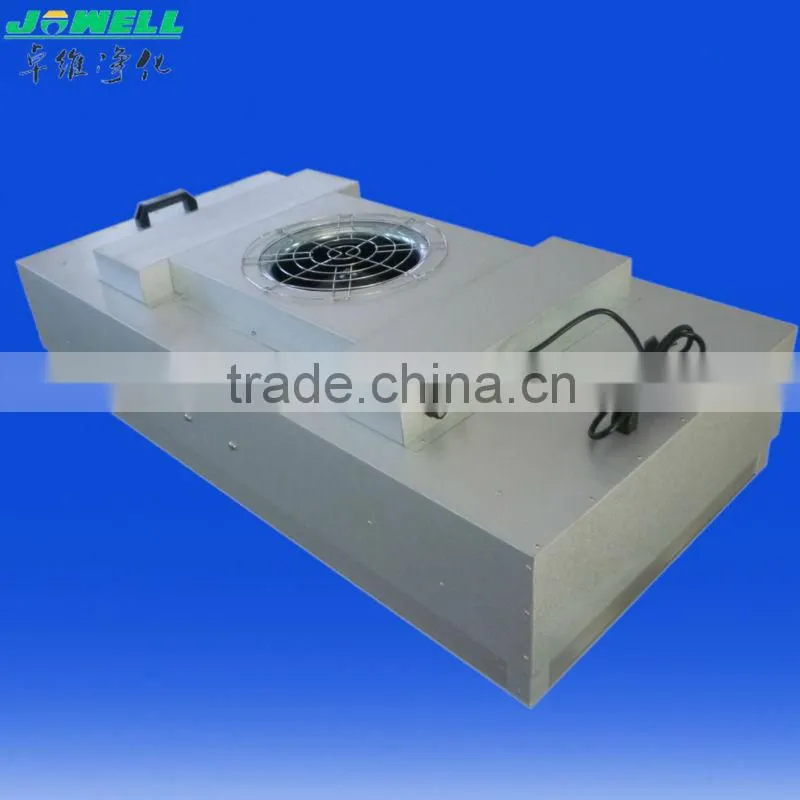

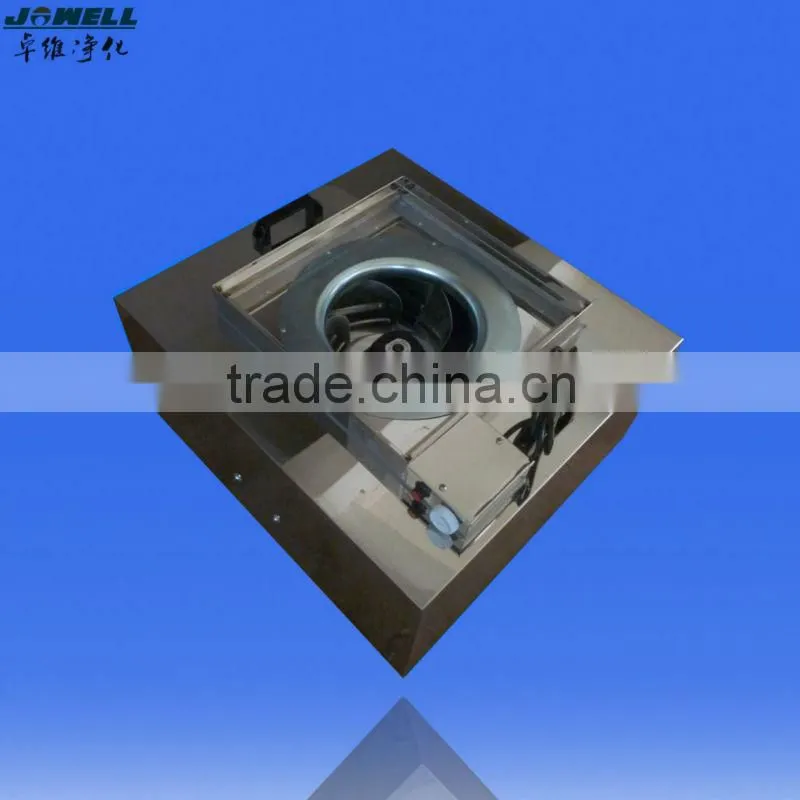

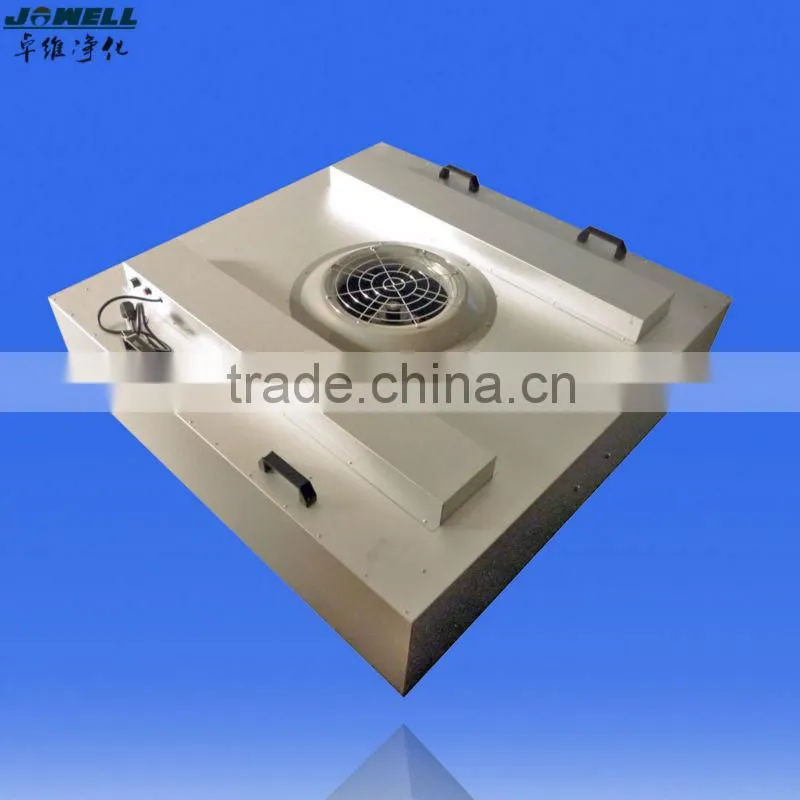

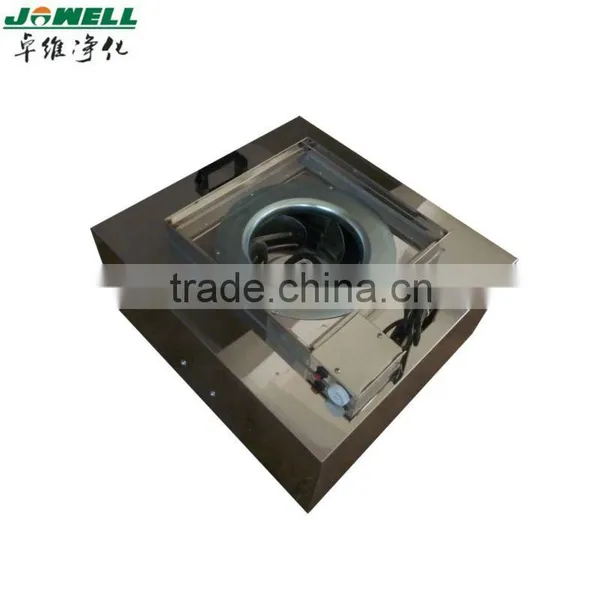

Purification Equipments Fan Filter Unit FFU
Application: FFU's are commonly used in the construction of Class 1 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc...

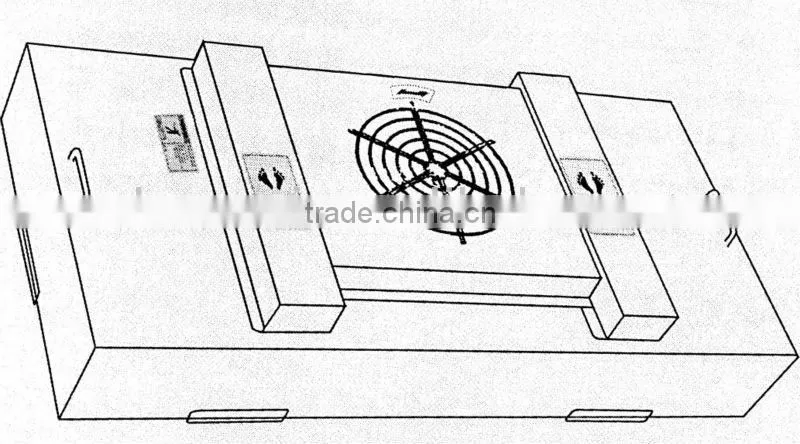

FFU, short for Fan Filter Unit, which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
Dimension and technical data:
Model |
JJ-4-2 |
JJ-4-4 |
JJ-2-2 |
|||
Dimension |
mm |
1175*575*250 |
1175*1175*350 |
575*575*250 |
||
Air flow |
M3/h |
1400 |
2350 |
800 |
||
External static pressure |
Pa |
98 |
98 |
98 |
||
Main body |
- |
Standard |
cold rolled steel plate with powder coated |
|||
Option |
Stainless steel(SUS304) Galvanized steel Aluminum coated zinc plate |
|||||
Power supply |
Standard |
V/Hz |
220V 50/60Hz |
|||
Option |
V/Hz |
Pls contact us if you have any other requirement about the power. |
||||
Filter |
Efficiency |
- |
HEPA Over 99.99% @ 0.3um |
|||
- |
ULPA Over 99.9995% @ 0.1um |
|||||
Frame |
- |
Aluminum |
||||
Power dissipation |
W |
120 |
245 |
90 |
||
Weight |
Kg |
25 |
45 |
15 |
||
Shock |
m/s2 |
≤0.4 |
≤1.1 |
≤0.4 |
||
Noise |
Db(a) |
≤55 |
≤55 |
≤55 |
||
Option |
- |
Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter |
||||
Show Room:
Indoor air exhibition:
