Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | JOWELL |
Model Number: | JJ-4-2 | Feature: | Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Rust / Corrosion Inhibitor, Sudsing / Foaming | Fuel: | Electric |
Certification: | CE | Use: | Other, Clean Air Supply | Cleaning Process: | Other, Fiber glass paper |
Cleaning Type: | Clean-In-Place (CIP) | Industry Used: | Pharmaceutical Cleaning | Material: | Other, Metal / Coil, Aluminum profile steel plate with powder coated or stainless steel |
Power(W): | 110W | Dimension(L*W*H): | 1175*575*250 | After-sales Service Provided: | Overseas third-party support available |
Product Description
ISO9001 Certified fan filter unit,4x2 feet Fan Filter Unit,Cleanroom FFU,Fan Filter Unit
Our factory have been the membership of “Onsite Checked”

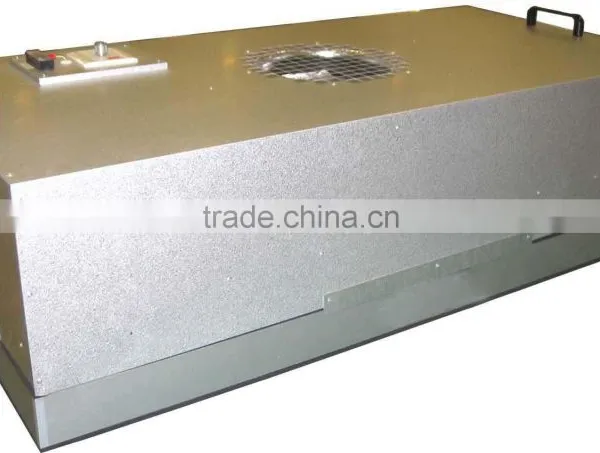

FFU, short for Fan Filter Unit, which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.
FFU provides clean air and particle controlling. FFU is installed on ceiling of clean room (25% to100% cover rate), general dimension is 2' * 4' or 4' * 4'.
Application: FFU's are commonly used in the construction of Class 1 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc...
1. Nice appearance , human centered design
Add Stainless handle, easy installation and delivery, perpendicular design.
2. High performance and low noise fans
Adopting Energy-saving Multi-blade turbine fan, lower noise, Pressure spread evenly, outlet air velocity evenly and stable, low consumption, low running cost, service life can reach to longer than 80 thousand hours.
3. Light, thin shape
Without filter net, thickness of shape is 23cm, 25KG weight, application in low ceiling are also available.
4. Flexible, diversified design
Except for standard items, custom made is available. Such as choosing kinds of filter net and materials of shell.
5. Concerning, convenient design
Pedals are designed in the body, which makes it convenient to install and repair.
6. Premium Current-averaging design of the inside
Ensures deviation of the blowing side lower than ±10%.
Dimension and technical data:
Model | JJ-4-2 | JJ-4-4 | JJ-2-2 | |||
Dimension | mm | 1175*575*250 | 1175*1175*350 | 575*575*250 | ||
Air flow | M3/h | 1400 | 2350 | 800 | ||
External static pressure | Pa | 98 | 98 | 98 | ||
Main body |
- | Standard | Aluminum coated zinc plate | |||
Option | Stainless steel(SUS304) Galvanized steel cold rolled steel plate with powder coated | |||||
Power supply | Standard | V/Hz | 220V 50/60Hz | |||
Option | V/Hz | Pls contact us if you have any other requirement about the power. | ||||
Filter | Efficiency | - | HEPA Over 99.99% @ 0.3um | |||
- | ULPA Over 99.9995% @ 0.1um | |||||
Frame | - | Aluminum | ||||
Power dissipation | W | 120 | 245 | 90 | ||
Weight | Kg | 25 | 45 | 15 | ||
Shock | m/s2 | ≤0.4 | ≤1.1 | ≤0.4 | ||
Noise | Db(a) | ≤55 | ≤55 | ≤55 | ||
Option | - | Differential draft gauge; Remote control; Duct flange for suction air; Pre-filter |
