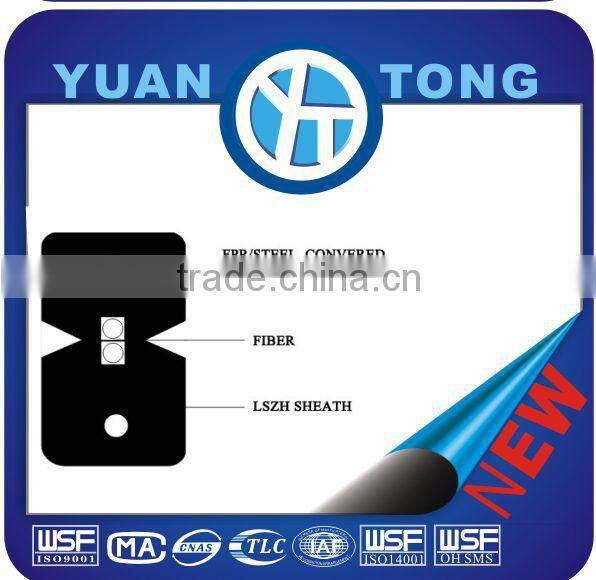

2 core Indoor optical drop cable coaxial FTTH cable
Features
1. Simple structure, light weight and high tensile strength.
2. Special groove design, easily strip and splice, simplified installation and maintenance.
3. Two parallel steel wires ensure tensile.
4. Crush resistance and flexibility.
5. Low smoke zero halogen and flame retardant sheath, environment-friendly and good security.
Technical Parameters
Cable Count |
Out sheath |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage |
|||
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(°C) |
|
2 |
5.3*2.0 |
21.7 |
600 |
200 |
1000 |
300 |
20D |
10D |
40 |
Optical Characteristics: | ||||
Fiber Sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode |
G.652(A,B,C) |
B1.1:Conventional fiber |
||
G.652D |
B2: Zero dispersion shifted |
|||
G.655 |
B1.2 :Cut-off wavelength shifted |
|||
G.657(A1,A2 ,B3) |
B4: Main technical data for positive |
|||
Notice:
1. All values mentioned in above table are for reference only, will not specially inform once data get
updated, plz kindly understand.
2. The tensile and crush are minimum values in the table.

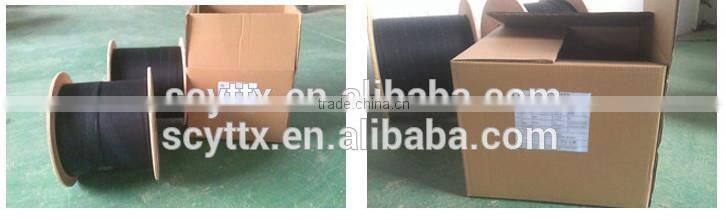

1. 2000 Meters/drum, each drum in one carton, carton size is 0.407*0.407*0.345
2. Special wooden drum or iron wooden drum is also available according to cable size and packing length.
1. Free sample is available according to order's situation.
2. All requires will be carefully studied and replied within 24hrs.
3. OEM and ODM services are acceptable when customer demand in advance.
Sichuan Yuantong communications limited is a company specializing in the development of optical
communication products. It’s a set of research and design, production, sales unit.
Why you choose us?
Firstly we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material, in this way we can provide you with high-end products, competitive price and superb service.
Secondly we have a very professional sales team, who are very familiar with all kinds of overseas trading terms and custom clearance documents in this way we will make your import process very smoothly and pleasantly.
Thirdly your every inquiry will be took seriously and replied immediately within 24 hours, if the inquiry is complicated will reply u the second day.
Last but not the least, we have gained Alibaba trade assurance so there’s no worry about our quality.
Payment:
Massive order: T/T, T/T&LC, are all acceptable.
Small order: T/T, Credit- card, west-union are acceptable.
Shipping & Delivery:
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 years after-sale service. If there is no man-made problem. we will replace or repair for you freely. Even after one year If any problem happened, our team will do our best to help you figure it out, so no worries.
Certificate
