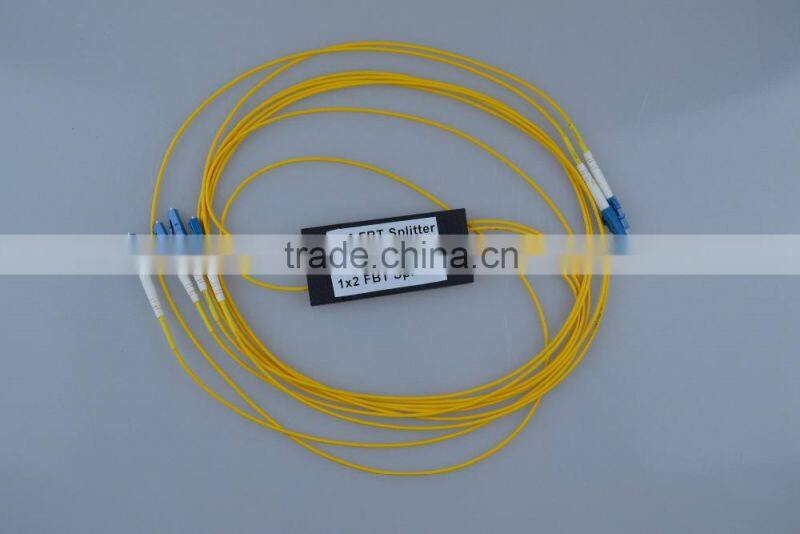

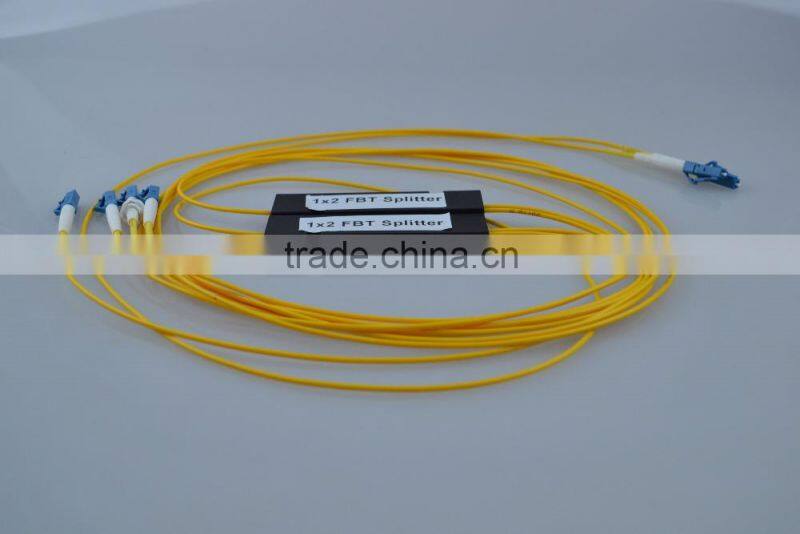

Single Mode 1x2 Fiber Optic FBT Splitter Fiber Optic Solutions
Description
Fiber optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
Features
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. High Reliability
4. High Uniformity
5. Outstanding Optical Performance
6. Low Polarization Sensitivity
7. Excellent Environmental Stability and Widely Used
Application
1. FTTx Deployments (FTTP,FTTH,FTTN,FTTC)
2. Cable Television (CATV)
3. Local Aerial Networks (LAN)
4. Passive Optical Networks (PON)
5. Test Equipment
Technical Parameters
Parameters |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
Operating wavelength (mm) |
1260~1650 |
|||||
Insertion loss(dB)(S/P Grade) |
4.0/3.8 |
7.3/7.0 |
10.5/10.2 |
13.7/13.5 |
16.9/16.5 |
21.0/20.5 |
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
Return loss(dB)(S/P Grade) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
Polarization dependent loss (dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
Wavelength dependent loss (dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
Temperature stability (-40~85℃) (dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating temperature (℃) |
-40~+85 |
|||||
Storage temperature (℃) |
-40~+85 |
|||||
Packing by cartoon and plastic bags.
Shipping
1. Free sample is available according to order's situation.
2. All requires will be carefully studied and replied within 24hrs.
3. OEM and ODM services are available.
Sichuan Yuantong Communication Co.,Ltd was established in 2010, which covers an area of 4000 square
meters in the land of Abudance---Chengdu, Sichuan with US$500 million of regstered capital.
Our company is a high-tech companty putting R&D,production and sales into integrated for the fiber optic
cables and related accessories that are widely used in communication, electric power and other industries.
Yuantong owns a team with professional and technical skill, and has a great deal of experience in production
and sales. “Quality First” is the guideline of us.
Yuantong already has a significant partnership with China Telecom, China Mobile and China Unicom. Also we build good relationship with the customers from South America, Middle East and Southeast Asia,
praised by the majority of the users all around the world.
