Product Details
Place of Origin: | Sichuan, China | Brand Name: | Yuantong | Model Number: | PLC splitter |
Product Description

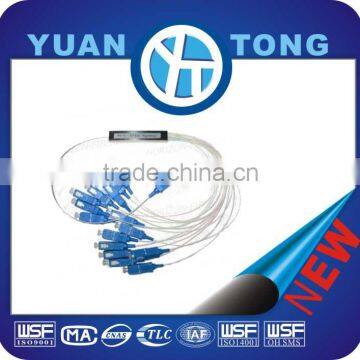

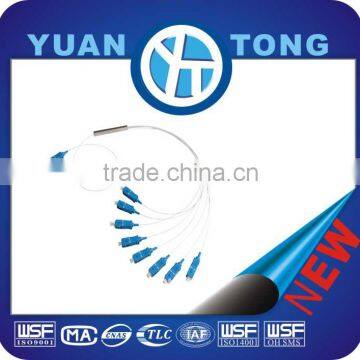

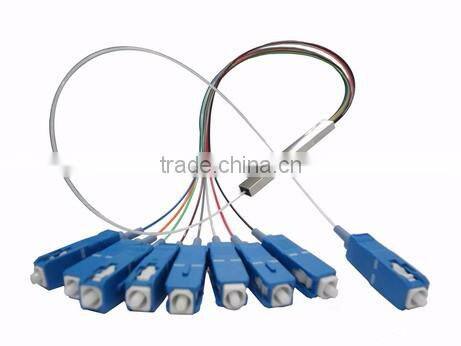

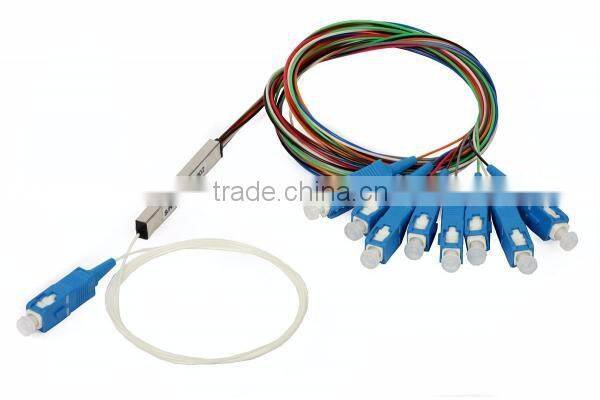

Passive FTTH SC Single Mode Optic Fiber PLC Splitter
Description
Fiber optic splitter is a device applied in optical fiber systems with one or more input fibers and one or several
output fibers. There are mainly two types of optical splitters. One is fused splitter (FTB Splitter), the other is
Planar Ligthwave Circuits (PLC Splitter). For the fused optical splitter, it can be devided into different rations,
such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other.
Planar Lightave Circuits (PLC) can not work with different tration rather than it provides an accurate splitting in
high-density output (such as 8, 16, 32, 64 outputs).However, the most common type of fiber optic splitter
splits the output evenly, which is coming out with the same output of light signals. As a result of its great
function, optical splitter is a very important part in passive optic network (PON).
Types of PLC splitter
- Bare fiber PLC splitter
- Mini tube PLC splitter
- ABS PLC splitter
- Insert PLC splitter
- Rack mounted PLC splitter
Features
- Low Insertion Loss
- Low Polarization Dependent Loss
- High Reliability
- High Uniformity
- Outstanding Optical Performance
- Easy Installation
- Excellent Environmental Stability and Widely Used
Application
- FTTH System
- Cable Television (CATV)
- Local Aerial Networks (LAN)
- Passive Optical Networks (PON)
- Test Equipment
Technical Parameters
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating wavelength (nm) | 1260 - 1560 | |||||
Insertion loss (dB) (S/P grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.5/13.5 | 16.9/16.5 | 21/21.5 |
Loss uniformity (d/B) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return loss (dB)(S/P grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization dependent loss (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength dependent loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature stability (-40 - +85℃) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating temperature (℃) | -40 ~ +85 | |||||
Storage temperature (℃) | -40 ~ +85 |
Order Information
a. Two out of the 1310nm, 1490nm and 1550nm operating wavelength can be selected.
b. 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 configurations of splitters are available.
c. 250um bare fiber, 0.9 loose tube, 2. 0mm or 3.0mm LSZH fiber cables can be selected.
d. The length of input or output fibers can be also customized; 1m length as default.
Packing by cartoon and plastic bags.
1. Order Information
Trade Term: EXW/FOB/CIF
Delivery Time: 3-5 working days time. 15-25 working days massive order.
2. Trade Terms
Payment term: T/T 30% Deposit after order confirmed, later delivey pay the 70% (remaining balance) after goods ready before shipping.
Sample: Be ready in 3-10 days once payment received.
3. Our Services
For your inquires about our products, we will reply to you within 24 hours.
We offer OEM and ODM services.
Sichuan Yuantong Communication Co.,Ltd was established in 2010, which covers an area of 4000 square
meters in the land of Abundance---Chengdu, Sichuan with US$500 million of regstered capital.
Our company is a high-tech companty putting R&D,production and sales into integrated for the fiber optic
cables and related accessories that are widely used in communication, electric power and other industries.
Yuantong owns a team with professional and technical skill, and has a great deal of experience in production
and sales. “Quality First” is the guideline of us.
Yuantong already has a significant partnership with China Telecom, China Mobile and China Unicom. Also we build good relationship with the customers from South America, Middle East and Southeast Asia,
praised by the majority of the users all around the world.
WHY CHOOSE YUANTONG COMMUNICATION?
Firstly, we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material. In this
way, we can provide you with high-end product, competitive price and superb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading
terms and customer clearance documents. In this way, we will make your import process very smooth and
pleasant.
Thirdly, your every inquiry will be took seriously and replied immediately within 24 hours. If the inquiry is complicated, we will reply u the second day.
Last but not the least, we have gained Alibaba trade assurance, so there is no worry about our quality.
Payment:
Massive order: T/T, T/T & LC are both acceptable.
Small order: T/T, Credit-card, West-union are acceptable.
Shipping & Delivery
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 year after-sale service. If there is no man-made problem, we will replace or repair for you
freely. Even after 1 year, if any problem happens, our team will do our best to help you figure it out.
