Help CenterFiber Optic Splice Closure GJS (04) 5C
Related Products
-
GJS (04) -5B Fiber Optic Splice ClosureUS$ 10 - 20MOQ: 10 Pieces -
Horizontal 24 Cores Fiber Optic Inline Splice Closure BoxUS$ 10 - 100MOQ: 50 Pieces
-
4 Port Dome Type 144 Core Fiber Optic Joint EnclosureUS$ 10 - 100MOQ: 50 Pieces
-
144 Core Dome Optical Fiber Splice Box Joint EnclosureUS$ 10 - 100MOQ: 50 Pieces
-
FTTH 72 Core Optical Fiber Joint ClosureUS$ 10 - 100MOQ: 50 Pieces
1. Product description
GJS(04)5C fiber optic splice closure provides with 2 inlets and 2 outlets, suital for cable whose diameter is Φ7 to Φ16. It can be used in aerial, duct and direct buried application. This product is a openable high quality engineering plastic box and with mechanical sealing structure filled with sealing material. The external components and fasteners are made of high quality stainless steel. It can be reopened and reused without changing material.
2. Product use guide
1) Strip off the cable to the reserved length, then fix the steel wire on the core fixing column. As shown in picture 1.
Picture 1
2) Use the metal sheet to fix the fiber on the box. As shown in picture 2.
Picture 2
3) After splicing the cable, put and fix the cover on the top side of splice tray. As shown in picture 3.
Picture 3
4) Cover the box and then tightening the box with stainless steel screw. As shown in picture 4.
Picture 4

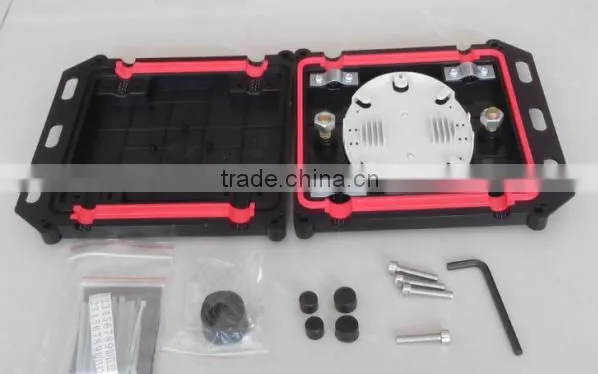

5) Accessories
Cable entry port plug Socked head wrench Stainless steel screw
Sealing tape Heat shrinkable tube
3. Packing information
Type |
Dimension |
Max. capacity |
Number of inlets and outlet |
Cable diameter |
Sealing structure |
Carton weight kg |
Qty of package/ carton |
GJS(04)5C |
200*220*43 |
12C |
2 inlets 2 outlets |
Ø7-Ø16mm |
Mechanical sealing |
17.1 |
20 |
