GJS (04) -5B Fiber Optic Splice Closure
US$ 10 - 20
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanxi, China
Brand Name:
Yuantong
Model Number:
GJS (04) -5B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal 24 Cores Fiber Optic Inline Splice Closure BoxUS$ 10 - 100MOQ: 50 Pieces -
4 Port Dome Type 144 Core Fiber Optic Joint EnclosureUS$ 10 - 100MOQ: 50 Pieces
-
144 Core Dome Optical Fiber Splice Box Joint EnclosureUS$ 10 - 100MOQ: 50 Pieces
-
FTTH 72 Core Optical Fiber Joint ClosureUS$ 10 - 100MOQ: 50 Pieces
-
FTTH Fiber Optic Inline Joint Enclosure ManufacturerUS$ 10 - 100MOQ: 50 Pieces
Place of Origin
Shanxi, China
Brand Name
Yuantong
Model Number
GJS (04) -5B

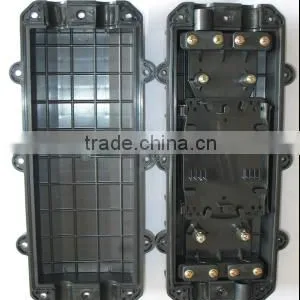

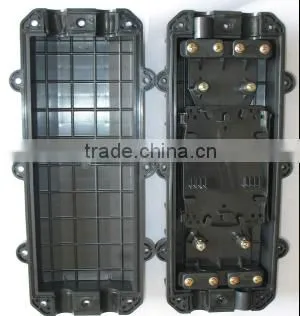

GJS (04) -5B Fiber Optic Splice Closure
1. Application
This product provides suitable for cable whose diameter is within φ18.5mm. It can be used in aerial. duct, direct burial as well as the all-plastic local cable connection.
2. Structural features
- It complies with the regulations of YD/T814-1996.
- The shell material is high quality engineering plastics(ABS),which is anti-aging,anti-corrosion and thunder-proof, with the characteristics of light weight, high mechanical strength, strong corrosion resistance, lightning-stroke protection and long lifetime.
- The product is with the mechanical sealing structure filled with the sealing material. It can be reopened and reused without changing sealing material.
- Uses have flexible choice according to the actual use of the number of in and out fiber optic cable through the special equipped end cap.
- Superimposed structural splice tray in the box and plastic main body support frame make the insulativity more reliable and expansion of capacity and grounding of fiber optic cable flexible, convenient and safe.
- The external components and fastening parts are all made of stainless steel,It can be reopened and reused without changing sealing material.
3. The key technical indexes
- Size(mm): 350 × 145×90
- Weight: 1.6 kg
- Fiber radius of curvature: ≥40mm
- Splice tray additional losses: ≤0.01dB
- Storage fiber length: ≥1.6m
- Max capacity(single fiber): 48 cores
- Working temperature: - 40℃ ~ + 70℃
- Lateral pressure: ≥2000N / 10cm
- Shock resistance: ≥20N.m
4. Operating points
- Choose appropriate cable, strip off the cable, remove the outer and inner protective covers and loose shrink tube, clean and remove the petrojelly filling inside the cable, keep 1.1~1.6m fiber and 30~50mm steel core.
- Fix the cable by pressing cable card, fix core columns.
- Introduce the fiber into the splice tray, put heat shrink tube and hot-melt tube on any pair of the fiber, after the welding, move the heat shrink tube and hot-melt tube, put on stainless or quartz intensive core column, make the fiber splicing place in the middle of the protective tube. Heat the protective tube appropriately, using the fiber and protective tube together. Snap the protective optical fiber connector into cable wireway (every splice tray can be applied for cable of 12cores).
- Layout the rest of fibers evenly in the splice tray, order and fix the fiber by nylon ribbon. Generally, use the splice tray in down-top way. After the splicing, put and fix the cover on the top side of splice tray.
- Apply and locate the ground wire according to the requirements of engineering design.
- Wind the sealing tape around the entry ports in the shell, put sealing line into the sealing groove in the edge of the shell, close the two pieces of shells, tighten stainless steel bolts.The stress of the bolts should be symmetrical until all the bolts are tightened.
- According to the laying requirements, locate and fix hangings and lay the closure.
5. Packing list
Main body |
1 set |
Sealing tape |
1 pc |
Wielding logo |
1 pc |
Socked head wrench |
1 pc |
Heat shrinkable tube |
1~48 pcs |
Plug |
0~2 pcs |
Sandpaper |
1 pc |
M6×35 stainless nut |
12 sets |
Hook |
1 set |
Nylon ribbon |
1~20 pcs |
6. Packing information
- Qty of package: 10 pcs/carton
- Weight: 1.6 kg/pc 18 kg/carton
