FTTH 72 Core Optical Fiber Joint Closure
- 1000 Piece / Pieces per Month
- Shanghai/Shenzhen/Chongqing/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
FTTH Fiber Optic Inline Joint Enclosure Manufacturer
-
144 Core Fiber Optic Splice Joint Enclosure
-
Inline 144 Core Optic Fiber Cable Splice Closure
-
Inline 24 Core Fiber Optic Splice Enclosure Joint Closure
-
Telecom Fiber Optical Dome Joint Enclosure Joint Box Closure
-
Dome Type Joint Fiber Optic Splice Closure
Product Details
| Place of Origin | Sichuan, China | Brand Name | Yuantong | |
| Model Number | Splice Closure |
Product Description

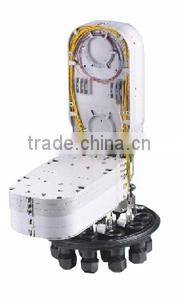

FTTH 72 Core Optical Fiber Joint Closure
Introduction
Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It
provides space and protecton for the fiber optic cable splicing and joint. Fiber splice closure is used for aerial,
strand-mount FTTH locations where drop cables are spliced to disribution cables. With different kinds of ports
types, the products can fit different fiber optic core numbers. It is suitable for protecting optical fiber splices in
straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable
projects. We supply Dome type and In-line type splice closure. The max capacity includes 12 core, 24 core, 48 core. 72 core, 96 core, 144 core and etc.
Specification
Item No. | In and out No. | Max Capacity (Fibers) | Dimension (mm) | Cable diameter | Gross weight (kg) | Sealing structure | Normal configure |
1 | 1-1 | 48 (4x12) | 500x190x90 | Φ7-18 | 3 | Seal tape | 12 |
2 | 1-1 | 60 (5x12) | 502x180x116 | Φ7-18 | 3 | Seal tape or silicon rubber | 12 |
3 | 2-2 | 60 (5x12) | 460x180x108 | Φ7-18 | 3 | Seal tape or silicon rubber | 24 |
4 | 2-2 | 60 (5x12) | 492x180x104 | Φ7-25 | 3 | Seal tape | 24 |
5 | 2-2 | 60 (5x12) | 492x202x104 | Φ7-25 | 3 | Seal tape | 24 |
6 | 4-4 | 96 (8x12) | 492x202x175 | Φ7-25 | 5 | Seal tape | 24 |
7 | 2-2 | 96 (8x12) 120 (5x24) | 599x195x136 | Φ7-25 | 4 | Seal tape or silicon rubber | 24 |
8 | 4-4 | 144 (12x12) 216 (9x24) | 590x195x188 | Φ7-25 | 8 | Seal tape or silicon rubber | 48 |
9 | 6-6 | 72 (6x12) | 490x200x140 | Φ7-25 | 5 | Seal tape | 24 |
10 | 3-3 | 216 (9x24) | 660x260x250 | Φ7-25 | 7 | Seal tape | 36 |
Features
1. The closure adopts mechanical sealing structure. There is one big shaped inlet/outlet port in base. The big
round shaped port is used for the sealing uncut straight-through fiber cable, the small ports are used for
branch fiber cable and drop cable.
2. It adopts engineering PA plastic with high-strength to make the closure has longer life time and excellent
sealing performance.
3. The sealing structure keeps good sealing performance after re-entry and re-using.
4. The bending radius meets the international standard.
5. The closure can be opened and closed without using tools, better than heats shrinkable structure.
6. Much more easily and convenient for construction.
7. It is most suitable for special environment for underground application.
Sichuan Yuantong Communication Co.,Ltd was established in 2010, which covers an area of 4000 square
meters in the land of Abundance---Chengdu, Sichuan with US$500 million of regstered capital.
Our company is a high-tech companty putting R&D,production and sales into integrated for the fiber optic
cables and related accessories that are widely used in communication, electric power and other industries.
Yuantong owns a team with professional and technical skill, and has a great deal of experience in production
and sales. “Quality First” is the guideline of us.
Yuantong already has a significant partnership with China Telecom, China Mobile and China Unicom. Also we build good relationship with the customers from South America, Middle East and Southeast Asia,
praised by the majority of the users all around the world.
WHY CHOOSE YUANTONG COMMUNICATION?
Firstly, we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material. In this
way, we can provide you with high-end product, competitive price and superb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading
terms and customer clearance documents. In this way, we will make your import process very smooth and
pleasant.
Thirdly, your every inquiry will be took seriously and replied immediately within 24 hours. If the inquiry is complicated, we will reply u the second day.
Last but not the least, we have gained Alibaba trade assurance, so there is no worry about our quality.
Payment:
Massive order: T/T, T/T & LC are both acceptable.
Small order: T/T, Credit-card, West-union are acceptable.
Shipping & Delivery
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 year after-sale service. If there is no man-made problem, we will replace or repair for you
freely. Even after 1 year, if any problem happens, our team will do our best to help you figure it out.
