2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord

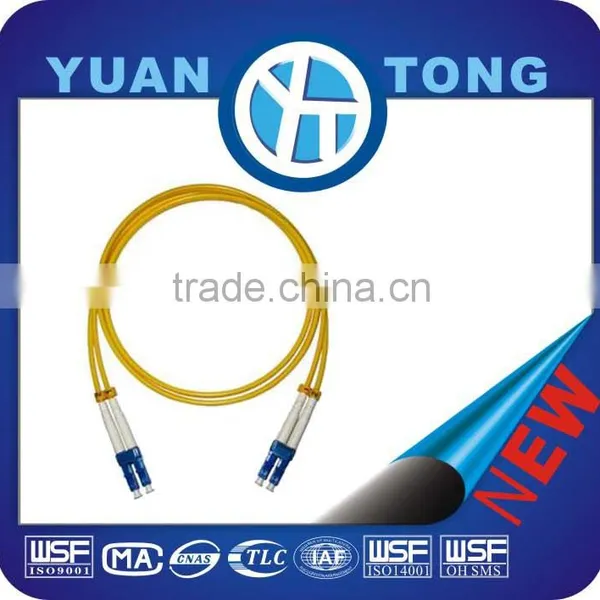

2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord photo-1

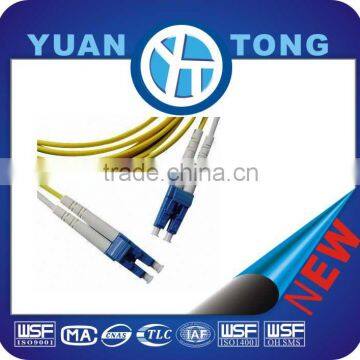

2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord photo-2
2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord photo-3
US$ 1 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Yuangtong communication
Model Number:
Patch Cord
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name Yuangtong communication
Model Number Patch Cord
Type Coaxial
Number of Conductors 1

2m Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord

Description

A Fiber Optic Patch Cord is an optical cable used to connect one optical device to another for signal rounting.

Diveces of different types are connected with patch cords. It is a length of fiber cable with connectors fixed on

two ends to realize the optical path active connection. If both sides of the connector or its end-face are

different, we call it hybrid patch cord. According to the connector structure type, it can be divided into SC, LC,

FC, ST etc. According to the polishing ceramic end-face, it can be divided into PC, UPC and APC.



Produc Features

1. Low insertion loss & high return loss
2. Good repeatability & inter changeability

3. PC, UPC, APC polishing

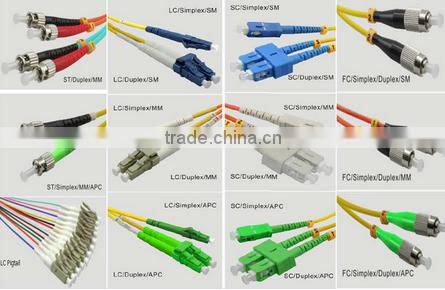

4. Various types of connectors: SC, LC, FC, ST etc
5. Suitable for high-speed, high-capacity optical fiber tranmission system
6. Provide singlemode/multimode pactch cord&pigtails
7. Fiber diameter: Φ 0.9mm/2.0mm/3.0mm
8. Length: 1m, 1.5m, 2m, 3m or as customers' request



Application

1. CATV

2. Active device termiation

3. Telecommunication networks

4. Metro

5. Local area networks (LAN)

6. Data processing networks

7. Test equipment

8. Premise installation

9. Wide area networks (WAN)



Technical Data

NO.ItemUnitSingle ModeMulti-Mode
1Insertion Loss dB≤0.2≤0.3≤0.3
2Return LossdB≥50/UPC≥45/PC≥65/APC≥35/PC
3RepeatabilitydB0.1
4Working TimesTimes≥1000
5Operating Temperature°C-40-85
6Optical Cable DiametermmΦ0.9Φ2.0Φ3.0



ItemPC PolishingAPC Polishing
Ferrule Diameter(mm)2.51.252.51.25
Radius of Cury(mm)10 ~257~255~15
Fiber Height(nm)-100~50±50
Apex Offset(um)±50±50

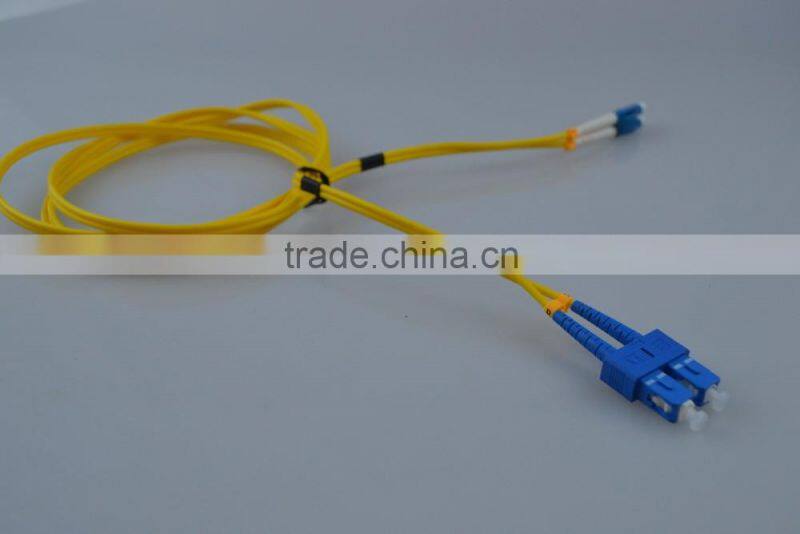

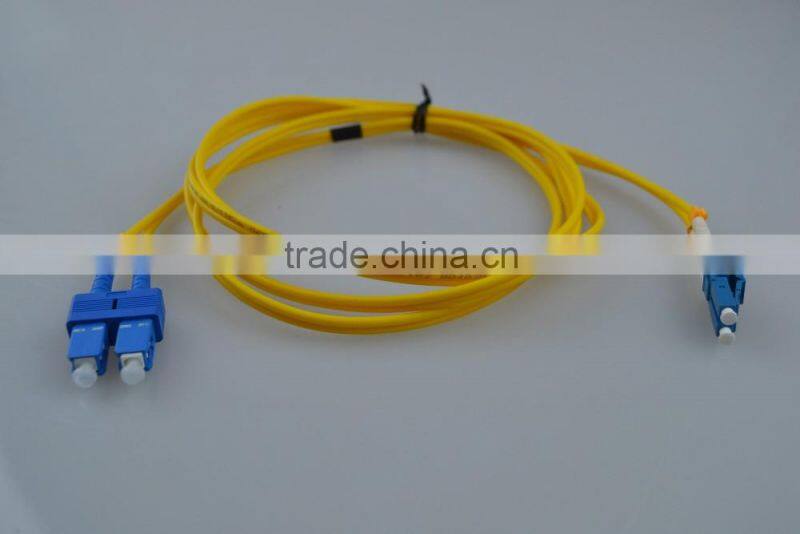

Product Photo

 2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord

2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord



Company Information

2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord



Sichuan Yuantong Communication Co.,Ltd was established in 2010, which covers an area of 4000 square

meters in the land of Abudance---Chengdu, Sichuan with US$500 million of regstered capital.



Our company is a high-tech companty putting R&D,production and sales into integrated for the fiber optic

cables and related accessories that are widely used in communication, electric power and other industries.



Yuantong owns a team with professional and technical skill, and has a great deal of experience in production

and sales. Quality First is the guideline of us.



Yuantong already has a significant partnership with China Telecom, China Mobile and China Unicom. Also we build good relationship with the customers from South America, Middle East and Southeast Asia,

praised by the majority of the users all around the world.

2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord2M Singlemode 9/125 Dupplex LC-LC Fiber Optic Jumper Patch Cord



Our Services

1.Order Information:

   Trade term: EXW/FOB/CIF

   Delivery Time: 3-5 working days time. 15-25 working days mass order.



2.Trade Terms:

    Payment term: T/T 30% Deposit after order confirmed, later delivery pay the 70% (remaining balance)

after goods ready before shipping.

   Sample: Be ready in 3~10 days once payment received.



3.Our services:

    For all your inqires about our product, we will reply to you within in 24 hours.

    We offer OEM and ODM services, and we can print your logo in our products.



Why Choose Yuantong Communication

Firstly, we are manufacturer for the truth, we can control the quility, delivery time, cost of raw material. In this

way, we can provide you with high-end product, competitive price and superb service.



Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading

terms and customer clearance documents. In this way, we will make your import process very smooth and

pleasant.



Thirdly, your every inquiry will be took seriously and replied immediately within 24 hours. If the inquiry is

complicated, we will reply you the second day.



Last but not the least, we have gained Alibaba trade assurance, so there is no worry about our quality.



Payment:

Massive order: T/T, T/T&LC, both are acceptable.

Small order: T/T, Credit-card, west-union are acceptable.



Shipping & Delivery

Delivery after balance money received, massive quantity by sea while small patch by air.



Warranty:

All products have been tested before delivery.

All products have 1 year's after-sale service. If there is no man-made problem, we will replace or repair for you

freely. Even after 1 year, if any problem happens, our team will do our best to help you figure it out. So you do

not neet to worry about it.
