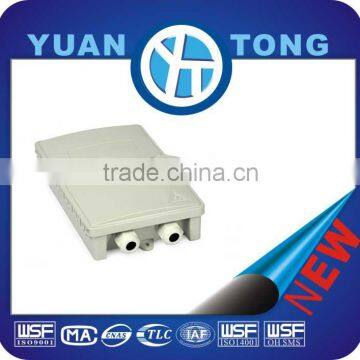

Outdoor Plastic Mini Fiber Optic Distribution Box

Outdoor Plastic Mini Fiber Optic Distribution Box

Production Description

Fiber optic distribution box is used for the distribution connection of cabla and fiber optic communication

devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective

connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for

outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of

local cable or drop cable, with capacity of 24 cores or 48 cores.

Features

1. The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters

2. Sealing with pressed strip, waterproof and dustproof with IP65

3. Special screw and key for its door lock; can be installed on wall or mounted on pole

4. Spare pigtails and drop cable can be save in storage part, convenience for maintenance

5. Special lock device for outlet of drop cable

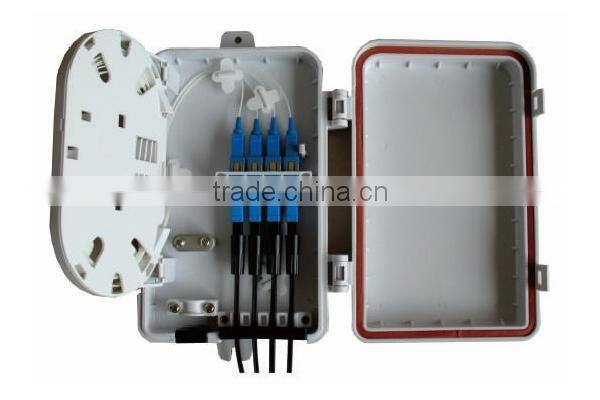

6. Bilayer structure, bottom for splicing and upper layer for splitting and distribution

7. There are 24-48 positions for adapters of FC, SC or ST

8. Maximum 2 pieces of splice tray for satisfying of connection

Technical Parameter

Working temperature: -20°C~+60°C

Relative humidity: ≤90%(+30℃)

Atmosphere pressure:62-106Kpa

Insertion Loss:lL ≤0.3dB(PC), 1L ≤0.3dB(APC)

Return Loss: PL≥40dB(PC), RL≥50dB(UPC), RL≥60dB(APC)

Accessories

Splice cassette and cable management tools, installation nuts and bolts, heat shrinking tube, rubber seal, hose clamp.

Certificates

Company Information

Sichuan Yuantong Communication Co.,Ltd was established in 2010, which covers an area of 4000 square

meters in the land of Abudance---Chengdu, Sichuan with US$500 million of regstered capital.

Our company is a high-tech companty putting R&D,production and sales into integrated for the fiber optic

cables and related accessories that are widely used in communication, electric power and other industries.

Yuantong owns a team with professional and technical skill, and has a great deal of experience in production

and sales. “Quality First” is the guideline of us.

Yuantong already has a significant partnership with China Telecom, China Mobile and China Unicom. Also we build good relationship with the customers from South America, Middle East and Southeast Asia,

praised by the majority of the users all around the world.

Our Service

1. Order Information:
    Trade term: EXW/FOB/CIF
    Delivery Time: 3-5 working days time. 15-25 working days mass order.

2. Trade Terms:
    Payment term: T/T 30% Deposit after order confirmed, later delivery pay the 70% (remaining balance) after goods ready before shipping.
    Sample: Be ready in 3~10 days once payment received.

3. Our services:
    For all your inqires about our product, we will reply to you within in 24 hours.
    We offer OEM and ODM services. Can print your logo in our products.
