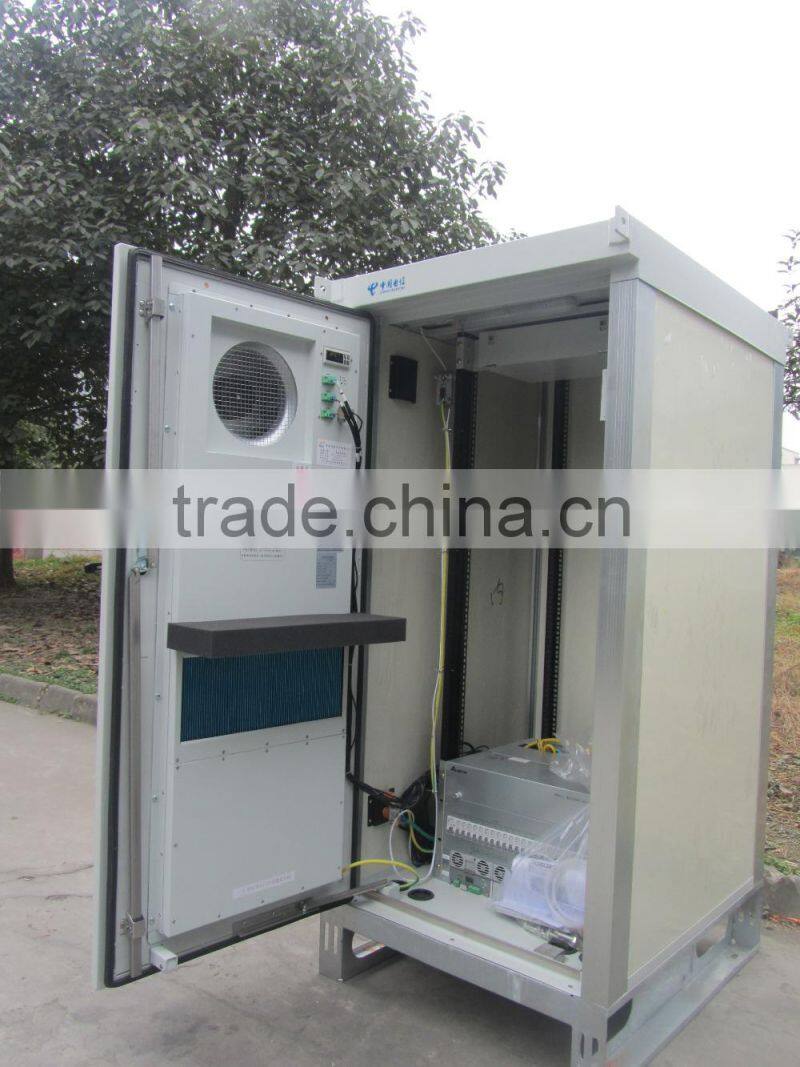

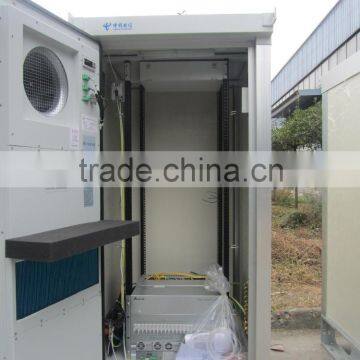

IP55 Distribution Telecom Cabinet Outdoor Use

Name: IP55 Distribution Telecom Cabinet Outdoor Use
Brand: Yuantong
SKU: 133333043
Availability: InStock

Sichuan Yuantong Communication Co., Ltd.

US$ 500 - 3,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Yuantong

Model Number:

YT-C315

Payment & Shipping

Payment Methods:

Port of Shipment:

CHONGQING/SHANGHAI/SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Yuantong

Model Number YT-C315

Product Description

Intergrated cabinet

upper-deck:equipment compartment

lower-deck:battery compartment

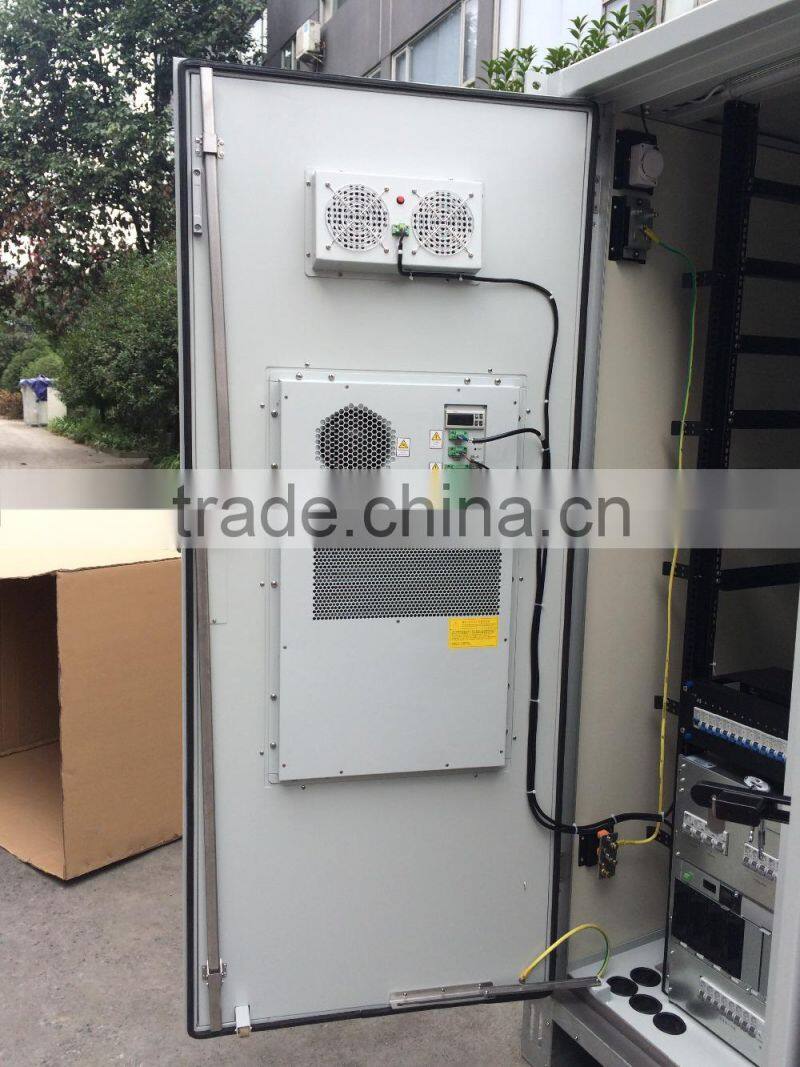

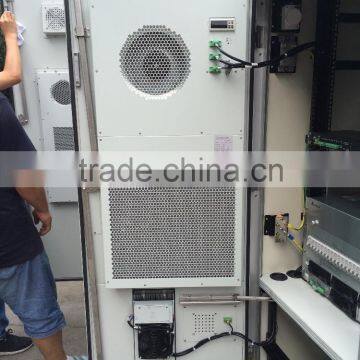

190W-80W heat exchange (upper) 200W TEC air conditioner (lower)

Outer size:1500*850*650

Meterial:sandwich color steel plate+aluminum profile+galvanized sheet+ Stainless Steel

Lighting:48V Led light

Power Supply:AC/DC power supply system


1	Cabinet Body	Main frame:1500650850; The body using 0.8mm thick color plate(outside) 0.5 mm thick color plate(inside) The sandwich using phenolic resin material	unit
2	Equipment comparment use temperature-controlled equipment (alternative )	Name: Heat exchange Specification:Heat exchange ability:190W/K	set
2		Name:compress air conditioner Specification:1500W	set
3	Battery comparment use TEC airconditioner	Name:TEC air conditioner Spe:TEC air con 200W	set
4	Power unit	AC/DC power supply system (AC system is 220V single phase,DC system is-48V output,150A rectification capacity,can charge the same capacity battery,Syetem made up of 3 50A rectification modules,remote control available,rectification capacity can expand to 600A as per requirement )	set
5	Packing	Wooden case	unit
