12F Singlemode Loosetube Single Jacket Outdoor Cable Non Armored

12F Singlemode Loosetube Single Jacket Outdoor Cable Non Armored

Description

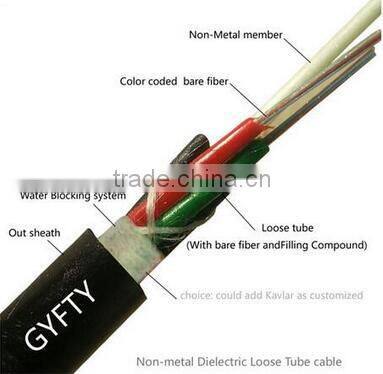

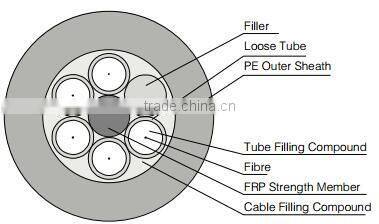

In the GYFTY cable,single-mode/multimode fibres are positioned in the loose tubes,which are made of hig modulus plastic materials, while the loose tubes strand together around non-metallic central strength member FRP into a compact and circular cable core.For certain high fibre count cables,the strength memeber would be covered with polyethylene PE.The water-blocking materials are distributed into the interstices of the cable core.Then the cable is completed with a PE sheath.

Characteristics

• Excellent mechanical and temperature performance guaranteed by the accurate excess fibre length
• Critical protection to fibres,based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube
• Excellent ultraviolet prevention with PE sheath
• Excellent crush resistance with PE sheath
• The following measures are taken to ensure the water blocking performance of the cable:FRP used as the central strength member;Special water-blocking filling compound in the loose tube;100% cable core filling

Application

           Duct/Aerial

Fibre acount

           2-36F,38-60F,2-42F,44-72F,2-48F,50-96F,98-120F,122-144F

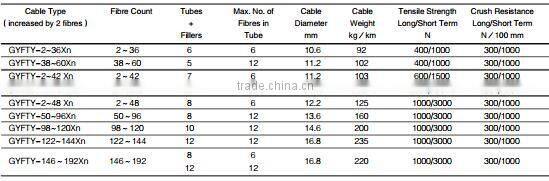

Parameter

 1.Can you provide free samples for us?

    Sure, we can provide the free samples for you, but the shipping cost need be on your account.

 2.What’s the lead time for all the goods that I required?

    About the 3-4 working days after getting payment,or depending on quantity.

 3.What’s the warranty for your products?

    Normally it is 2 years for accessories,20 years for optical cables.

 4.What’s your payment term?

    Usually TT.

 5.What’s the MOQ for your products?

    1pcs is okay.
