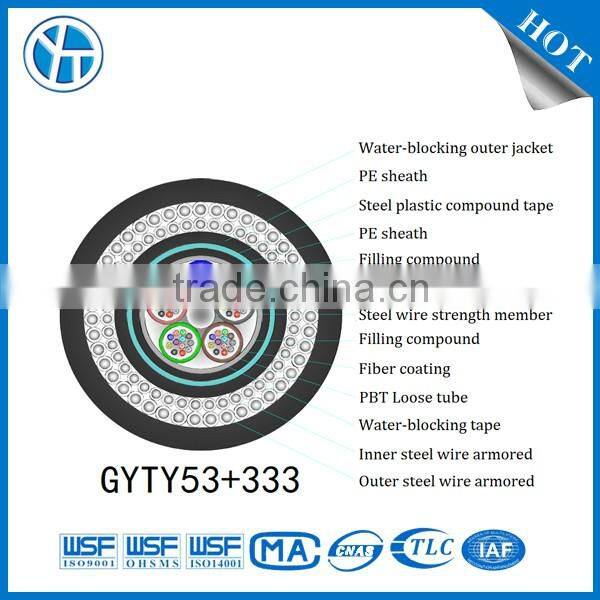

GYTY53+333 Layer Filling Loose Tube,FE Sheath,Corrugated Steel Tape PE Sheath Double Steel Wire Armored Fiber Optic Cable
US$ 280 - 600
MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
OEM/Yuantong
Model Number:
GYTY53+333
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing/Shanghai/Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GYTY53+33 Layer Filling Loose Tube Corrugated Steel Tape PE Sheath Single Steel Wire Armored PE Sheath Fiber Optic CableUS$ 280 - 600MOQ: 1 Kilometer -
GYTA34 Metallic Strength Member Layer Filling Loose Tube Single Steel Wire Armored PE Sheath Anti-termite Fiber Optic CableUS$ 280 - 600MOQ: 1000000 Kilometers
-
GYTZA33 Metallic Strength Member Layer Filling Loose Tube Single Steel Wire PE Outer Sheath Flame-retardant Fiber Optic CableUS$ 280 - 600MOQ: 1 Kilometer
-
GYTA33 Layer Filling Loose Tube Single Steel Wire PE Outer Sheath Outdoor Fiber Optic CableUS$ 280 - 600MOQ: 1 Kilometer
-
GYTY54 Layer Filling Loose Tube Corrugated Steel Tape Armored PE Sheath Anti-termite Fiber Optic CableUS$ 280 - 500MOQ: 1 Kilometer
Place of Origin
Sichuan, China
Brand Name
OEM/Yuantong
Model Number
GYTY53+333
Type
Coaxial
Product description
| No. | Model | Description | Applications |
| 1 | GYTA53 | GYTA53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Steel PE sheath, Corrugated steel tape armored,PE outer sheath | Pipeline laying&Direct burial |
| 2 | GYTA54 | GYTA54 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Aluminium PE sheath, Corrugated steel tape armored,PE outer sheath, Anti-termite | Pipeline laying&Direct burial,Anti-termite |
| 3 | GYTY53 | GYTY53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Corrugated steel tape armored,PE outer sheath | Pipeline laying&Direct burial |
| 4 | GYTZY53 | GYTZY53 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Corrugated steel tape armored,PE outer sheath,Flame-retardant | Pipeline laying&Direct burial |
| 5 | GYTY54 | GYTY54 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Corrugated steel tape armored,PE outer sheath,Anti-termite | Pipeline laying&Direct burial,Anti-termite |
| 6 | GYTA33 | GYTS04 outdoor fiber optic cable,Metallic strength member,layer filling loose tube, Steel PE sheath,anti-termite | Direct burial&Underwater laying |
| 7 | GYTZA33 | GYTZA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Single steel wire PE outer sheath, Flame-retardant | Direct burial&Underwater laying |
| 8 | GYTA34 | GYTA34 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Single steel wire armored,PE outer sheath, Anti-termite | Direct burial&Underwater laying,Anti-termite |
| 9 | GYTY53+33 | GYTY53+33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,FE sheath,Corrugated steel tape PE sheath,Single steel wire armored,PE outer sheath | Direct burial&Underwater laying |
| 10 | GYTY53+333 | GYTY53+333 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,FE sheath,Corrugated steel tape PE sheath,Double steel wire armored,PE outer sheath | Direct burial&Underwater laying |
| 11 | GYTA53+333 | GYTA53+333 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,Aluminium-armored,FE sheath,Corrugated steel tape PE sheath,Double steel wire armored,PE outer sheath | Direct burial&Underwater laying |
| No. | Model | Tensile Strength (N) | Crush Resistance (N/100mm | Bned Radius (mm) | Working Temperature(℃) | Max. attenuation (dB/km) | |||||
| Long term | short term | Long term | short term | Static(D) | Dynamic (D) | Min.TA | Max.TB | 1310μm | 1550μm | ||
| 1 | GYTA53 | 1000 | 3000 | 1000 | 3000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 2 | GYTA54 | 1000 | 3000 | 1000 | 3000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 3 | GYTY53 | 1000 | 3000 | 1000 | 3000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 4 | GYTZY53 | 1000 | 3000 | 1000 | 3000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 5 | GYTY54 | 1000 | 3000 | 1000 | 3000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 6 | GYTA33 | 4000 | 10000 | 3000 | 5000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 7 | GYTZA33 | 4000 | 10000 | 3000 | 5000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 8 | GYTA34 | 4000 | 10000 | 3000 | 5000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 9 | GYTY53+33 | 4000 | 10000 | 3000 | 5000 | 12.5 D | 25 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 10 | GYTY53+333 | 10000 | 20000 | 3000 | 5000 | 15 D | 30 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
| 11 | GYTA53+333 | 10000 | 20000 | 3000 | 5000 | 15 D | 30 D | -40℃ | +60℃ | ≤0.36 | ≤0.22 |
Packaging & Shipping
Our Certifications
Our Partners
Our Services
1. Order Information:
Trade term: EXW/FOB/CIF
Delivery Time: 3-5 working days time. 15-25 working days mass order.
2. Trade Terms:
Payment term: T/T 30% Deposit after order confirmed, later delivery pay the 70% (remaining balance) after goods ready before shipping.
Sample: Be ready in 3~10 days once payment received.
3. Our services:
For all your inqires about our product, we will reply to you within in 24 hours.
We offer OEM and ODM services, and we can print your logo in our products.
FAQ
1.Can you provide free samples for us?
Sure, we can provide the free samples for you, but the shipping cost need be on your account.
2.What’s the lead time for all the goods that I required?
About the 3-4 working days after getting payment,or depending on quantity.
3.What’s the warranty for your products?
Normally it is 2 years for accessories,20 years for optical cables.
4.What’s your payment term?
TT/ LC/ Paypal all are ok.
5.What’s the MOQ for your products?
1pcs is okay.
