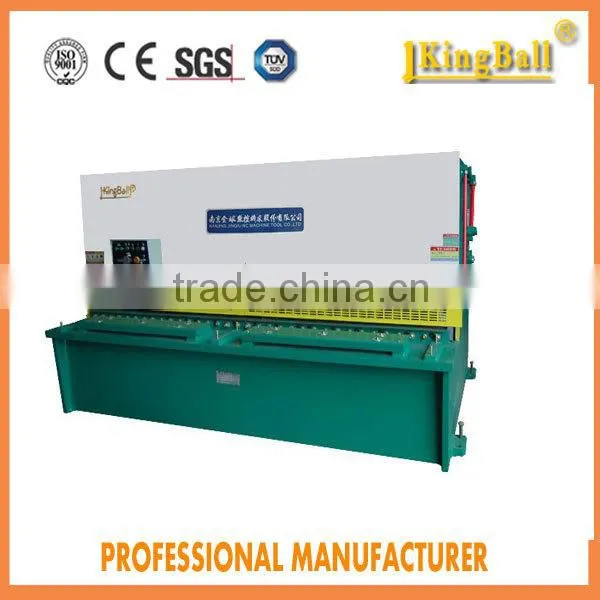

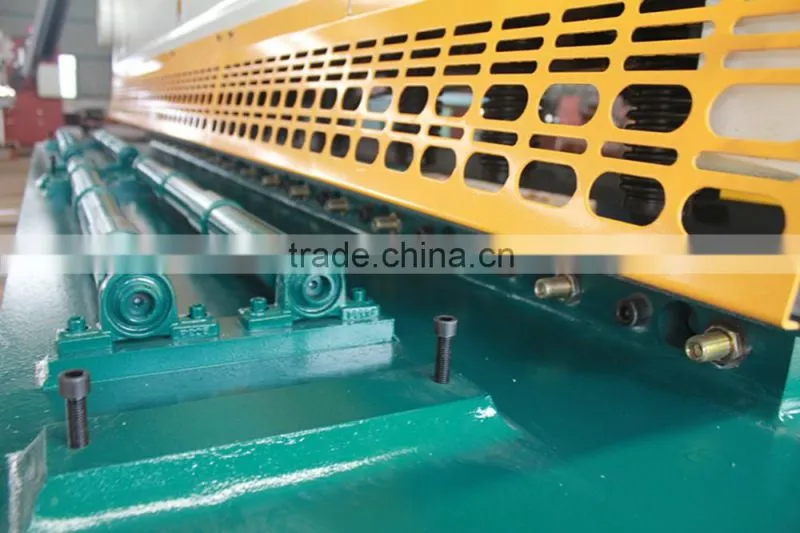

cnc guillotine shear,cnc hydraulic shearing machine
- 80 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Omax Maxiem Pump Minor Maint 302700 Retainer Man 301873 301353 Ring Seal 303274 Major Maintenance Kit
- Dual Port Swivels Seal Replacement Kit 308616 Package for Omax 308620-1 2 3
- 60KPSI SL-IV SL-V WK000216 05007786 Bushing Retainer Flange for KMT Water Jet Cutting
- Waterjet Spare Parts 90K WK000190 189 20468617 20475871 Pneumatic Dump Valve
- 1-14493 UHP 90 degree 1/4 in. 94k Waterjet Repair Kit 015093-1 Swivel Rebuild Kit for Water Jet Cutt
- Hydraulic Waste Car Body Shell Gantry Shear Machine for Scrap Recycling Center
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | KingBall |
Model Number: | QC11Y-8X3200 | Voltage: | 380V | Rated Power: | 11kw |
Dimension(L*W*H): | 3850*1890*2050mm | Weight: | 7000kg | Certification: | CE ISO |
Warranty: | 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
WELCOME TO CHINA TO VISIT OUR FACTORY
We manufacture press brake ,shearing machine,rolling machine and many other products.

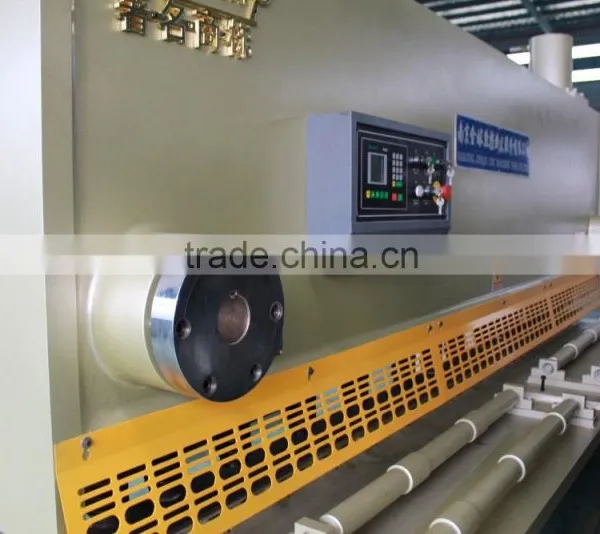

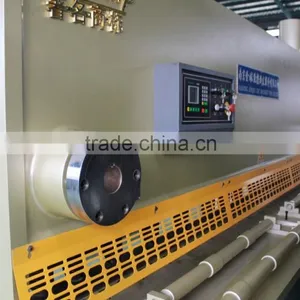

1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

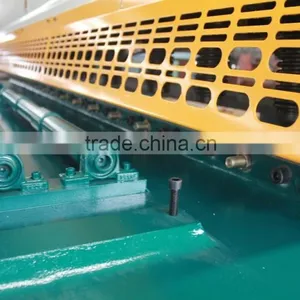

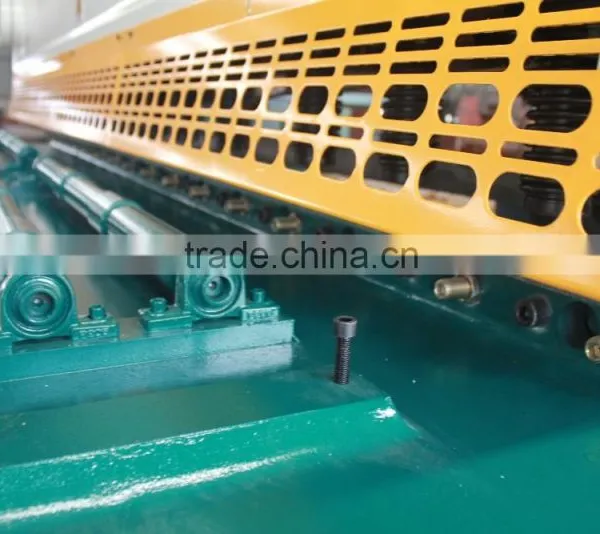

2. Stepless control for the stroke; the gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety.
3. The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge. Moreover, CNC system has the accessory functions of compensation and automatic check.
ITEMS | PARAMETER | UNIT |
Model | QC11Y-8X3200 | set |
Cutting Thickness | 8 | mm |
Cutting Width | 3200 | mm |
Cutting Angle | 0.5°-2° | 0 |
Backgauge Range | 20-600 | mm |
Stroke Number | ≥10 | times/min |
Main Motor | 11 | kw |
Weight | 7000 | kg |
Overall Dimension | 3850x1890x2050 | LXWXH in mm |
Hydraulic system of CNC hydraulic shearing machine
1. BOSCH hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups.
2. Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board.
3. All seals use Japan NOK good quality and high performance
4. Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.
Electric control system of CNC hydraulic shearing machine
1. Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
3. Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light.

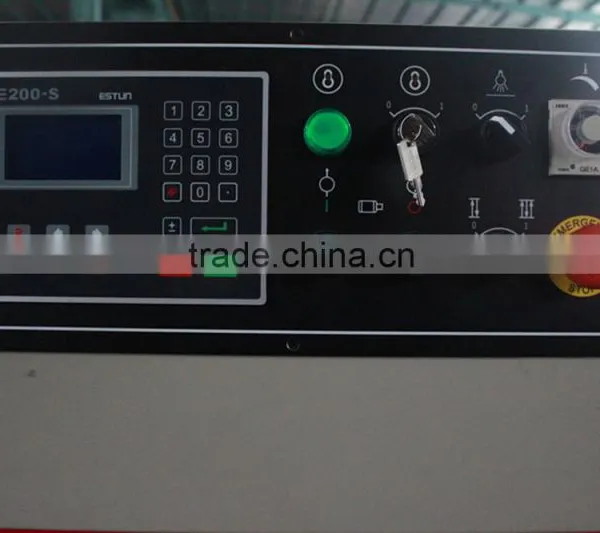

shearing machine controller: E200S
E200S features
1. Backgauge control.
2. BUS mode control servo system.
3. Stroke length Limitation.
4. Double programmable digital output.
5. Program memory of up to 40 programs up to 25
6. One side positioning.
7. Retract function.
8. mm/Inch.
9. Chinese/English.
shearing machine controller: DAC360
DAC360 features
1. Backgauge control
2. Bright LCD display, 275x 48 pixels
3. Gap or Angle control
4. Stroke length limitation
5. Actual and programmed position visualisation
6. Stock counter
7. Up to 100 working steps programmable
8. Panel based housing
9. Servo, frequency inverter drive, two-speed AC motor control
shearing machine controller: DAC310
DAC310 features
1. Panel based housing
2. Bright LCD screen
3. Backgauge control
4. Retract function
5. Cutting angle control
6. Cutting gap control
7. Stroke length limitation
8. Manual movement of axes
9. Force control
Packaging Details: | Packed in wooden cases or in nude for shearing machine,hydraulic cnc shearing machine,hydraulic shear mach |
We also have the cutting machines, rolling machines and other machines. If you want to know more about our products, please contact us. Thanks.
Customer manager: Cissy
M. P: 0086-15151876897
Tel: 0086-52491558
Skype:jq.cissy
Nanjing Jinqiu CNC Machine Tool Co., Ltd
WELCOME TO CHINA TO VISIT OUR FACTORY
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
Our factory is in Nanjing near Shanghai with more than 15 years history,doing ALIBABA for 6 years, focusing on manufacture hydraulic shearing machine ,press brake ,rolling machine,mould and blades.
We have many clients in the world.Welcome to talk business and sending inquiry.
