Zinc Oxide Varistor

Zinc Oxide Varistor thumbnail-1
Zinc Oxide Varistor photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
FaYun
Model Number:
MYL
Contact Supplier Request Quote Chat Now
Shijiazhuang Fayun Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name FaYun
Model Number MYL
Type Varistor
Technology Metal Oxide
Package Type Other
Resistance Tolerance ±10%

Specifications

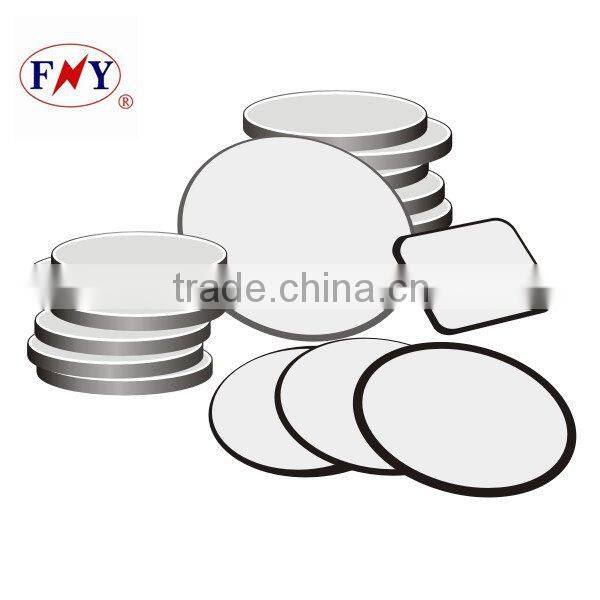

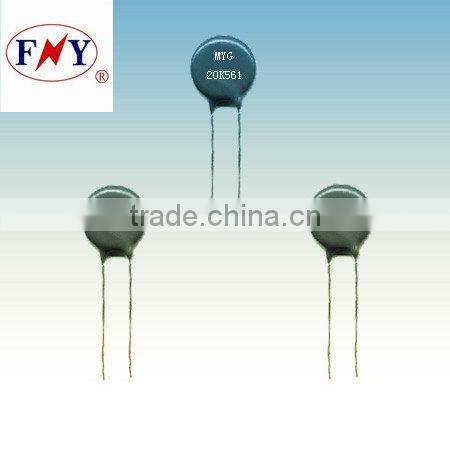

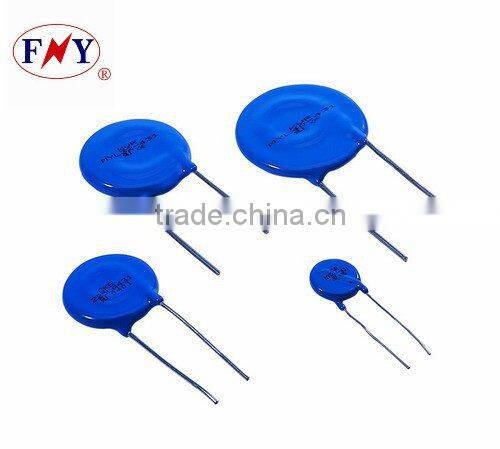

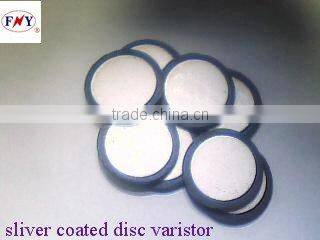

Zinc oxide varistor
1.voltage:47-1200V,Diameter:60mm
2.Homeappliace
3.Industrial equipment Protection of semiconductor

Zinc oxide varistor



Usage: The metal oxide varistors are non-linear resistors utilize a semiconductor electronic cermaic element mainly composed of Zinc Oxide and ites resistance change as a function of the applied voltage.

Recommended Applications:

Protection of semiconductor

Surge protection of consumer equipment

Surge protection of communication,measuring or controller instrument

Relay of electro magnetic valve surge instrument.



       MODEL NO.   VARISTOR VOLTAGE  MAX. CONTINUOUS VOLTAGE  MAX. CLAMPING VOLTAGE 8/20μS MAX.ENERGY(J) MAX. PEAK CURRENT   (8/20μS)(A)
VDC(V) VACrms(V)   VDC(V) VXA(V) IP(A) 2ms 1 time 2 times
MYL-60D201K 200(180-220) 130 170 340 350 450 50000 30000
MYL-60D221K 220(198-242) 140 180 360 350 450 50000 30000
MYL-60D241K 240(216-264) 150 200 395 350 530 50000 30000
MYL-60D271K 270(243-297) 175 225 455 350 550 50000 30000
MYL-60D301K 300(270-300) 190 245 495 350 600 50000 30000
MYL-60D331K 330(297-363) 215 275 540 350 650 50000 30000
MYL-60D361K 360(324-396) 230 300 595 350 700 70000 45000
MYL-60D391K 390(351-429) 250 320 650 350 880 70000 45000
MYL-60D431K 430(387-473) 275 350 710 350 950 70000 45000
MYL-60D471K 470(423-517) 300 385 775 350 1000 70000 45000
MYL-60D511K 510(459-561) 320 415 855 350 1100 70000 45000
MYL-60D561K 560(504-616) 350 455 945 350 1200 70000 45000
MYL-60D621K 620(558-682) 380 505 1025 350 1300 70000 45000
MYL-60D681K 680(612-748) 420 560 1120 350 1500 70000 45000
MYL-60D751K  750(675-825) 460 615 1240 350 1600 70000 45000
MYL-60D821K 820(738-902) 510 670 1355 350 1800 70000 45000
MYL-60D911K 910(819-1001) 550 745 1500 350 2200 70000 45000
MYL-60D102K 1000(9000-1100) 625 825 1650 350 2200 70000 45000
MYL-60D112K 1100(990-1210) 680 895 1815 350 2350 70000 45000
MYL-60D122K 1200(1080-1320) 705 970 1980 350 2600 70000 45000









Zinc oxide varistorZinc oxide varistorZinc oxide varistorZinc oxide varistor
