Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Metal Oxide Varistor (Diameter: 28mm~35mm)

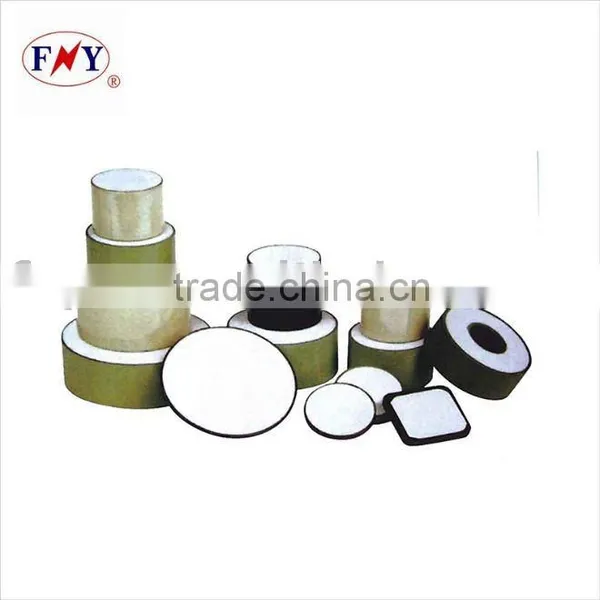

Metal Oxide Varistor (Diameter: 28mm~35mm)

Name: Metal Oxide Varistor (Diameter: 28mm~35mm)
Brand: FaYun
SKU: 133318407

Metal Oxide Varistor (Diameter: 28mm~35mm) thumbnail-1

Metal Oxide Varistor (Diameter: 28mm~35mm) photo-1

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

FaYun

Model Number:

D2-D3

Contact Supplier Request Quote Chat Now

Shijiazhuang Fayun Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name FaYun

Model Number D2-D3

Type Varistor

Technology Metal Oxide

Package Type Other, Other, Surface Mount

Specifications

Metal oxide Varistor
1.Used:arrester and insulators
2.Diameter:28-35mm
3.Residual Voltage at1mA 0.22-0.38KV
4.Height:3.5mm

Metal oxide Varistor

Metal Oxide Varistor is the core of the arrester.

Metal Oxide Varistor is the core of the arrester, which main component is Zinc Oxide and with a small quantity of bismuth Oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive and made with high temperature.

As zinc oxide varistor has a good voltage-ampere (Non-linearity) characteristic, hence the zinc oxide varistor is a very important components applied to surge arrester

Features of the MOV Disks:

Excellent non-linear characteristics
Full face metalized electrodes
Meets IEC and ANSI standards
100% production tested
ISO 9001 certified factory
Available in ratings (Ur) of 1kV,1.5kV,3 kV, 4.0 kV,4.5
All ratings available in 5 kA and 10 kA (IEC Class 1) disks

Voltage rating	Diameter	Height	U1mA Voltage	0.75U1mA leakage Current	U1.5KA/ U1mA	2mS rectangular
KV	mm	mm	KV	uA		A
0.22	28^±^0.5	3.5^{+0.5 -0}	0.8^±^0.05	≤10	1.6	100
	30^±^0.5	3.5^{+0.5 -0}	0.8^±^0.05	≤10	1.58	100
	31^±^0.5	3.5^{+0.5 -0}	0.8^±^0.05	≤10	1.58	100
	35^±^0.5	3.5^{+0.5 -0}	0.8^±^0.05	≤10	1.55	100
0.38	28^±^0.5	5.5^{+0.5 -0}	1.25^±^0.03	≤10	1.6	100
	30^±^0.5	5.5^{+0.5 -0}	1.25^±^0.03	≤10	1.58	100
	31^±^0.5	5.5^{+0.5 -0}	1.25^±^0.03	≤10	1.58	100
	35^±^0.5	5.5^{+0.5 -0}	1.25^±^0.03	≤10	1.55	100
