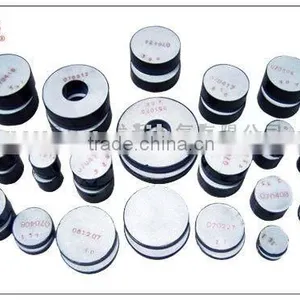

Help CenterMOV Metal Oxide Varistor
Related Products
Specifications
Metal oxide Varistor1.Used:arrester and insulators
2.Diameter:35-71mm
3.Residual Voltage at1mA 4.5-5KV
4.Height:22.5-24mm
Metal oxide Varistor(MOV)
Metal Oxide Varistor is the core of the arrester.
Metal Oxide Varistor is the core of the arrester, which main component is Zinc Oxide and with a small quantity of bismuth Oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive and made with high temperature.
As zinc oxide varistor has a good voltage-ampere (Non-linearity) characteristic, hence the zinc oxide varistor is a very important components applied to surge arrester
Features of the MOV Disks:
Excellent non-linear characteristics
Full face metalized electrodes
Meets IEC and ANSI standards
100% production tested
ISO 9001 certified factory
Available in ratings (Ur) of 1kV,1.5kV,3 kV, 4.0 kV,4.5
All ratings available in 5 kA and 10 kA (IEC Class 1) disks
| modle | outside diameter | inside diameter | Height mm | Residual Voltage at 1mA D.C. | Residual Voltage at 8/20 μs KV(max.) | Residual ratio of Voltage | 4/10 μs 2 times high current | 18times of 2μs rectangular current impulse | Usage | ||
| mm | mm | mm | KV | 5kA | 10kA | 5kA | 10kA | kA(max.) | kA(max.) | ||
| D3 | 35+0-1 | 24±1 | 5.0±0.5 | 9.5±0.8 | 1.85 | 65 | 150 | Distribution Power Station | |||
| D4 | 42±1 | 24±1 | 5.0±0.5 | 9.2±0.8 | 1.8 | 100 | 300 | Power Station Electric mahinery Parallel complementary capacitor | |||
| D5 | 52±1 | 24±0.5 | 4.7±0.5 | 8.1±0.8 | 8.4±0.8 | 1.72 | 1.79 | 100 | 500 | Power Station Electric mahinery | |
| D6 | 59±1 | 22.5±0.5 | 4.5±0.5 | 7.5±0.8 | 8.0±0.8 | 1.66 | 1.77 | 100 | 800 | ||
| D7 | 71+1-0 | 26+1-0 | 22.5±0.5 | 4.5±0.5 | 7.1±0.7 | 7.7±0.7 | 1.58 | 1.7 | 100 | 850 | Power Station |
