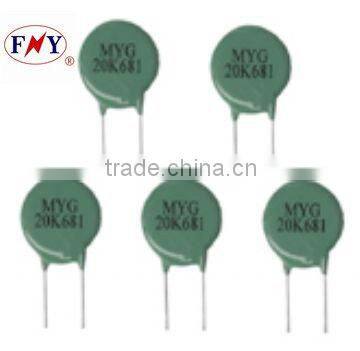

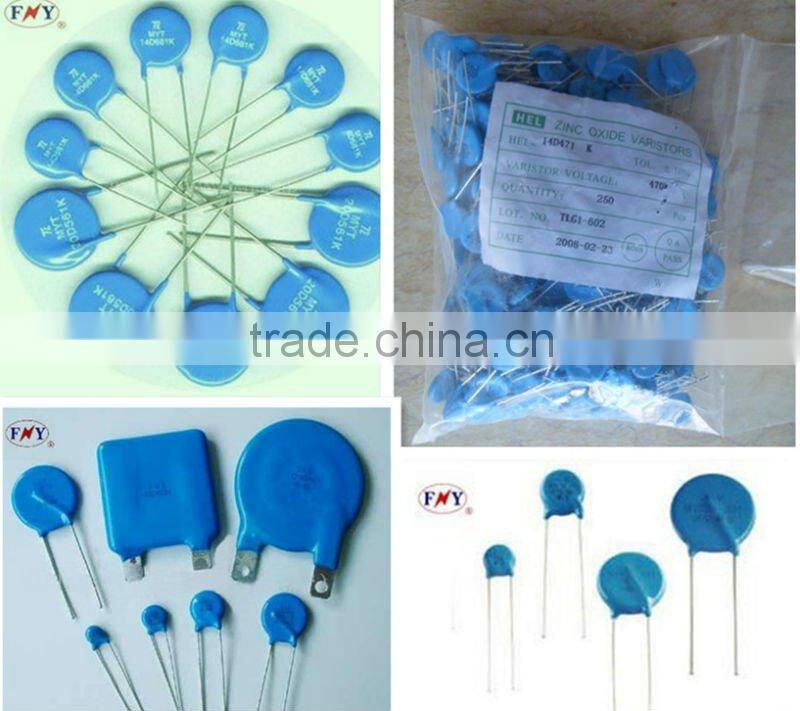

Metal Oxide Varistor
Negotiable
/ Piece
10000 Pieces(Min.Order)
- 0 per Month
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | FY | |
| Model Number | varistor | Type | Varistor | |
| Technology | Metal Oxide | Package Type | Throught Hole | |
| Resistance | 1400 | Resistance Tolerance | ±10% | |
| Rated Power | 0.025 | Operating Temperature | -40 ~ +85°C |
Product Description
Specifications
varistor with fast response to the rapidly rising surge voltageelement dia 5,7,10,14,20,25,32,40,53f
varistor voltage:18
MYGMetal oxide varistor:
Specifications of varistors:
Sizes: 14, 20, 25, 32, 40, 53, 60mm, 14s, 20s, 25s, 34s
Steady state AC voltage range (Vm): 130V - 1600V
High peak surge current rating (I tm) 8/20 us pulse: 6500A - 70000A
Single-pulse energy range (Wtm) 2ms square wave: 45J - 3200J
Average power dissipation of transients: < 0.60W - < 2.50W
Operating temperature range: -55 deg. C - +85 deg. C
Storage temperature range: -55 deg. C - +125 deg. C
Hi-pot encapsulation (isolation voltage capability): 2500Vdc
Insulation resistance: 1000M ohms
Maximum voltage-temperature coefficient: < 0.01% / deg. C
Response time: < 25ns
