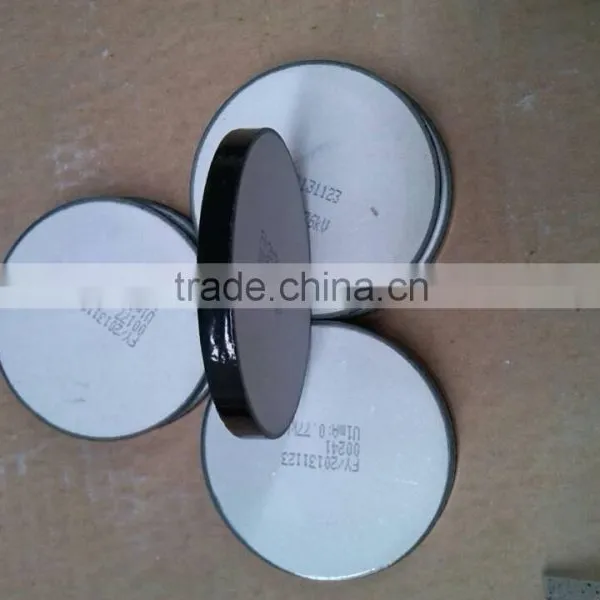

Varistor For Lightning Arrester
Negotiable
/ Piece
100 Pieces(Min. Order)
- SHANGHAI
- T/T
You May Like
Product Details
| Brand Name | FY | Model Number | D3,D4,D5,D6,D7,D8 | |
| Type | Varistor | Technology | Metal Oxide | |
| Package Type | Other |
Product Description
Specifications
This varistor is the main core of metal oxide arrester and enjoy the advantage of non-linear current valtage.The main technical propertity of Zinc Oxide Varistor
| Diameter | Height | U1mA Voltage | 0.75U1mA leakage Current | U1.5KA/ U1mA | 2mS rectangular |
| mm | mm | KV | uA | A | |
| 28±0.5 | 3.5+0.5 -0 | 0.8±0.05 | ≤10 | 1.6 | 100 |
| 30±0.5 | 3.5+0.5 -0 | 0.8±0.05 | ≤10 | 1.58 | 100 |
| 31±0.5 | 3.5+0.5 -0 | 0.8±0.05 | ≤10 | 1.58 | 100 |
| 35±0.5 | 3.5+0.5 -0 | 0.8±0.05 | ≤10 | 1.55 | 100 |
| 28±0.5 | 5.5+0.5 -0 | 1.25±0.03 | ≤10 | 1.6 | 100 |
| 30±0.5 | 5.5+0.5 -0 | 1.25±0.03 | ≤10 | 1.58 | 100 |
| 31±0.5 | 5.5+0.5 -0 | 1.25±0.03 | ≤10 | 1.58 | 100 |
| 35±0.5 | 5.5+0.5 -0 | 1.25±0.03 | ≤10 | 1.55 | 100 |
