Specifications
1.Long time stable running,2.low maintenance cost;
3.Ultra-narrow gap,edge joint 6.3mm
4.CE,RoHS,FC

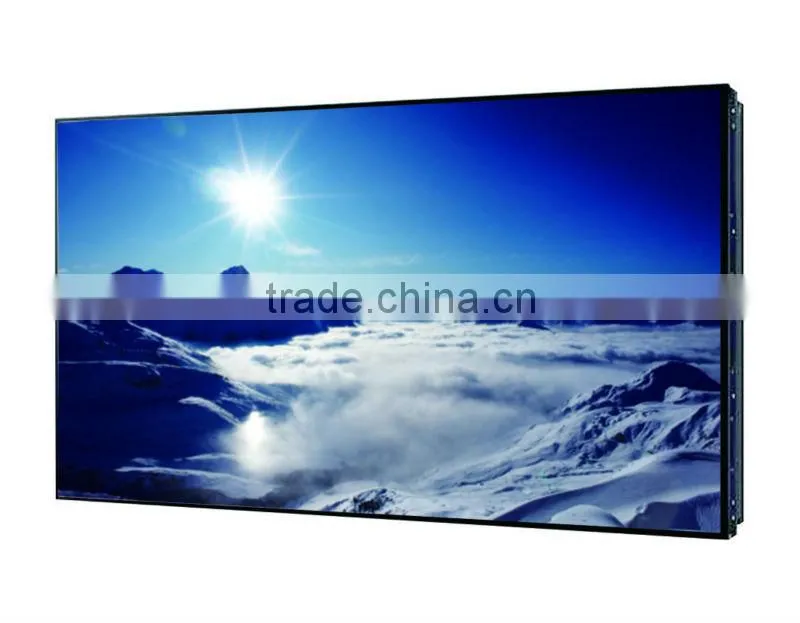

Wholesale 46,47,55,60 Inches lcd Video Wall With HD for lcd display
The bilateral flat-fell seam of 55'' ultra narrow splicing LCD wall is 5.3mm,truly realizing the seamless splicing of large screen display.While it has the super large display area ,the whole product also has the advantages of thin thickness and low weight. Yitelang unique way of splicing steel frame structure make the splicing wall more easily arbitrary spliced and installed.The digital display effect :assure no chromatic aberration,the image is clear and delicate,the color is bright and colorful.
Features
(1) Flat-fell seam between the non-display area is only 5.3 mm;
(2) Using Yitelang image point pixel dynamic cutting processing technology to compensate for the details of image, it can make the low pixel image display clearly;
(3) The screen bodies use unified international multinational group three major brands such as Samsung, LG and Sharp and so on;
(4) LCD product itself with low power consumption and last much longer.
(5) Through RS232 serial port to realize the remote control function; rapid response identification technology, to ensure that the video will play smoothly and pictures show without distortion;
(6). Service life of this product can up to 50000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation.

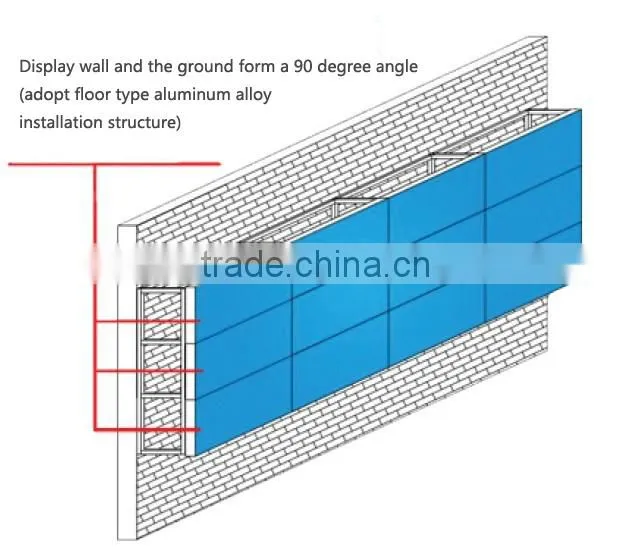

Installation introduction
The shell of splicing screen is SPCC. It has intelligent temperature control system built-in. The screen uses industrial-grade LCD screen which produced by several multinational companies such as Samsung,LG,Sharp etc.

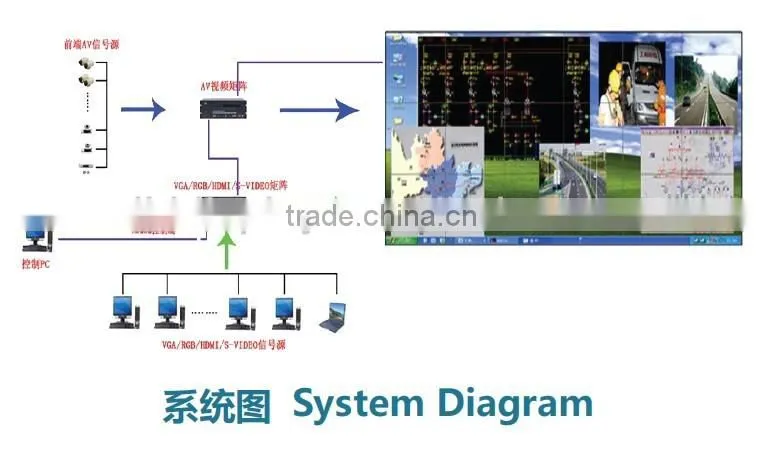

System introduction
We generally use multi-frequency signal processors,matrices,screen cutters and other hardware devices to realize LCD splicing images high-end display functions such as cross-screen,roaming,PIP, overlay ,scaling and so on.
Yitelang provides the most suitable system solution according to different splicing systems’ environmental requirements,sizes and applications from customers.
Parameters
| Model | ETP-46-UN | ETP-47-UN | ETP-55-UN | ETP-60-UN |
| Resolution ratio | 1366*768P | 1920*1080P | 1920*1080P | |

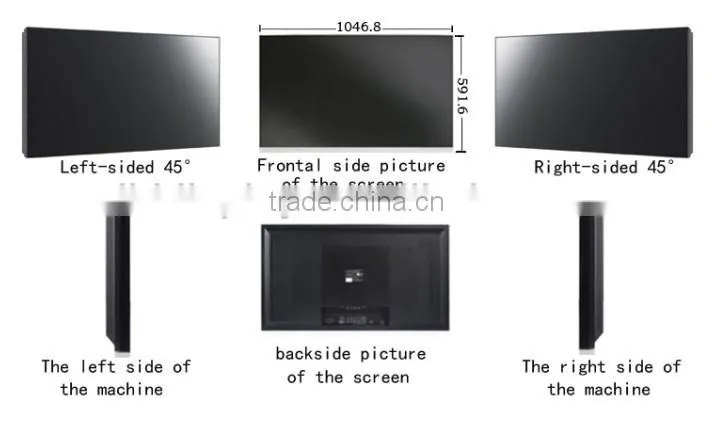

| Appreance size | 1025.6*580*105mm | 1046.8*591.6*93.5mm | 1215.4*686.1*122mm | 1335*754.2*80mm |
| Display area | 1018.9*573.3mm | 1039.87*584.64mm | 1209.9*680.6mm | 1328.0*747.7mm |
| Maximum power | 250W | 250W | 350W | 500W |
| Rated Power | 180W | 180W | 280W | 420W |
| Bilateral splicing seam | 6.7mm | 6.3mm | 5.3mm | 2.8mm |
| Total weight | 24.7KG | 25.4KG | 34.6KG | 26.3KG |
| Brightness | 450-700cd/m2 | 700cd/m2 | ||
| Contrast | 3000:1 | 6000:1 | ||
| Reponse time | 8ms | 5ms | ||
| Visual angle | 178° | 179° | ||
| Line frequency | 65-70Hz | Subdomain drive 600Hz | ||
| Field frequency | 60Hz | |||
| Color system | PAL/NTSC | |||
| Input/Output |
1Vp-p, 75 Ω ,BNC×2 |
|||
| HDMI/DVI/VGA input | ×1 | |||
Communiation interface |
Rs232 loops input/output | |||
| Power | AC110V-240V, 50/60Hz | |||
| Temperature | 0-60°C | |||
| Humidity | 10%~90% | |||
| Operation | PC control software for the big screen | |||
| Cooling | Intelligent temperature control cooling system | |||
| Case Material | SPCC | |||
| Installation | Cabinet type/Floor-type/Wall-mounted | |||

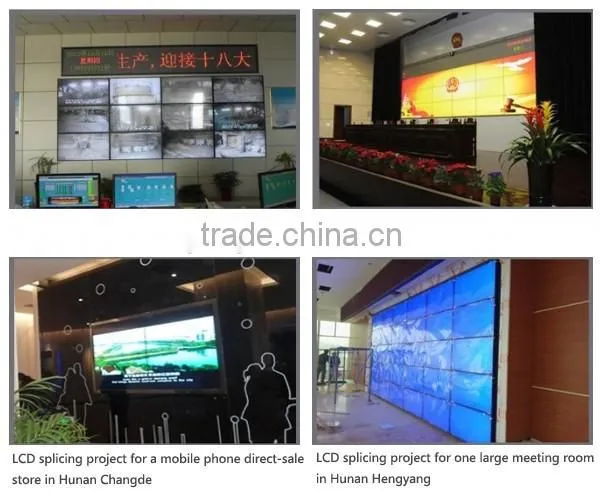

Application and solution
About us
Shenzhen Yitelang co.,ltd was founded in November,2005,one of the most powerful and professional manufacturers in China.It belonging to high-tech enterprises in Shenzhen.Yitelang is located in the beautiful and elegant, convenient transportation of Yeming Mould industrial park of Guangming disturict in Shenzhen,our factory covers an area of 50000 square meters,and now we have more than 300 employees,which is a production, research, development, sales as one integrated high-tech enterprises.
Since the establishment of the company,focus on LCD products,application of touch and R&D technology,application in various commercial display and promotion work,especially in the field of liquid crystal display,the company has been formed to "PROPAD" brand,digital signage and advertising products covering various public sites.Series of products and services to enterprises of all types of multimedia conference systems.
Certification
