Whole Sale 47 Inches Slim Splicing LCD Video Walls Ultra Narrow Bezel LCD Video Wall
Specifications
ultra narrow LCD Splicing Video Wall, TV WallIntegrated LCD Video wall processor
Full HD
whole sale 47 inches slim splicing LCD video walls ultra narrow bezel LCD Video Wall
Product features
1) Bulit-in Splicing wall controller, splicing display techniques on each single screen unit ,can be adjusted by software
2) RS232 control function , Remote Control via RS232,more flexible and convenient
3) Series connection and ID Control Function ,the screen can be connected via RS232 and ID number setted for each screen, then achieve joint controll for all the screens , or single control for each screen
4) Screen calibration function , Support Splice picture misalignment compensation and also can support any combination of M * N splicing wall.
5) 6-axis color adjustment function. More natural and vivid colors
6) Intelligent temperature control function . Built-in fan, the effective cooling, energy-efficient and extend product life
7) Switcher management functions . Built-in clock setting, the user can customize the Automatic time to open or close
8) Low power consumption, long life, support 24/7 operation ,24 hours a day, 7 days a week .
9) Dual direction 178° Large viewing angle .to make sure the Images without distortion, color distortion
10) Multi-frequency signal processors,matrices,screen cutters and other hardware devices to realize LCD splicing images high-end display, such as cross-screen, roaming,PIP,overlay,scaling.
Specifications
1.Long time stable running,
2.low maintenance cost;
3. 47 inches video wall with a 6.3mm seam.
4.LG DID panel
| Panel | |
| Diagonal size | 47inches |
| Display resolution | 1920×1080P |
| Viewing area(mm) | 1039.87(H)×584.64(V) |
| Dot pitch | 0.5415 mm × 0.5415 mm |
| Brightness | 700cd/m2 |
| Viewing angle | 178° |
| Response time | 8ms |
| Contrast | 3000:1 |
| Connectivity | |
| Line frequency/field frequency | 65~75KHz/60Hz |
| Color signal type | PAL/NTSC |
| CVBS input/output | 1Vp-p,75Ω,BNC×2 |
| HDMI/DVI/VGA input | ×1 |
| Communication interface | RS232 loops input/output |
| Power | |
| The power range | AC100~240V,50/60Hz |
| Maximum power consumption | 250W |
| Machinery specification | |
| The whole machine size | 1068×613.2×93.5mm |
| Total weight | About 28.5kg |
| Casing materials | SPCC |
| Bilateral flat-fell seam | 6.3mm |
| Environment | |
| Operating temperature | 0°C~60°C |
| Operating humidity | 10%~90% |

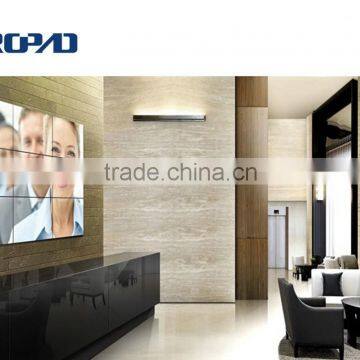

Photo Show
