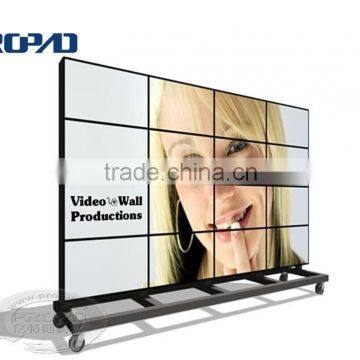

Whole Sale 3x3 40"42"46"47"55"inch 4X4 Samsung Panel LCD Video Wall HD LCD Screen Display
US$ 1 - 1,200
MOQ: 3 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PROPAD
Model Number:
40"42"46"47"55"
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Whole Sale 47 Inches Slim Splicing LCD Video Walls Ultra Narrow Bezel LCD Video WallUS$ 1 - 1,300MOQ: 3 Sets -
Whole Sale 55 Inch LCD Seamless LCD Video Wall DisplayUS$ 1 - 1,200MOQ: 3 Sets
-
55 Inch Ultra Narrow Splicing LCD Video Wall Custom Display ModulesNegotiableMOQ: 1 Set
-
2015 New 4K UHD 84 Inches 2x2 Super Large Size LCD Film Video WallUS$ 1 - 3,000MOQ: 1 Set
-
Whole Sale 55 Inch Samsung Did Lcd Video Wall 5.3mmNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
PROPAD
Model Number
40"42"46"47"55"
Type
TFT
Specifications
ultra narrow LCD Splicing Video Wall, TV WallIntegrated LCD Video wall processor
Full HD
About product
Features for ETP - 46 - UN super-slim splicing screen :
(1) Flat-fell seam between the non-display area is only 5.3 mm;
(2) Using Yitelang image point pixel dynamic cutting processing technology to compensate for the details of image, it can make the low pixel image display clearly;
(3) The screen bodies use unified international multinational group three major brands such as Samsung, LG and Sharp and so on;
(4) LCD product itself with low power consumption and last much longer.
(5) Through RS232 serial port to realize the remote control function; rapid response identification technology, to ensure that the video will play smoothly and pictures show without distortion;
(6). Service life of this product can up to 50000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation.
Specifications
1.Long time stable running,
2.low maintenance cost;
3.Ultra-narrow gap,edge joint 5.3mm
4.Samsung DID panel
Dimension
| Model | ETP-46-UN | ETP-47-UN | ETP-55-UN | ETP-60-UN |
| Resolution ratio | 1366*768P | 1920*1080P | 1365*768P | |
| Appreance size | 1025.6*580*105mm | 1046.8*591.6*93.5mm | 1215.4*686.1*122mm | 1322.3*745.7*71mm |
| Display area | 1018.9*573.3mm | 1039.87*584.64mm | 1209.9*680.6mm | 1318.6*741.9mm |
| Maximum power | 250W | 250W | 350W | 500W |
| Rated Power | 180W | 180W | 280W | 420W |
| Bilateral splicing seam | 6.7mm | 6.3mm | 5.3mm | 2.8mm |
| Total weight | 24.7KG | 25.4KG | 34.6KG | 26.3KG |
| Brightness | 700cd/m2 | 1700cd/m2 | ||
| Contrast | 3000:1 | 1000000:1 | ||
| Reponse time | 8ms | 0.001ms | ||
| Visual angle | 178° | 179° | ||
| Line frequency | 65-70Hz | Subdomain drive 600Hz | ||
| Field frequency | 60Hz | |||
| Color system | PAL/NTSC | |||
| Input/Output |
1Vp-p, 75 Ω ,BNC×2 |
|||
| HDMI/DVI/VGA input | ×1 | |||
Communiation interface |
Rs232 loops input/output | |||
| Power | AC110V-240V, 50/60Hz | |||
| Temperature | 0-60°C | |||
| Humidity | 10%~90% | |||
| Operation | PC control software for the big screen | |||
| Cooling | Intelligent temperature control cooling system | |||
| Case Material | SPCC | |||
| Installation | Cabinet type/Floor-type/Wall-mounted | |||
Photo Show
