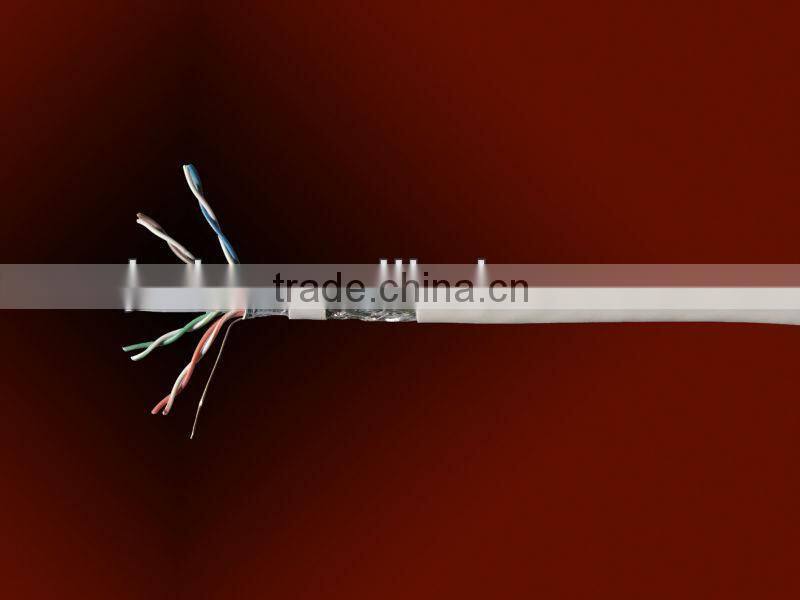

Low Price CAT6 SFTP LAN CABLE WITH CE & ROHS CERTIFICATION NETWORK CABLE
US$ 77.42 - 80.65
MOQ: 1000 Feet
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TIMSAH
Model Number:
CAT6 SFTP
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18 Gauge / 2 Conductor Parallel Wires Cables With PVC InsulationUS$ 30 - 40MOQ: 5000 Meters -
300V Parallel SPT-1 t5 Lamp Power CordUS$ 30 - 40MOQ: 5000 Meters
-
300V 18/2 SPT-1 100m Power Cord for Pendant LampUS$ 30 - 40MOQ: 5000 Meters
-
300V 18/2 SPT-1 100m Spool Hanging Lamp CordUS$ 30 - 40MOQ: 5000 Meters
-
Brown Parallel SPT-1 18awg *2C Outdoor Lamp CordUS$ 30 - 40MOQ: 5000 Meters
Place of Origin
Guangdong, China
Brand Name
TIMSAH
Model Number
CAT6 SFTP
Conductor Material
Copper
Insulation Material
PE
Jacket
PVC
Number of Conductors
4Pair
Application
Etherrnet,10 Base-T,100Base-T4,ATM,
Specifications
High quality lan cable cat6 SFTP1.Used for Etherrnet
nductor optional
3.New materials
4.OEM/ODM
Application
Frequency comes to 100MHz, supporting to digital, voice, data and video signal as well as apply to high requirement. Using in Building communication Cabling between workstation server and MDF as well as Residential Cabling System end user and MDF. Supporting to 10BASE-T, Integrated Services Digital Network, 100BASE-T4/TX (Fast Ethernet), 4/16Mbps Token Ring (IEEE802.5), 100Mbps TP-PMD, ATM52/155Mbps, TIA/EIA568B.2
Wire Specification
| Conductor | Insulator | Pair | Woven | Inner Shield | Jacket | ||||
| AWG | Spec. (mm) | Material | Thickness (NOM.mm) | Material | Thickness (NOM.mm) | Diameter (NOM.mm) | |||
| 26 | 1 / 0.404 | HDPE | 0.20 | 4P | TC or Al-Mg | Al / Mylar | PVC or LSNH | 0.60 | 5.8 |
| 7 / 0.16 | HDPE | 0.20 | 4P | TC or Al-Mg | Al / Mylar | PVC or LSNH | 0.60 | 6.2 | |
| 24 | 1 / 0.511 | HDPE | 0.20 | 4P | TC or Al-Mg | Al / Mylar | PVC or LSNH | 0.60 | 6.5 |
| 7 / 0.203 | HDPE | 0.20 | 4P | TC or Al-Mg | Al / Mylar | PVC or LSNH | 0.60 | 6.8 | |
Tested Standard
EPA3050B:1996 / EN1122:2001 / EPA3052:1996
EPA3060A/ EPA7196/ EPA3540C/ EPA8270C
EN 55022:2006+A1:2007 / EN61000-3-2:2600 / EN61000-3-3:2008 / EN55024:1998+A2:2003
CE & ROHS CERTIFICATION:
PACKING PICTURE:
