1.Product Description
Item: 18 Gauge / 2 Conductor parallel wires cables with PVC insulation.
Specifications:
Size:18AWG
No. of Conductors:2
Conductor Strand:41/34
Outside Diameter:2.72 x 5.330 mm / .107 x .210 inches
Weight: 0.022 lbs per ft
Standards:
UL Listed
CSA Certified
RoHS Compliant
Model: SPT-1.
- Cable Type: Loudspeaker cable
- Conduit: High Purity
- Gauge: 18AWG*2C
- Length: 100 m
- PVC color: White
- Used in lamps,small appliances,and radios.

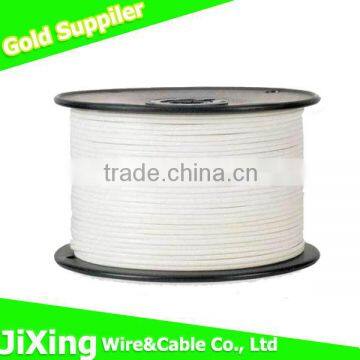

- Packaging: Rolled on Spool w/ PE wrap.
- Double Copper Wires

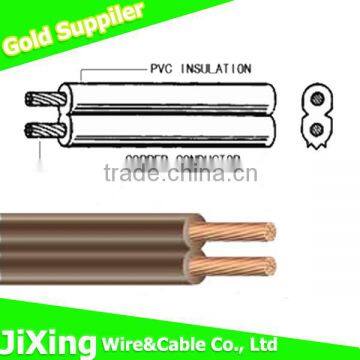

construction:
Conductors
99.999% Oxygen Free Copper conductors.
Tin plated copper,or CCA for your cables
Fully annealed bare or tinned copper per ASTM B-174
Insulation
Thermoplastic jacket
Premium-grade,color-coded PVC.
Temperature range: -20ºC to +60ºC
Colors:Black,white or brown
Quality Standard: CCC,CE,ROhs,SGS,ISO 9001,UL certifications.
Rated voltage:300V
Additional Features
Water-resistant.Sunlight-resistant.Designed to with stand severe environmental conditions.Withstands exposure to oil,acids,alkalies,heat,flame,moisture and chemicals.Meets or exceeds flame test requirements of MSHA,CSA and UL.
Small enough to fit along skirting boards or under carpets
Any gauges and specifications available
Convenient and practical design
Well resistance to oil,acid-base,and friction
Perfect winding technology
High purity,high conductivity
Long service life
Applications:
Used in lamps,small appliances,radios and Jukeboxes.
Technical Parameter:
UL style & C-UL |
No. of Core |
conductor |
insulation |
jacket |
Amp. Rating |
|||
AWG |
Sectional Area (mm2) |
Nom. Thick (mm) |
Nom. Dia (mm) |
Nom. Thick (mm) |
Nom. Dia (mm) |
|||
SPT-1W |
2 |
18 |
0.82 |
- |
- |
0.38 |
2.7×5.35 |
10A |
3 |
18 |
0.82 |
0.76 |
2.15 |
0.38 |
3.0×8.7 |
10A |
|
SPT-2W |
2 |
18 |
0.82 |
- |
- |
1.14 |
3.5×6.9 |
10A |
2 |
16 |
1.31 |
- |
- |
1.14 |
3.9×7.4 |
13A |
|
3 |
18 |
0.82 |
0.38 |
2.15 |
1.14 |
3.7×8.7 |
10A |
|
3 |
16 |
1.31 |
3.38 |
2.4 |
1.14 |
3.9×9.2 |
13A |
|
SPT-3W |
2 |
18 |
0.82 |
- |
- |
1.52 |
4.2×8.4 |
10A |
2 |
16 |
1.31 |
- |
- |
1.52 |
4.5×9.0 |
13A |
|
2 |
14 |
2.08 |
- |
- |
2.03 |
5.8×12.0 |
15A |
|
2 |
12 |
3.31 |
- |
- |
2.41 |
7.0×14.0 |
20A |
|
3 |
18 |
0.82 |
0.38 |
2.15 |
1.52 |
4.3×11.4 |
10A |
|
3 |
16 |
1.31 |
0.38 |
2.4 |
1.52 |
4.5×12.2 |
13A |
|
3 |
14 |
2.08 |
0.38 |
2.8 |
2.03 |
5.8×14.8 |
15A |
|
3 |
12 |
3.31 |
0.38 |
3.35 |
2.14 |
7.0×16.8 |
20A |
|
Package:
Packed in reel
Packed in Plastic film
100m per roll
or according to your requirement
2.Our factory:
company profile:
Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.
3.Our equipment:
4.Our electric cable and wire:
0.6/1KV PVC,XLPE insulated armored power cable
Environment-friendly LSZH(low smoke halogen free) cable
Flame retardant cable
Branching wire
aluminum cable
Welding cable
Internet Lan cable
control cable
THHN,THW etc UL America standard cable
CCA cable
We can also providing customizing service according to your requirement,your specificantions and sample.
5.Our Certifications:
6.Our customers:
7.Construction Case
" Nanchang star" Ferris wheel located in Jiangxi Province, Nanchang City: Hongjiaozhou Ganjiang River on the edge of the Ganjiang citizen Park, is currently the world's second highest Ferris wheel, Nanchang City landmark building. The ferris wheel of total height of 160 meters, a diameter of 153 meters, is located on the Thames River is 135 metres tall" London Eye Ferris wheel" is even higher, become the world's second high Ferris wheel. It has 60 capsules, each capsule can accommodate 6 visitors and 8 cabin configuration, LCD TV, air conditioning, per hour will can accommodate nearly 1000" air" rotating at nanchang. It rotates one cycle takes about 30 minutes, at 160 meters above the ground overlooking the earth, Nanchang landscape panoramic view, the kind of excitement and novelty is the ground could not enjoy.
