RVS copper conductor PVC insulated twisted pair cable price
1.ITEM DESCRIPTION:
Name: RVS copper conductor PVC insulated twisted pair cable price.
Twisted pair cabling is a type of wiring in which two conductors of a single circuit are twisted together for the purposes of canceling out electromagnetic interference (EMI) from external sources; for instance, electromagnetic radiation from unshielded twisted pair (UTP) cables, and crosstalk between neighboring pairs.
Model:RVS

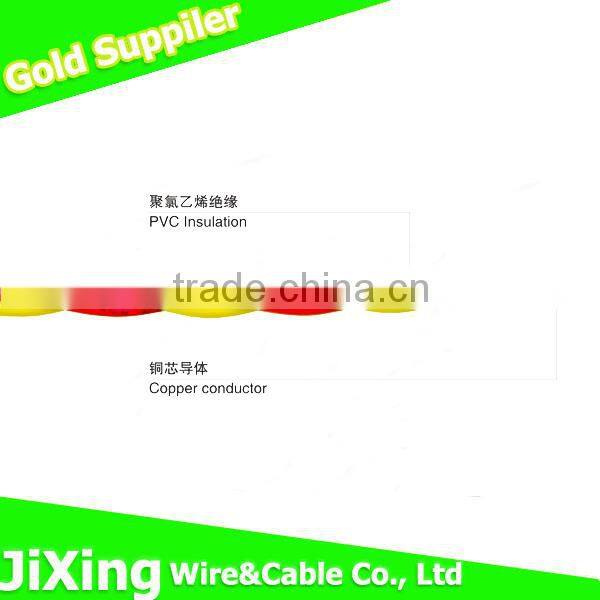

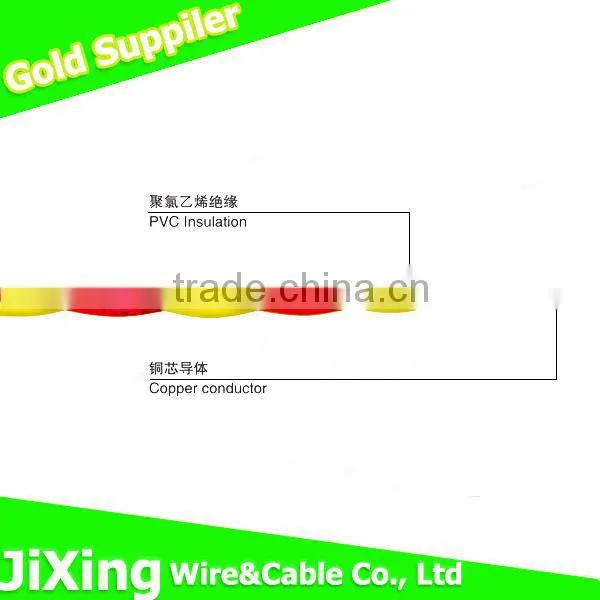

Construction:
RVS
conductor:single solid copper wire or multi-core stranded copper wire
Insulation&sheath:PVC
Specification:
number of cores*section-area of each core(sq mm)
2×0.50, 2×0.75,2×1,2×1.5,2×2.5,2×4,2×6.
Application:
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less.
Service Conditions
Working temperature:Not more than 70oC.
Technical data
PVC insulated PVC sheathed flat wire
Type |
Name |
Properties |
RVS |
RVS double color dual core PVC insulated Twisted Pair Cable |
In normal case, max. temperature of conductor shall be 70℃ |
Technical data (RVS)
| Norminal Cross-section(mm²) | Number of wires | Average outer diameter(mm) | Condctor resistance at 20 ℃( ≤ Ω.km) | Ampacity(A) | Weight(kg/km) |
| 2*0.5 | 2*28 | 6 |
39 | 9.5 | 24 |
| 2*0.75 | 2*42 | 6.2 | 26 | 12.5 | 31 |
| 2*1 | 2*56 | 6.5 | 19.5 | 15 | 33.6 |
| 2*1.5 | 2*84 | 7.5 | 13.3 | 19 | 42.6 |
| 2*2.5 | 2*133 | 8.5 | 7.98 | 26 | 68 |
| 2*4 | 2*140 | 10.1 | 4.95 | 36 | 100 |
| 2*6 | 2*210 | 12.4 | 3.3 | 47 | 144 |

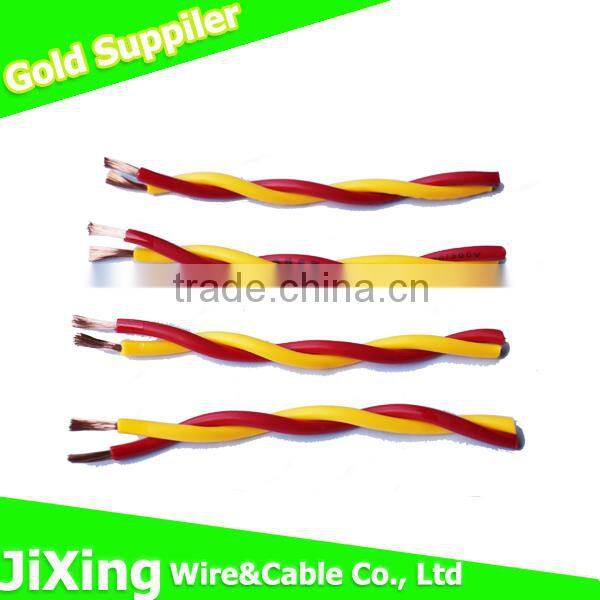

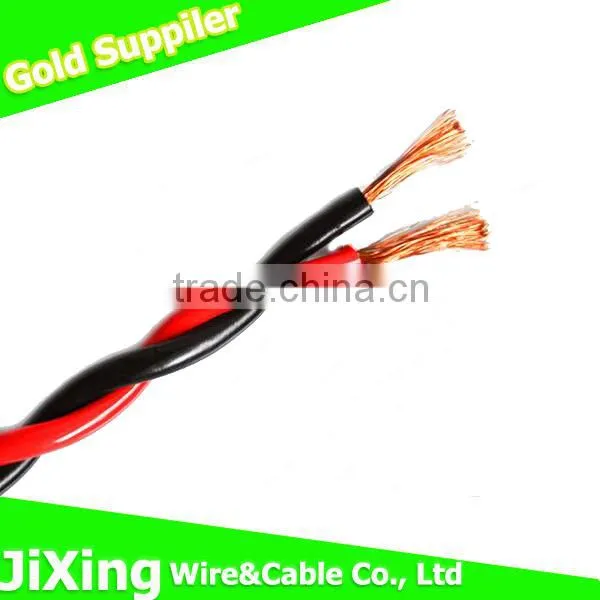

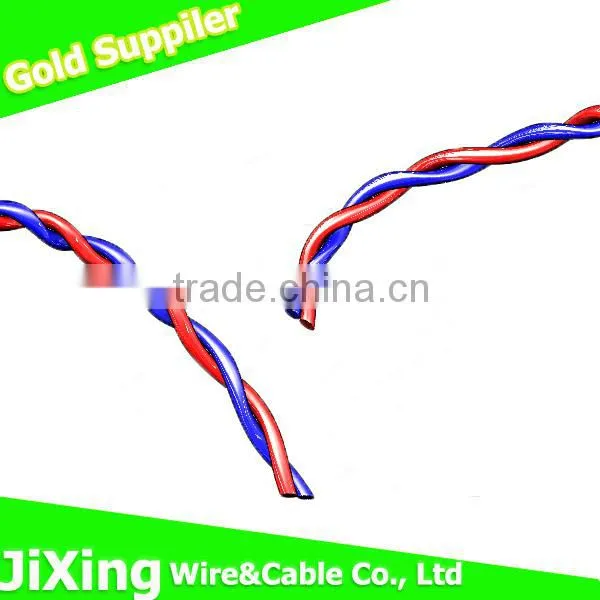

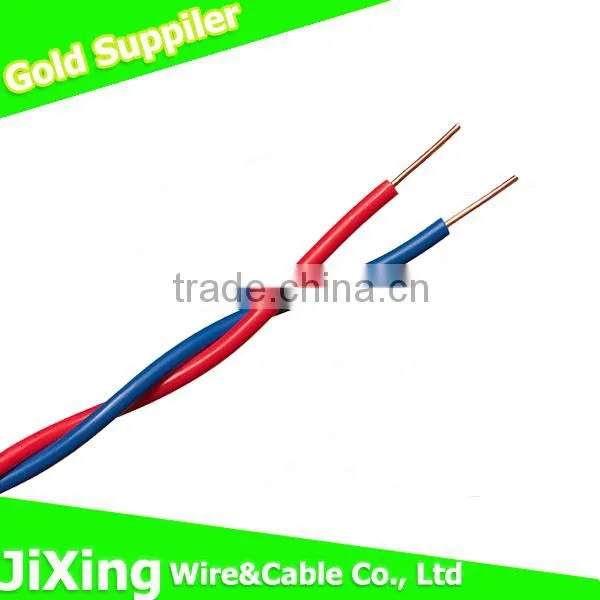

Pictures Of different Specifications
2.Our factory:
company profile:
Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.
3.Our equipment:
4.Our electric cable and wire:
0.6/1KV PVC,XLPE insulated armored power cable
Environment-friendly LSZH(low smoke halogen free) cable
Flame retardant cable
Branching wire
aluminum cable
Welding cable
Internet Lan cable
control cable
THHN,THW etc UL America standard cable
CCA cable
We can also providing customizing service according to your requirement,your specificantions and sample.
5.Our Certifications:
6.Our customers:
7.Construction Case
Shenzhen Longgang Grand Canal Center Stadium
8.Our Package
9.Contract with me:
Austin
Skype:Austin Electric Cable
Wechat/whatsapp:18879133952
QQ:1795002689
Tel:13528477143
