Home > Products > roll cable > 2.5 mm copper wire pvc insulation and sheath

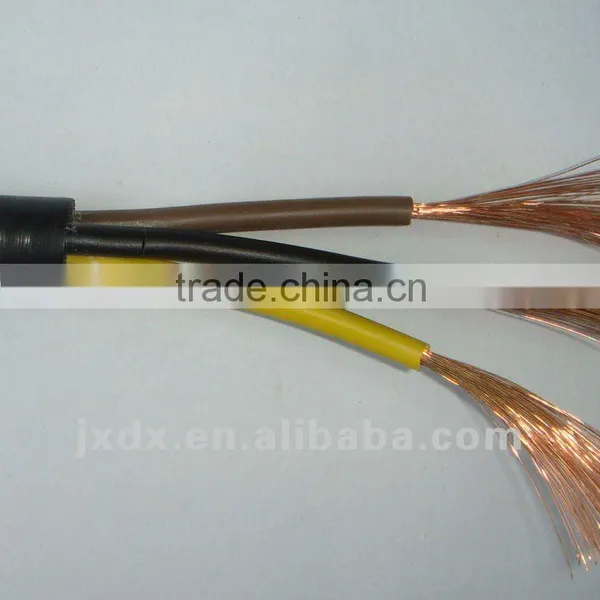

2.5 mm copper wire pvc insulation and sheath
- 800000 Meter / Meters per Month
- Shenzhen
- T/T
- AY A108 Laser Radar FPC Cable Solves iPhone Camera Lag Problem
- 2.5/4/6mm red black solar cable 1500V DC solar cable awg PV solar panel cable
- New Design 4mm 6mm 10mm Tinned Copper Conductor DC Photovoltaic Solar pv Cable
- 2.5mm 4mm solar dc wire pv electric cable 6mm2 solar panel power cable H1Z2Z2-K photovoltaic solar extension wire
- electric power solar extension cable 6mm2 solar cable 4mm 10mm 16mm dc pv wire h1z2z2-k solar panel photovoltaic electric cable
- TUV pv solar cable Red 6mm PV1-F for solar panel collecting cable electric solar cable wire
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Yongkuntai Tianxiang | Model Number: | RVV |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Other, three core power cord for household appliances,i.e.conditioner,etc. |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Specifications
1)Use for home applicances2)High pure copper
3)Price 10% lower than others
4)Manufacturer in Shenzhen
Specification
1)Rated Voltage: 300/500V
2)Rated temperature:0°C to 70 °C
3)Standard: GB, IEC. etc.
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)
7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey
8)Sheath:PVC (polyvinyl chloride) Color:black(white,orange,grey available)
9)Certification: CCC,CE,RoHS
10)20 years manufacturing experience
11)Specialized in electric/electrical appliances,lighting,construction,home applicances
12)Customer wire cable
13)Stock available, free sample
14)Small profits, quick returns
15)High quality and competitive price
16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery
More Products:R Series
Model | Rated Voltage | Name | Application | Rated Temperature |
60227IEC02 RV | 450/750V | Copper conductor PVC insulated flexible battery cable (electrical wire)
| Mainly used at middle and light style moving electronics, instrument,home appliances,industrial machine,power and lighting and the places where flexible required
| 0°C to +70°C
|
60227IEC06 RV | 300/500V | |||
60227IEC42 RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire)
| ||
RVS
| 300/300V | Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | ||
60227IEC52 RVV | 300/300V | Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
60227IEC53 RVV | 300/500V |

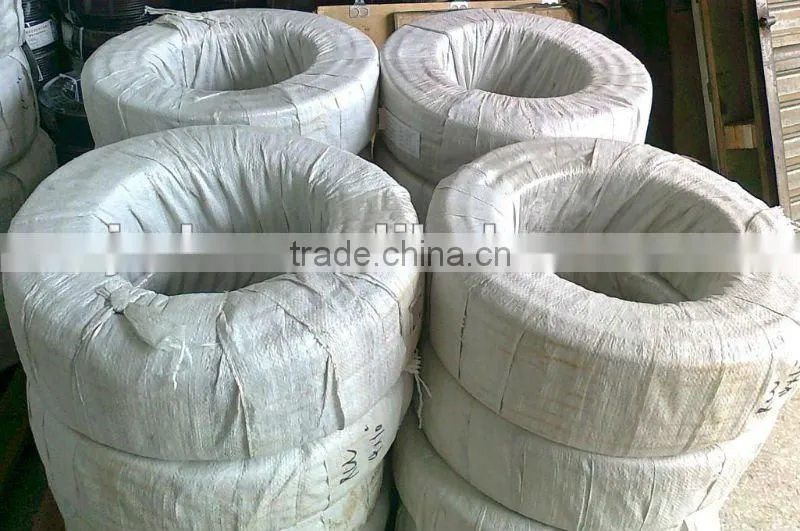

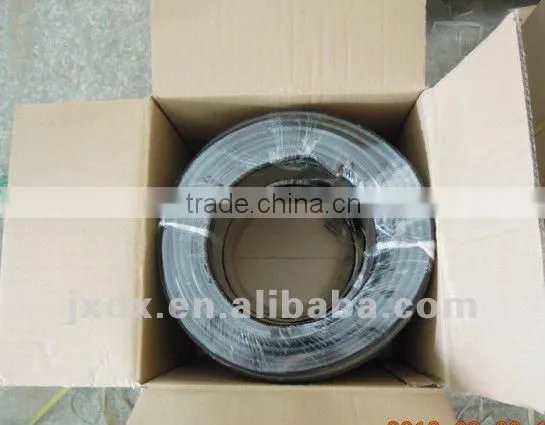

Packing
Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag
We have the following sizes in stock,small quantity is welcome.
Model and Specification | Usage |
RVV 3×0.5mm² | For lighting as well as light duty appliances |
RVV 3×0.75mm² | |
RVV 3×1mm² | |
RVV 3×1.5mm² | |
RVV 3×2.5mm² | |
RVV 3×4mm² | 1.For power transfer from electrical pole to house mains 2.To connect heavy electrical appliances like stoves, conditionerand heave machinery. |
RVV 3×6mm² | |
RVV 3×10mm² |
*Kindly note that also we can make cables and wires according to your required specification.
