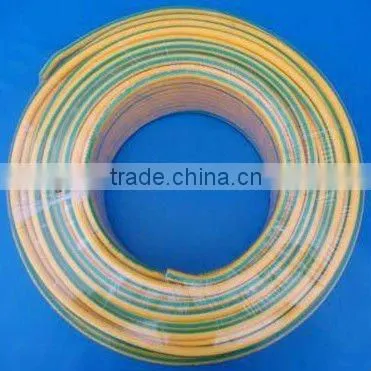

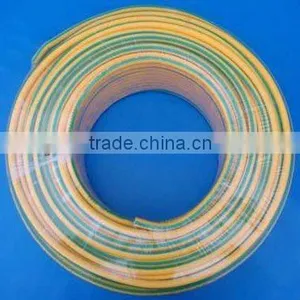

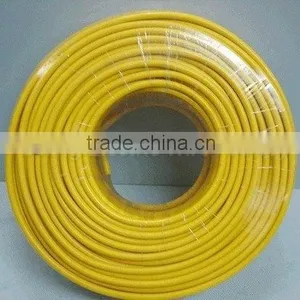

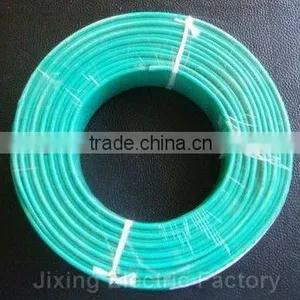

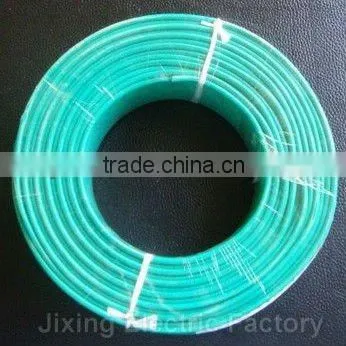

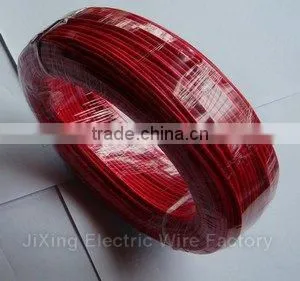

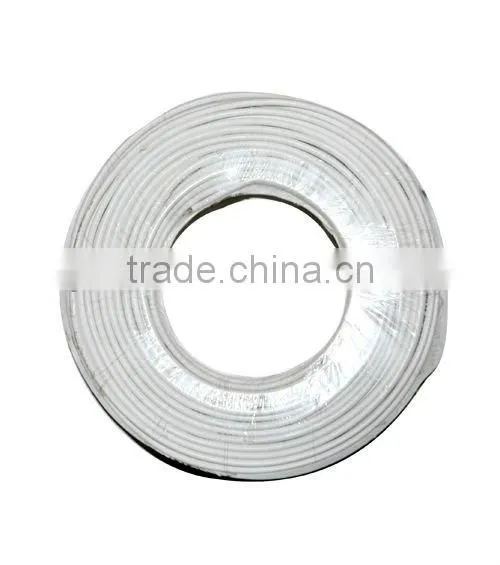

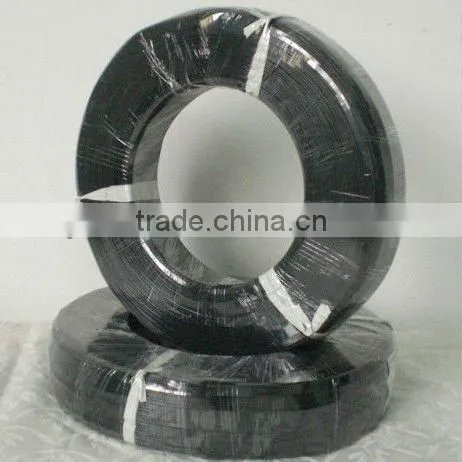

Help Center35mm Wire Stranded Wire High Quality
Related Products
-
Multi Strand Electrical WireUS$ 0.32 - 2MOQ: 2 Kilometers -
2.5mm Electric Wire RollUS$ 0.2 - 1MOQ: 5000 Meters
-
Medium Voltage Thin Insulated Copper Wire for House WiringUS$ 0.24 - 0.27MOQ: 5000 Meters
-
Multi Strand Electrical WireUS$ 0.32 - 2MOQ: 2 Kilometers
-
450V Electric Wire With XLPE InsulationUS$ 0.32 - 0.35MOQ: 2 Kilometers
Specifications
1)Use for electric wiring2)pvc copper wire
3)electrical cable price
4)single core cable
5)hot sale in Africa
BV Structure
BV in stock
The following specifications are in stock,small quantity is welcome.
Name |
Usage |
Specification |
|
450/750V Copper conductor PVC insulated rigid cable (electrical wire)
|
Building and construction, instrument |
BV 1.5mm² |
BV 2.5mm² | ||
BV 4mm² | ||
BV 6mm² | ||
BV 10mm² | ||
BV 16mm² | ||
BV 25mm² | ||
BV 35mm² | ||
BV 50mm² | ||
BV 70mm² | ||
BV 95mm² | ||
BV 120mm² | ||
BV 150mm² | ||
BV 185mm² |
BV 1.5mm² ( 1 pcs of copper wire)
BV 2.5mm² ( 1 pcs of copper wire)
BV 4mm² ( 1 pcs of copper wire)
BV 6mm² ( 1 pcs of copper wire)
BV 10mm² (7 pcs of copper wires)
BV 16mm² (7 pcs of copper wires)
BV 25mm² (7 pcs of copper wires)
BV 35mm² (7 pcs of copper wires)
BV 50mm² (19 pcs of copper wires)
BV 70mm² (19 pcs of copper wires)
BV 95mm² (19 pcs of copper wires)
BV 120mm² (37 pcs of copper wires)
BV 150mm² (37 pcs of copper wires)
BV 185mm² (37 pcs of copper wires)
Our stock house

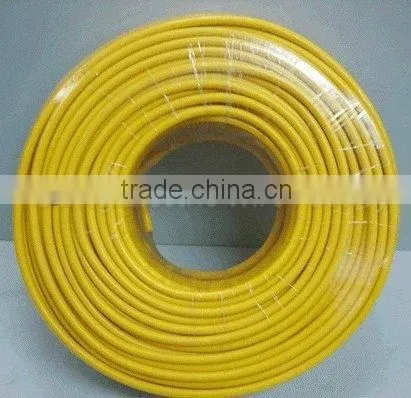

Packing--(size from BV1.5mm² to BV16mm² )
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
Packing--(size above BV25mm²)
Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag
Option3-plywood reel
All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV
|
Code Designation by IEC |
Code Designation by GB |
Rated Voltage |
Name |
Application |
Rated Temperature |
60227 IEC 01 |
BV |
300/500V |
Copper conductor PVC insulated rigid cable (electrical wire) |
Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 |
BV |
450/750V |
|||
|
BLV |
450/750V |
Aluminum conductor PVC insulated rigid cable (electrical wire) |
||
|
BVR |
450/750V |
Copper conductor PVC insulated semi-flexible cable (electrical wire) |
Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 |
BVV |
300/500V |
Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
|
|
BLVV |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) |
||
|
BVVB |
300/500V
|
Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
|
BLVVB |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
60227 IEC 02 |
RV |
450/750V
|
Copper conductor PVC insulated flexible connector cable (electrical wire) |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 |
RV |
300/500V |
|||
60227 IEC 42 |
RVB |
300/300V |
Copper conductor PVC insulated flat flexible connector cable (electrical wire) |
||
|
RVS |
300/300V
|
Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
||
|
60227 IEC 52
|
RVV |
300/300V
|
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
||
60227 IEC 53 |
RVV |
300/500V |
Noted:BV / BVR difference: BV for the single-strand wire, BVR for the multi-strand wire, price for BVR more than about 3% of BV.
Testing Machine
Our factory
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
