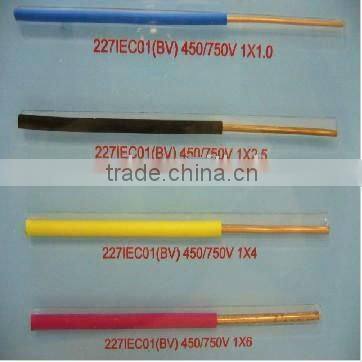

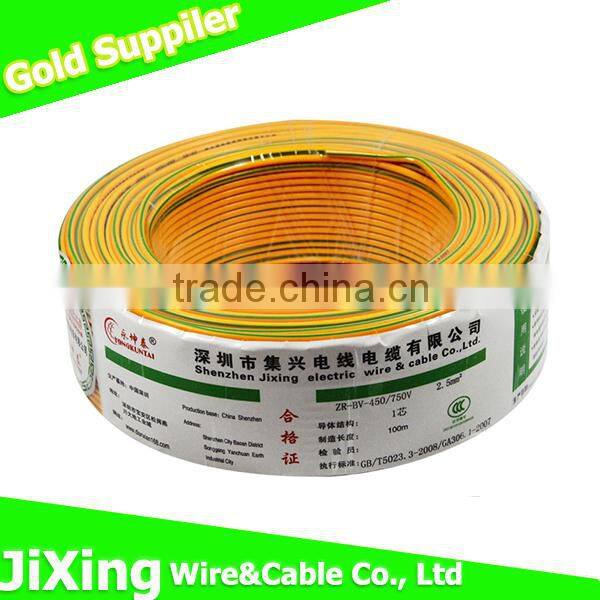

Pvc Insulate bv 1.5mm2 16 Awg Solid Copper Electrical Wire Cable

 pvc insulate bv 1.5mm2 16 awg solid copper electrical wire cable

Model:bv 16 awg solid copper wire

PVC Insuated building wire :

Fire-resistant cable, This kind of product can realize operation in a certain period of time under the conditions of flame combustion,which can apply to  the places with flammable, fire-fighting equipments.

Rated voltage U0/U:450/750V

Long-time working temperature should be lower than 70°C,the working temperature of type BV-105 should be lower than 105°C

The temperature of fixed wiring  cable should be higher than 0°C,allowed bending radius:

When cable outer diameter (D)

When cable outer diameter (D)≥25m,the bending radius should be≥6D.

PVC insulared flexible wire:

Rated voltage U0/U:450/750V,300/500V,300/300V

The products are suitable for household electrical appliances, small electric power tools,  AC rated voltage up to and including 450/750V,  and below the small household electrical appliances, electric tools, instruments and apparatuses and lighting devices, which is used for connecting power line.

Long-time working temperature should be lower than 70°C,the working temperature of type RV-105 should be lower than 105°C

Packing:

 Our factory:

Company has the most advanced testing equipment and production equipement,quality has reached the national and industry standards

Our customer:

Certification:

Jixing Cables:

1  Bare Conductor, Bare Copper Rod, Bare Aluminum Rod.

2  450/750V and below PVC Insulated Electrical Wires and Power Cables.

3  450/750V XLPE (Cross linked polyethylene) Insulated Electrical Wires and Power Cables.

4  0.6/1kV PVC Insulated Power Cables.

5  0.6/1kV XLPE (Cross linked polyethylene) Insulated Power Cables.

6  450/750V and below Control Cables.

7  1kV Aerial Bundled Cables.

   Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH (Low Smoking Zero Halogen) Cables, RoHs Cables, and Environmental Protection Cables.
